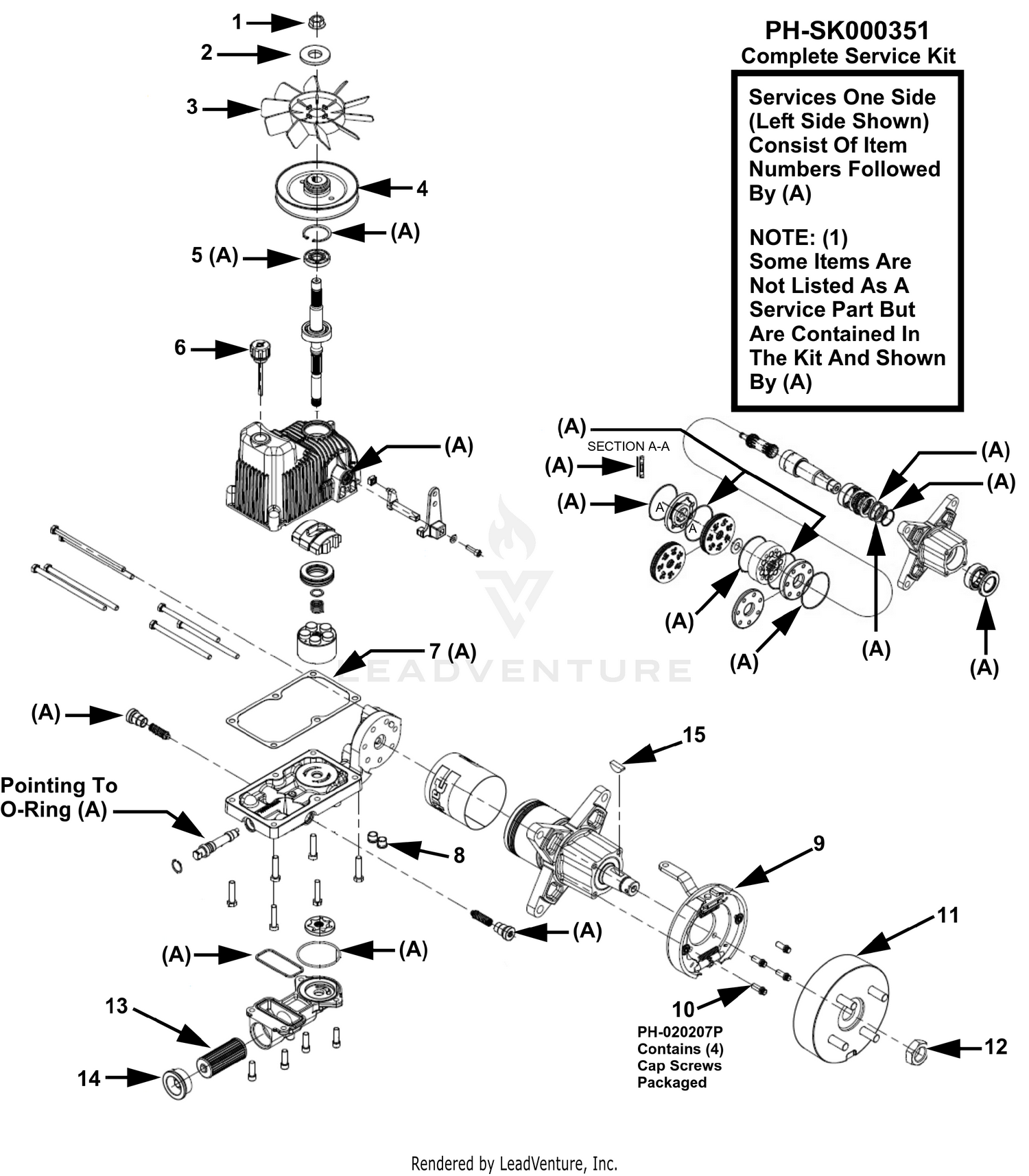

Transmission (LH)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | PH-025167 | NUT-FLANGE 1/2-20 Price: $9.29 |
| 2 | PH-028036 | FAN SPACER Price: $11.74 |
| 3 | PH-420004 | FAN-7" Price: $74.51 |
| 4 | PH-403859 | PULLEY (SPLINED) Price: $102.74 |
| 5 | PH-478003 | SEAL Price: $32.48 |
| 6 | PH-411157 | BREATHER This part replaces PH-411134. Price: $101.98 |
| 7 | PH-034010 | GASKET Price: $40.58 |
| 8 | PH-036023-006 | PLUG-MAGNETIC HEX Price: $51.97 |
| 9 | PH-490169 | BRAKE ASSEMBLY-ON HOLE LEVER Price: $394.55 |
| 10 | PH-020207P | SCREW-CAP (QTY 4) Price: $9.29 |
| 11 | PH-490218 | DRUM-4 BOLT BRAKE Price: $361.33 |
| 12 | PH-025126 | LOCK NUT - 1-20 Price: $16.62 |
| 13 | PH-411154 | FILTER Price: $61.35 |
| 14 | PH-036325 | PLUG & O-RING ASSE Price: $55.87 |
| 15 | PH-038016 | WOODRUFF KEY Price: $8.03 |
| 16 | PH-420104 | ROTATING BRACKET Price: $14.82 |
