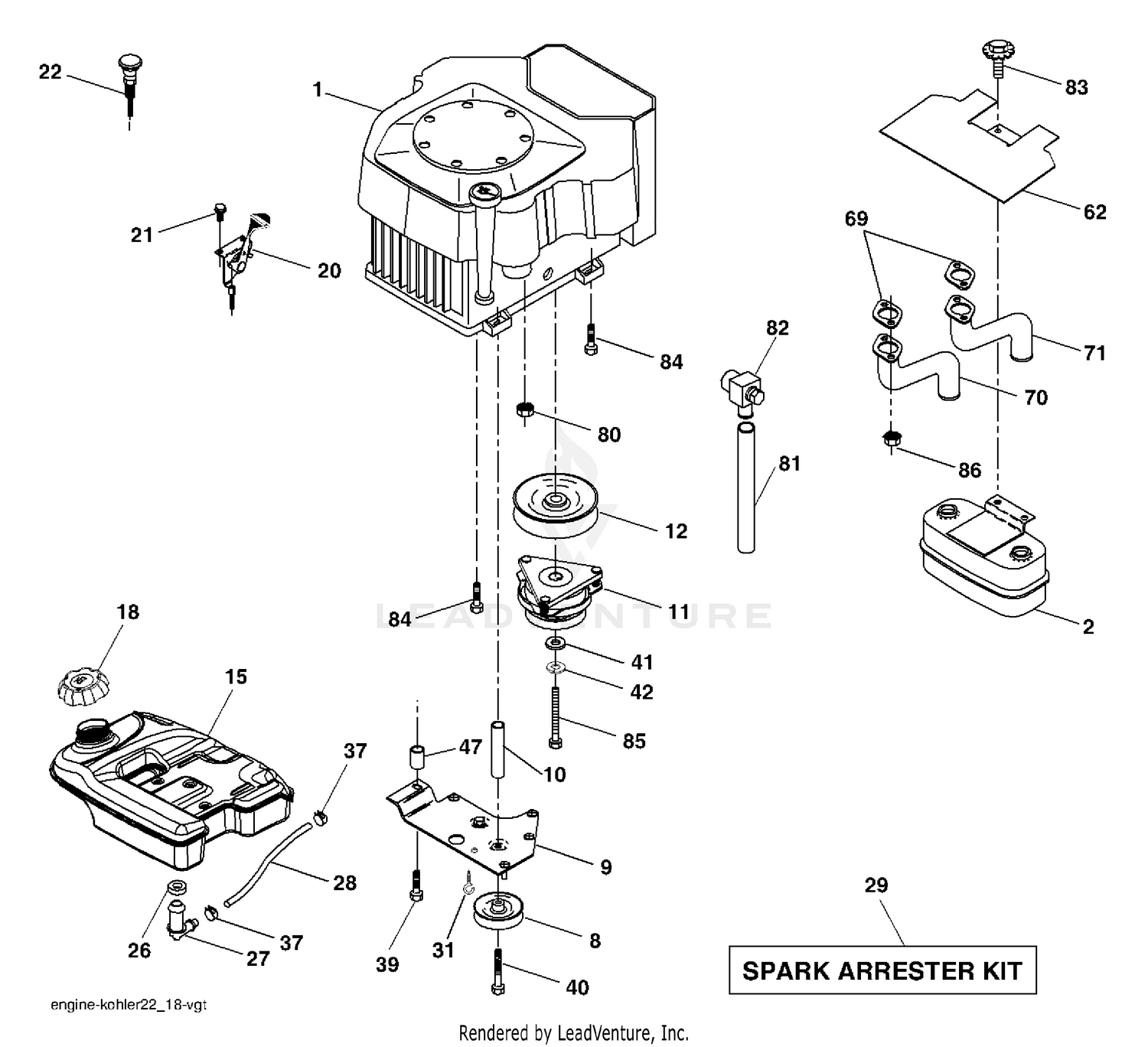

| Ref | Part Number | Description |
|---|
| 1 |
232-24 |
STEM-VALVE Price: $4.03 |
| 2 |
28-3680 |
TIRE Price: $118.18 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
217-60 |
RIM Price: $110.16 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 6 |
10-6850 |
DRUM-BRAKE Price: $54.08 |
| 7 |
70-9880 |
SPRING-RETURN Price: $11.81 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 8 |
70-9840 |
SHOE-BRAKE Price: $60.36 |
| 9 |
325-11 |
SCREW-HH Price: $1.93 |
| 9 |
532171748 |
Keeper Asm. Belt Engine VGT Price: Call Us |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 10 |
70-9870 |
PLATE-BACKING Price: $183.14 |
| 11 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000. Price: $8.08 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 13 |
237-80 |
O-RING Price: $6.10 |
| 14 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 15 |
237-65 |
O-RING Price: $2.50 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 16 |
32108-100 |
SCREW-FH Price: $3.02 |
| 17 |
321-11 |
SCREW-HH Price: $0.36 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 18 |
83-0190-01 |
COVER-RH This part replaces 83-0190. Price: $32.81 |
| 19 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
57-6140 |
CLAMP-TUBE, HALF Price: $5.16 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 21 |
83-1220 |
PLATE-CLAMP Price: $19.06 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 22 |
92-9199 |
MOTOR-WHEEL, HYD Price: $923.71 |
| 23 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9850. Price: $42.42 |
| 24 |
93-2096 |
LEVER-BRAKE This part replaces 71-1510. Price: $89.45 |
| 25 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 26 |
321-5 |
SCREW-HH Price: $0.22 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9860. Price: $42.42 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 28 |
85-6540 |
STUD-DRIVE Price: $7.41 |
| 29 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 31 |
321-4 |
SCREW-HH Price: $0.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 32 |
32128-33 |
NUT-HF Price: $0.25 |
| 33 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 34 |
83-2450 |
HOSE ASSY - HYD Price: $164.30 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
532175545 |
TUBE EXHAUST LH Price: $68.99 |
| 71 |
532175546 |
TUBE.EXHAUST.LV675.COMMAND.RH Price: $59.99 |
| 80 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 81 |
532188800 |
TUBE, DRAIN, OIL Price: $2.99 |
| 82 |
532188799 |
VALVE.OIL.DRAIN.GT Price: $45.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
