Home / OPE / Gravely Zero Turn / Promaster 200 / 992321 (000101 - 002000) 31HP - 72" Deck / Engine - Diesel

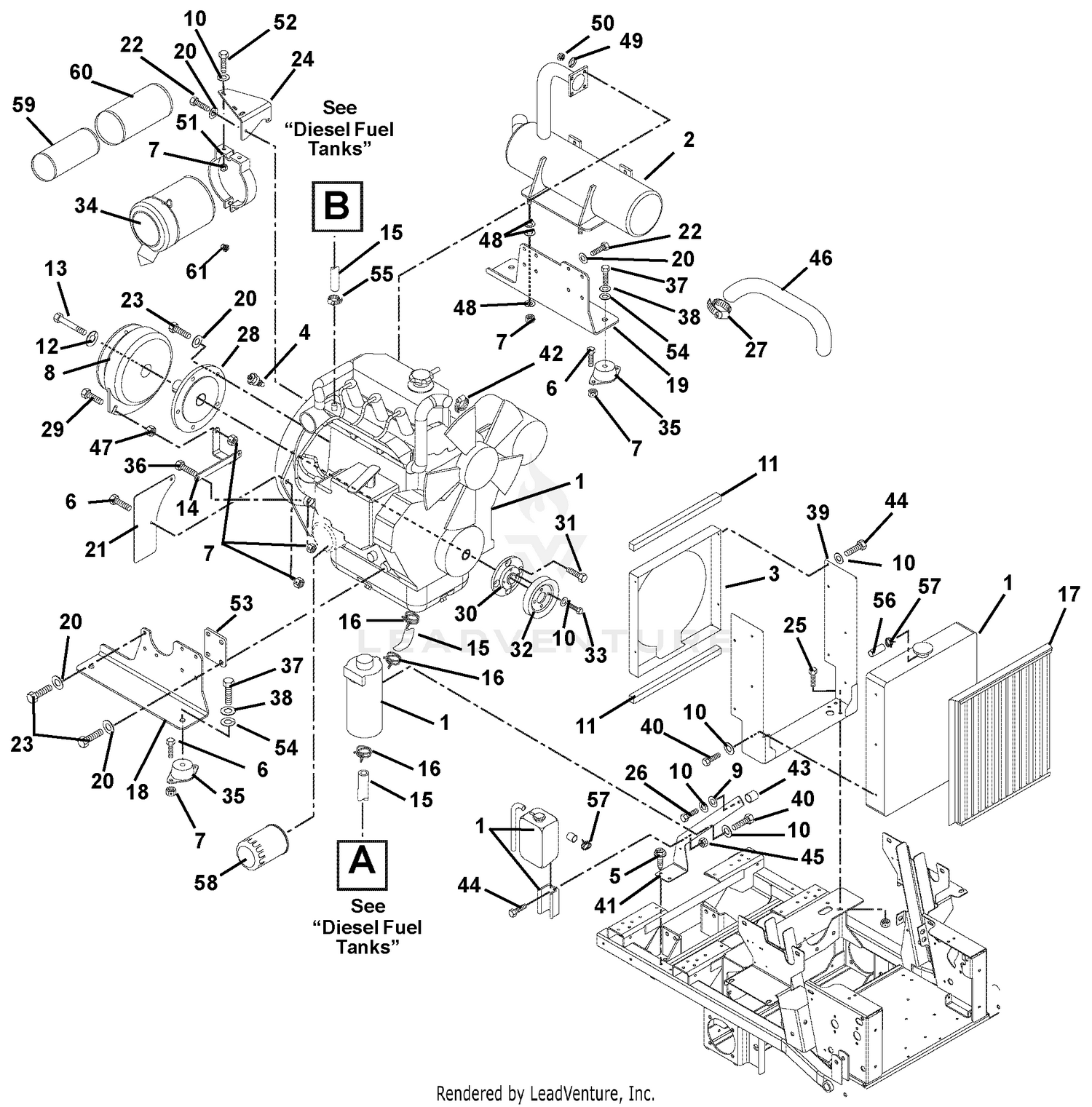

Engine - Diesel

Engine - Diesel

Parts (56)

RefPart NumberDescription
NS 59205200 KIT,BRAKE POLE MODULE REPLACE Price: $94.40
3 09266851 WMT, RADIATOR SHROUD Price: $62.45
4 09263300 SENDER, TEMPERATURE Price: $50.45
5 07400129 SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45
6 05901704 BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45
7 06500904 NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95
8 00389900 CLUTCH, ELE-W/HI TEMP GREASE Price: $389.95
9 06401001 WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45
10 06401009 WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45
11 00929000 SEAL, TRIM-LOK BULK .06 BBL 1' Price: $0.95
12 06300121 WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45
13 05964600 BLT-HEX .44-20X2.50 GR5 YWZC Price: $2.95
14 09264551 STABILIZER, CLUTCH Price: $19.45
15 00922600 HOSE,5/16 ID Price: $0.75
16 06947900 CLAMP, HOSE WIRE .520/.550 Price: $3.45
17 09265400 SCREEN, RADIATOR (DIESEL) Price: $112.45
18 09265251 MOUNT, ENGINE RH (DIESEL) Price: $72.55
19 09265351 MOUNT, ENGINE LH (DIESEL) Price: $74.45
20 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
21 09273851 GUARD, FLYWHEEL Price: $6.45
22 05901628 BLT, HEX M8-1.25X20 G8.8 ZCC This part replaces 05973300. Price: $1.45
23 05964900 BLT, HEX M8-1.25X25 GR8.8YWZC Price: $2.45
24 09295051 BRKT, AIR CLEANER - BLACK Price: $74.45
25 05901711 BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45
27 06934700 CLAMP, HOSE #32 (1.56"-2.50") This part replaces 06900005. Price: $3.45
28 00447200 SHAFT, STUB (BRIGGS-DIESEL) This part replaces 09295300. Price: $217.65
29 05901710 BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45
30 09265600 ADAPTER, SHEAVE (DIESEL) Price: $86.45
31 05978700 BLT, FSCHS M8-1.25X25 Price: $3.20
32 07328100 SHEAVE, POLY V 1.000 X 3.25 Price: $69.95
33 05901716 BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95
34 03782600 CLEANER, AIR This part replaces 09257500. Price: $140.45
35 05034800 MOUNT, ENGINE, VIBRATION ISO Price: $23.45
36 05901701 BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45
37 05975000 BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45
38 06300115 WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95
39 09265851 WMT, RADIATOR MOUNTING BKRT Price: $80.95
40 05902026 BLT, HEX M6-1X16 G8.8 ZCC This part replaces 05975900. Price: $0.95
41 09278651 BRKT, OVERFLOW MOUNTING - BLK Price: $40.95
42 06922200 CLAMP-HOSE 1.50X.81X1.42 Price: $5.45
43 09235400 SPACER .328 X .76 X 1.01 Price: $18.45
44 05901716 BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95
45 06500903 NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95
47 06500938 NUT, HEX .312-18 ZCC This part replaces 06529200. Price: $0.95
48 06401023 WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45
49 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
50 06538600 NUT-HEX M8-1.25 YWZC Price: $1.95
51 09257600 BRACKET, AIR CLEANER MOUNT Price: $78.45
52 06401023 WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45
53 09277251 SPACER, ENGINE MTG (DIESEL) Price: $5.45
54 06401015 WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95
55 06948200 CLAMP, HOSE, IDEAL 6202 SIZE 4 Price: Call Us
57 06939100 CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45
58 21539000 FILTER, OIL Price: $17.95
59 21536900 ELEMENT, INNER SAFETY Price: $25.45
60 21537000 ELEMENT, OUTER PRIMARY Price: $32.95
