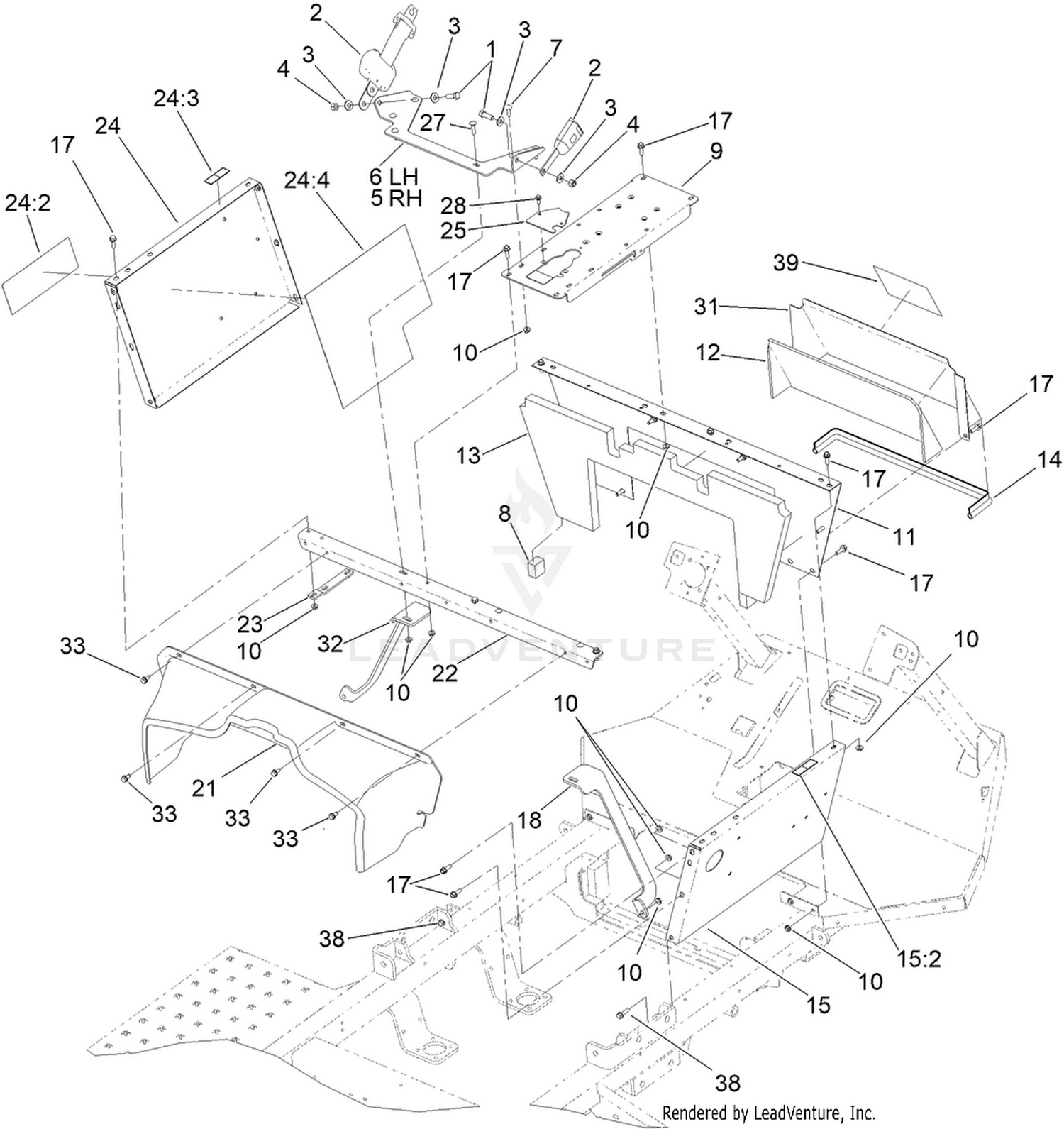

| Ref | Part Number | Description |
|---|
| 1 |
324-5 |
SCREW-HH Price: $0.54 |
| 2 |
110-0413 |
SEATBELT-RETRACTABLE Price: $286.99 |
| 3 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 4 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 5 |
121-5071-03 |
BRACKET-SEAT BELT, RH Price: $50.85 |
| 6 |
121-5072-03 |
BRACKET-SEAT BELT, LH Price: $50.85 |
| 7 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 8 |
144-6168 |
STRIP-FOAM, NOISE BARRIER Price: $6.72 |
| 9 |
132-7667-03 |
BASE-CONSOLE Price: $126.04 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 11 |
130-7107-01 |
PANEL-FRONT, SEATBASE Price: $70.65 |
| 12 |
130-7132 |
BARRIER-NOISE, ACCESS PANEL Price: $23.23 |
| 13 |
144-6240 |
BARRIER - NOISE, FRONT PANEL Price: $69.14 |
| 14 |
131-3282 |
TRIM Price: $30.54 |
| 15 |
130-7104 |
PANEL-SEATBASE, RH Price: $87.43 |
| 17 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 18 |
107-8729-0P |
SUPPORT-RH Price: $66.58 |
| 21 |
132-7660 |
COVER-ENGINE Price: $311.44 |
| 22 |
119-5025-0P |
ANGLE-SEAT BOX Price: $62.58 |
| 23 |
95-2264-03 |
STRAP-SUPPORT, BELT This part replaces 95-2264. Price: $31.02 |
| 24 |
131-5788 |
LH SEAT BOX PANEL ASM Price: $156.06 |
| 25 |
132-7705-03 |
RETAINER-HARNESS, BASE Price: $10.99 |
| 27 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 28 |
119-4012 |
SCREW-HWHTF Price: $0.61 |
| 31 |
130-7119-01 |
PANEL-ACCESS, SEATBASE Price: $48.14 |
| 32 |
107-8730-0P |
SUPPORT-LH Price: $66.58 |
| 33 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 38 |
3234-36 |
SCREW-HHF Price: $0.75 |
