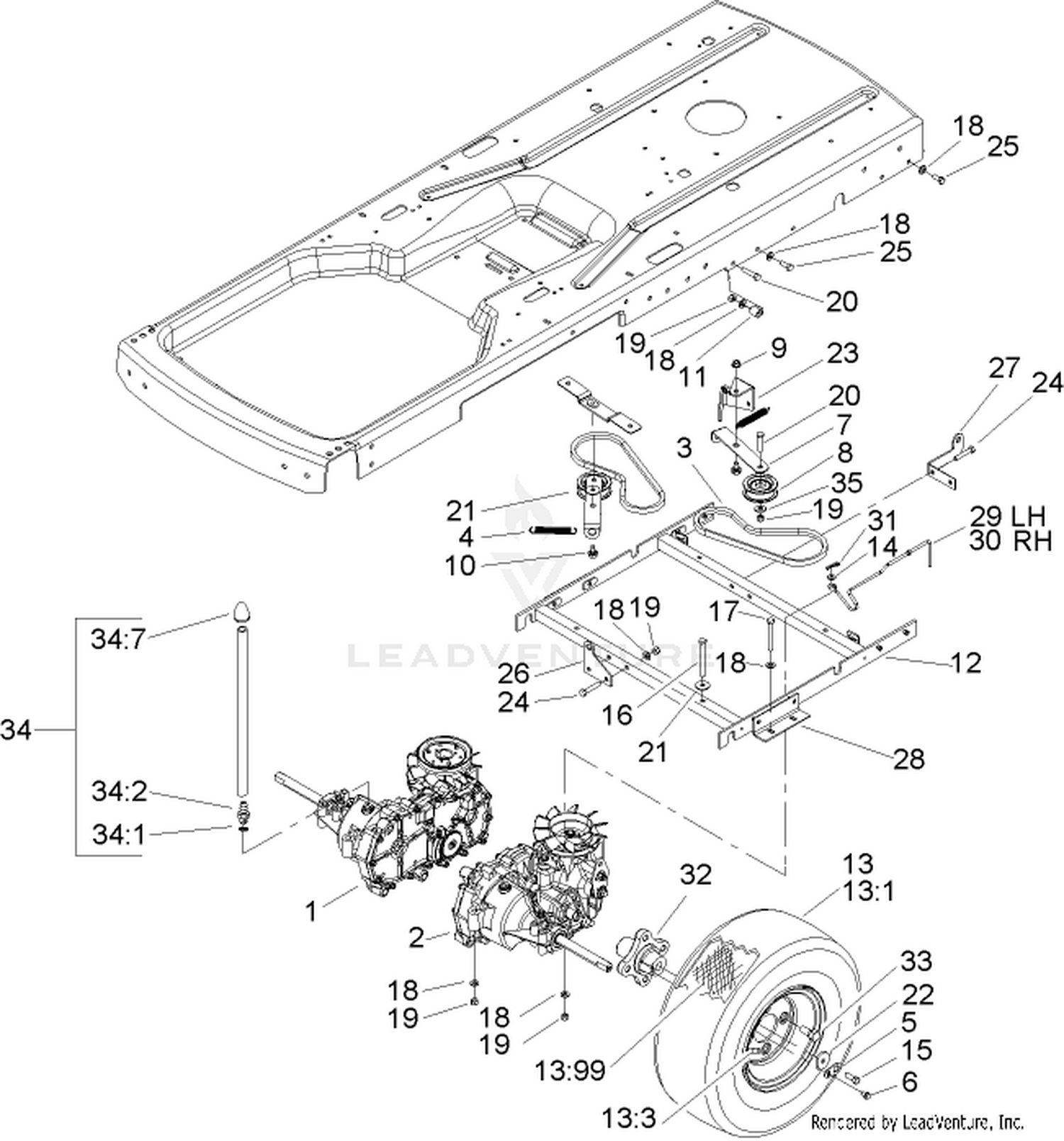

| Ref | Part Number | Description |
|---|
| 1 |
114-8520 |
KIT-TRANSAXLE, RH This part replaces 107-2466. Price: $1,265.89 |
| 2 |
114-8521 |
KIT-TRANSAXLE, LH This part replaces 107-2465. Price: $1,265.89 |
| 3 |
106-2174 |
V-BELT Price: $18.59 |
| 4 |
95-3805 |
SPRING Price: $13.99 |
| 5 |
105-3438 |
TAB-LOCKING Price: $2.89 |
| 6 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 7 |
105-7047 |
ARM-IDLER Price: $8.73 |
| 8 |
106-2176 |
PULLEY-IDLER Price: $22.03 |
| 9 |
32128-25 |
NUT-HF Price: $3.19 |
| 10 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 11 |
105-1941 |
SPACER Price: $15.33 |
| 12 |
107-2462-03 |
DISCONTINUED Price: Call Us |
| 13 |
106-7005 |
REAR WHEEL ASM Price: $276.56 |
| 14 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 15 |
3210-5 |
SCREW-HH Price: $0.54 |
| 16 |
322-20 |
SCREW-HH Price: $1.79 |
| 17 |
322-13 |
SCREW-HH Price: $2.73 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
322-7 |
SCREW-HH Price: $0.89 |
| 21 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 22 |
106-7001 |
DISCONTINUED Price: Call Us |
| 23 |
107-1734 |
STOP-CLUTCH Price: $10.84 |
| 24 |
322-9 |
SCREW-HH Price: $3.09 |
| 25 |
322-4 |
SCREW-HH Price: $0.35 |
| 26 |
105-7049 |
BRACKET-SPRING Price: $5.69 |
| 27 |
105-7046 |
BRACKET-SPRING Price: $11.05 |
| 28 |
105-7039-03 |
SUPPORT-HYDRO Price: $5.81 |
| 29 |
107-2463 |
ARM-BYPASS, LH Price: $26.02 |
| 30 |
107-2464 |
ARM-BYPASS, RH Price: $26.02 |
| 31 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 32 |
108-9533 |
HUB ASM This part replaces 106-6987-03. Price: $109.03 |
| 33 |
71-4450 |
BOLT-LUG Price: $3.29 |
| 34 |
106-7002 |
VENT HOSE ASM Price: $48.52 |
