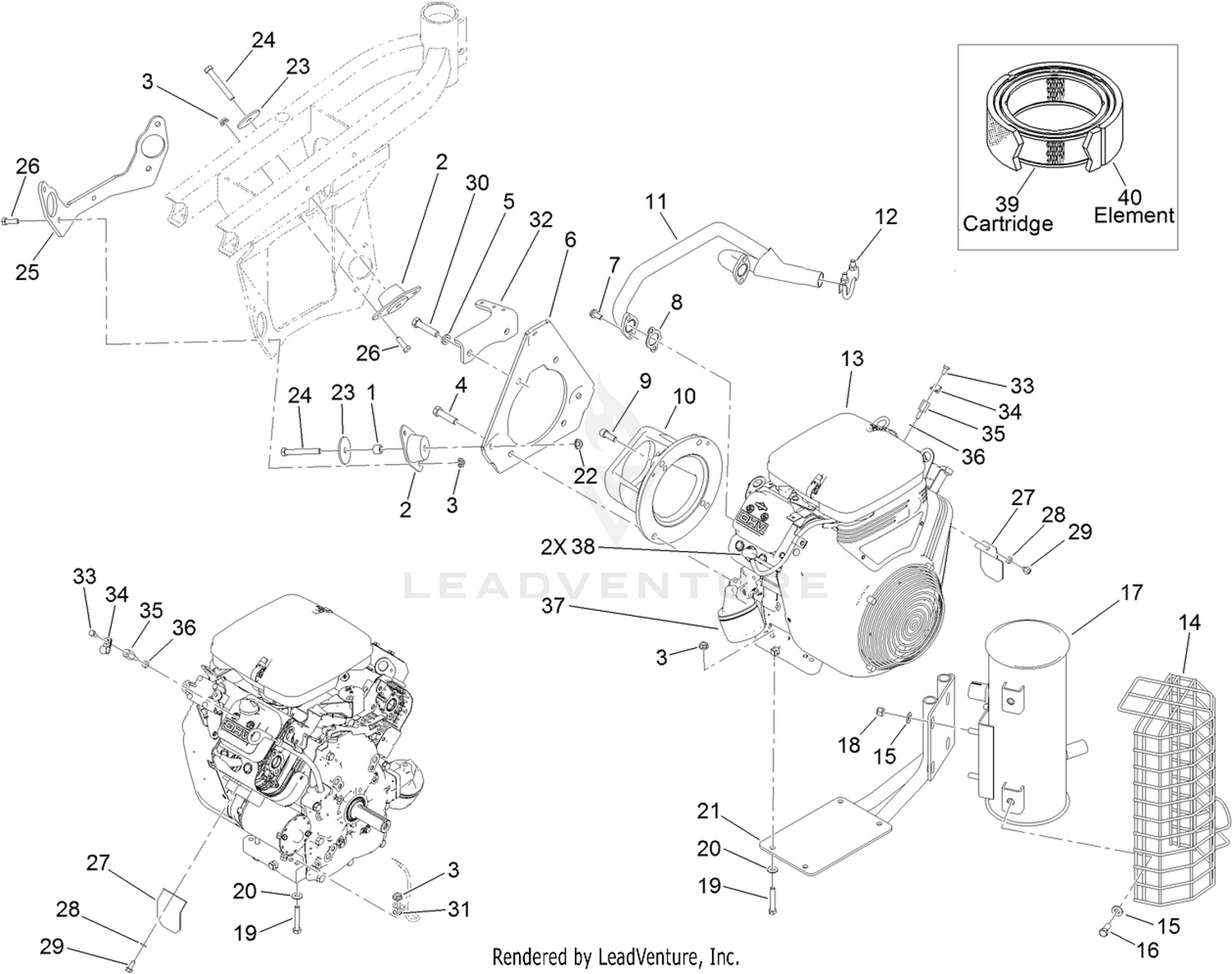

| Ref | Part Number | Description |
|---|
| 1 |
93-9847 |
SPACER Price: $6.25 |
| 2 |
125-5244 |
MOUNT-ENGINE Price: $34.40 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
324-7 |
SCREW-HH Price: $1.79 |
| 5 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 6 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 7 |
94-5300 |
SCREW-HHF Price: $0.80 |
| 8 |
94-5844 |
GASKET This part replaces 94-3449. Price: $8.03 |
| 9 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 10 |
83-1060-0P |
PUMP MOUNT - MACH. *B Price: $249.55 |
| 11 |
119-4128 |
MANIFOLD-EXHAUST Price: $176.95 |
| 12 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 14 |
112-0291 |
SHIELD-MUFFLER Price: $50.79 |
| 15 |
100-4852 |
WASHER-HARDENED Price: $4.63 |
| 16 |
323-5 |
SCREW-HH Price: $0.41 |
| 17 |
110-4001 |
MUFFLER Price: $669.33 |
| 18 |
32128-19 |
NUT-HF Price: $0.99 |
| 19 |
322-10 |
SCREW-HH Price: $0.70 |
| 20 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 21 |
127-6130-03 |
MOUNT-MUFFLER Price: $86.26 |
| 22 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 23 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 24 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 25 |
121-9539-01 |
SUPPORT-ENGINE Price: $55.08 |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 27 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 30 |
324-8 |
SCREW-HH Price: $4.29 |
| 31 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 32 |
105-4307-03 |
BRACKET-SPRING Price: $38.04 |
| 33 |
33113-012 |
SCREW-HH Price: $0.71 |
| 34 |
2412-94 |
CLAMP Price: $2.31 |
| 35 |
106-4616 |
SCREW-SPACER Price: $13.50 |
| 36 |
127-2229 |
WASHER-FIBER Price: $2.24 |
| 37 |
107-7817 |
FILTER-OIL, ENGINE Price: $13.42 |
| 38 |
108-6945 |
PLUG-SPARK Price: $4.62 |
| 39 |
92-0527 |
CARTRIDGE-CLEANER, AIR Price: $30.99 |
