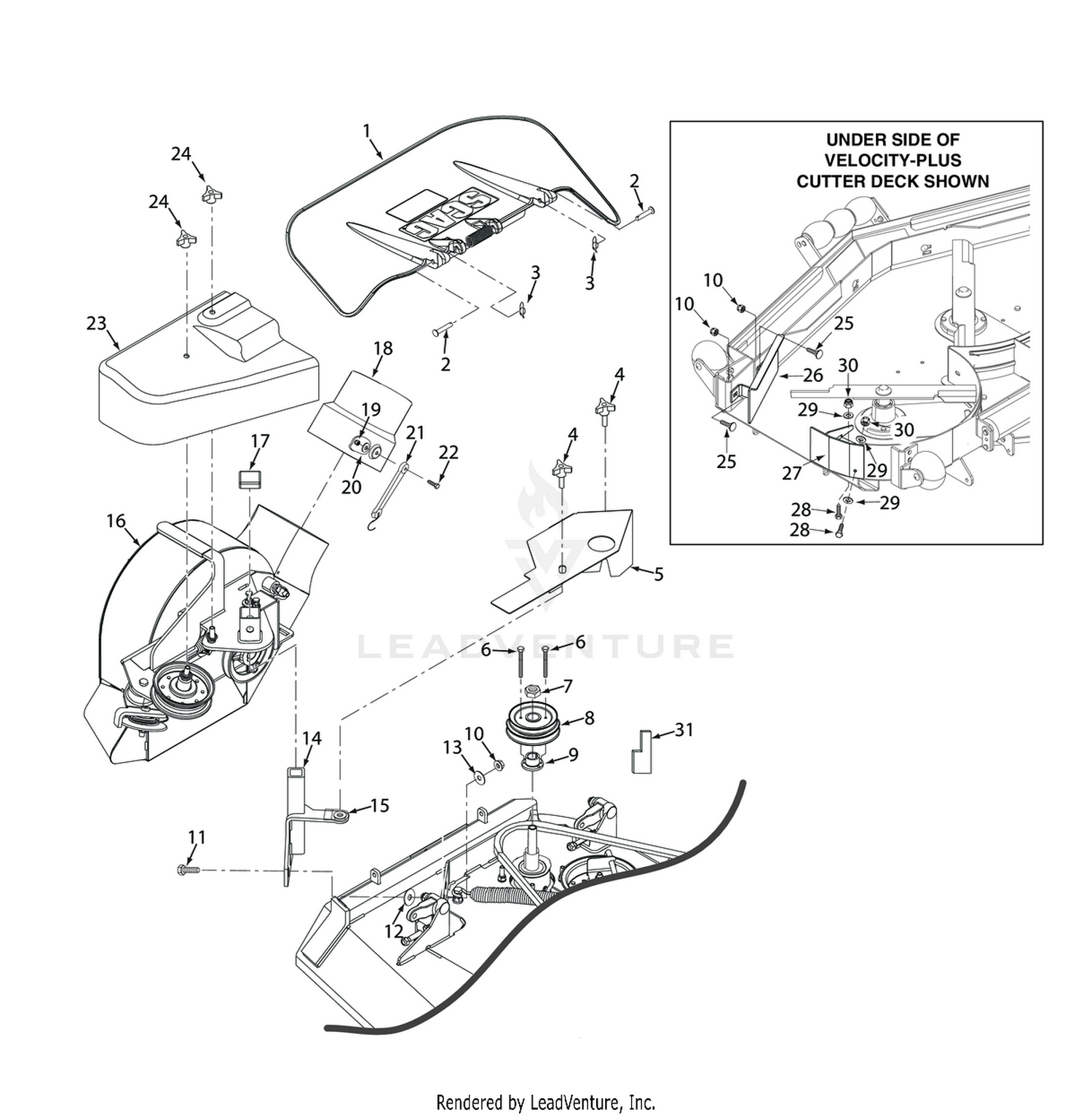

| Ref | Part Number | Description |
|---|
| 1 |
461844 |
Discharge Chute Assembly - 48V Price: Call Us |
| 1 |
461845 |
Discharge Chute Assembly - 52V Price: Call Us |
| 1 |
461846 |
Discharge Chute Advantage - Large Price: Call Us |
| 2 |
04064-15 |
Clevis Pin, 5/16 x 1-1/2" Price: Call Us |
| 3 |
04069-03 |
Pin, Rue Cotter 5/16 Dia. Price: Call Us |
| 4 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 5 |
427819 |
Belt Cover, 52GC-VRII Price: Call Us |
| 5 |
427945 |
Belt Cover, 48GC-VRII Price: Call Us |
| 5 |
427968 |
Belt Cover, 61GC-VRII Price: Call Us |
| 6 |
04001-225 |
Bolt, 1/4-20 x 2½" Full Thread Price: Call Us |
| 7 |
04020-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 8 |
483283 |
Pulley, Double Groove Price: Call Us |
| 8 |
486143 |
Pulley, Double Groove (52) Price: Call Us |
| 8 |
486144 |
Pulley, Double Groove (61) Price: Call Us |
| 9 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 10 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 11 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 12 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 13 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 15 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 16 |
493216 |
Blower Assembly, 48/52GC-VRII Price: Call Us |
| 16 |
493218 |
Blower Assembly, 61GC-VRII Price: Call Us |
| 17 |
482300 |
Cap, Square Vinyl Price: Call Us |
| 19 |
04001-59 |
SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4 Price: Call Us |
| 20 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 21 |
48137-04 |
Rubber Strap 7-3/4" Price: Call Us |
| 22 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 23 |
486348 |
Belt Cover, 48GC-VRII Price: Call Us |
| 23 |
486349 |
Belt Cover, 52GC-VRII Price: Call Us |
| 23 |
486350 |
Belt Cover, 61GC-VRII Price: Call Us |
| 24 |
04029-04 |
Wing Nut, 3/8-16 (Small) Top side Price: Call Us |
| 25 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 26 |
452383 |
Baffle Weldment, 52V Deck Price: Call Us |
| 26 |
452384 |
Baffle Weldment - 61" Deck Price: Call Us |
| 27 |
424211 |
Baffle, Turbo 52" Deck Price: Call Us |
| 27 |
424212 |
Baffle, Turbo - 61" Deck Price: Call Us |
| 27 |
424683 |
Baffle, Turbo 48" Deck Price: Call Us |
| 28 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 29 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 30 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
