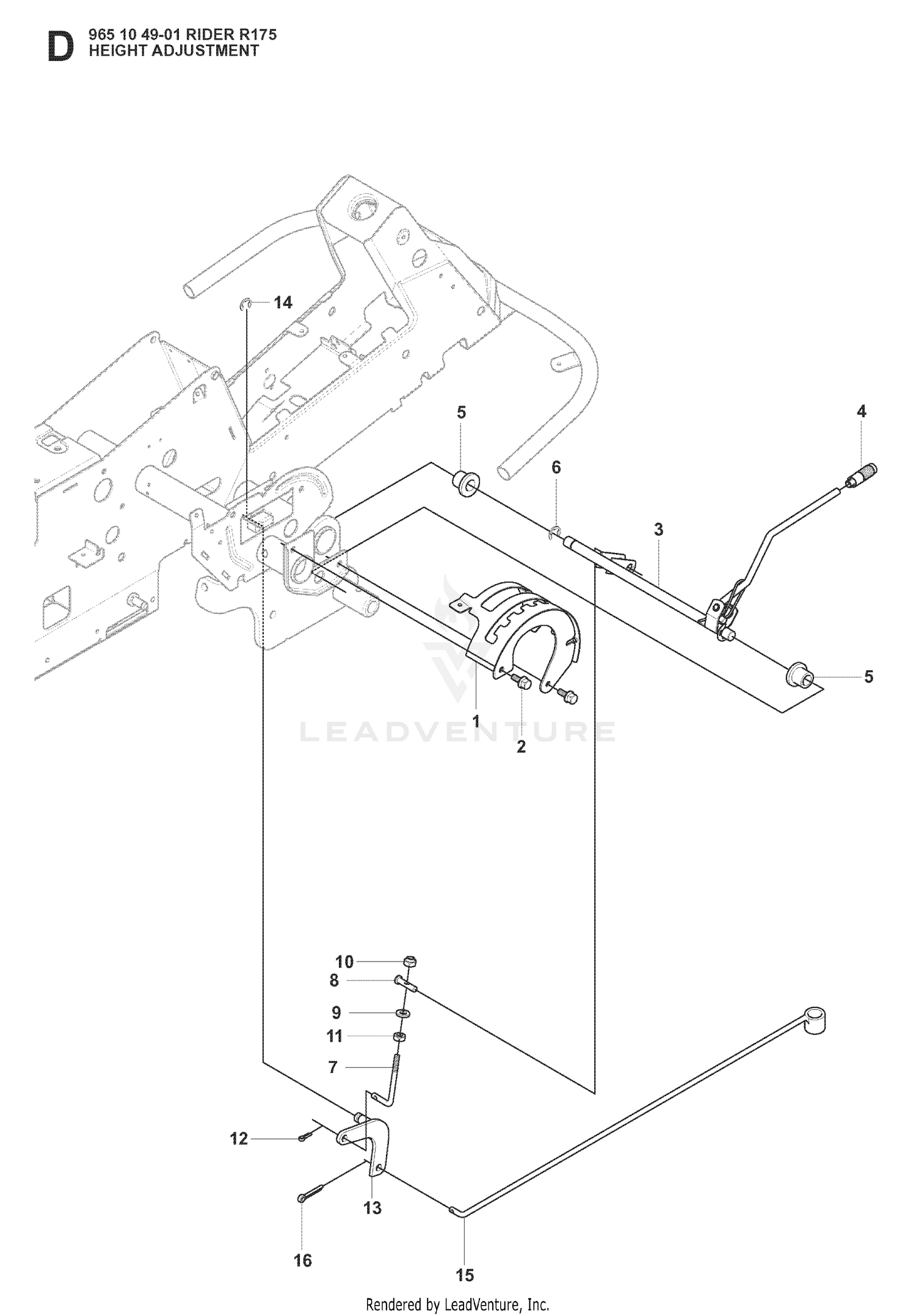

HEIGHT ADJUSTMENT
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535501401 | CONTROL PLATE Price: $25.99 |
| 2 | 138-1204 | SEAL-BOOT Price: $28.62 |
| 2 | 506570103 | BOLT Price: $3.99 |
| 3 | 504734501 | HEIGHT ADJUSTER Price: $74.99 |
| 4 | 138-1205 | BEARING-CUP Price: $22.22 |
| 4 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
| 5 | 138-1206 | BEARING-CONE Price: $22.22 |
| 5 | 584871302 | BEARING FLANGE This part replaces 506554301. Price: $4.99 |
| 6 | 105-8124 | STUD-WHEEL Price: $7.84 |
| 6 | 735312220 | CIRCLIP Price: $3.99 |
| 7 | 138-1207 | SCREW-SOCKET HEAD Price: $2.58 |
| 8 | 138-1208 | WASHER-LOCK Price: $2.71 |
| 8 | 506784601 | Pins Price: $4.99 |
| 9 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 10 | 105-8121 | PIN-DOWEL Price: $0.41 |
| 10 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 11 | 731231801 | NUT Price: $3.99 |
| 12 | 138-6928 | SPACER Price: $22.26 |
| 12 | 721618301 | Split Pin Price: $1.99 |
| 13 | 138-6929 | WASHER Price: $5.09 |
| 13 | 506998301 | Bracket Price: $21.20 |
| 14 | 138-6930 | NUT-LOCK Price: $40.36 |
| 14 | 735311520 | RETAINING RING Price: $2.99 |
| 15 | 138-1209 | GEAR-RING Price: $837.28 |
| 15 | 506975101 | CLUTCH ROD Price: $10.36 |
| 16 | 138-1210 | RING-SNAP Price: $25.99 |
| 16 | 721618301 | Split Pin Price: $1.99 |
| 17 | 353-990 | PLUG ASM Price: $10.01 |
| 18 | 237-78 | O-RING Price: $3.85 |
| 19 | 138-1211 | PLUG-FLANGE, MAGNETIC Price: $7.25 |
| 20 | 138-1212 | O-RING Price: $1.73 |
| 21 | 138-1213 | CAP-END Price: $89.39 |
| 22 | 138-1214 | WASHER-THRUST, SUN Price: $9.02 |
| 23 | 105-8131 | RING-RETAINING Price: $3.05 |
| 25 | 138-1215 | GEAR-PRIMARY, SUN Price: $97.58 |
| 26 | 138-1216 | SHAFT-DRIVE Price: $300.56 |
| 27 | 138-1217 | PRIMARY CARRIER ASM Price: $917.18 |
| 28 | 138-1218 | SECONDARY CARRIER ASM Price: $802.56 |
