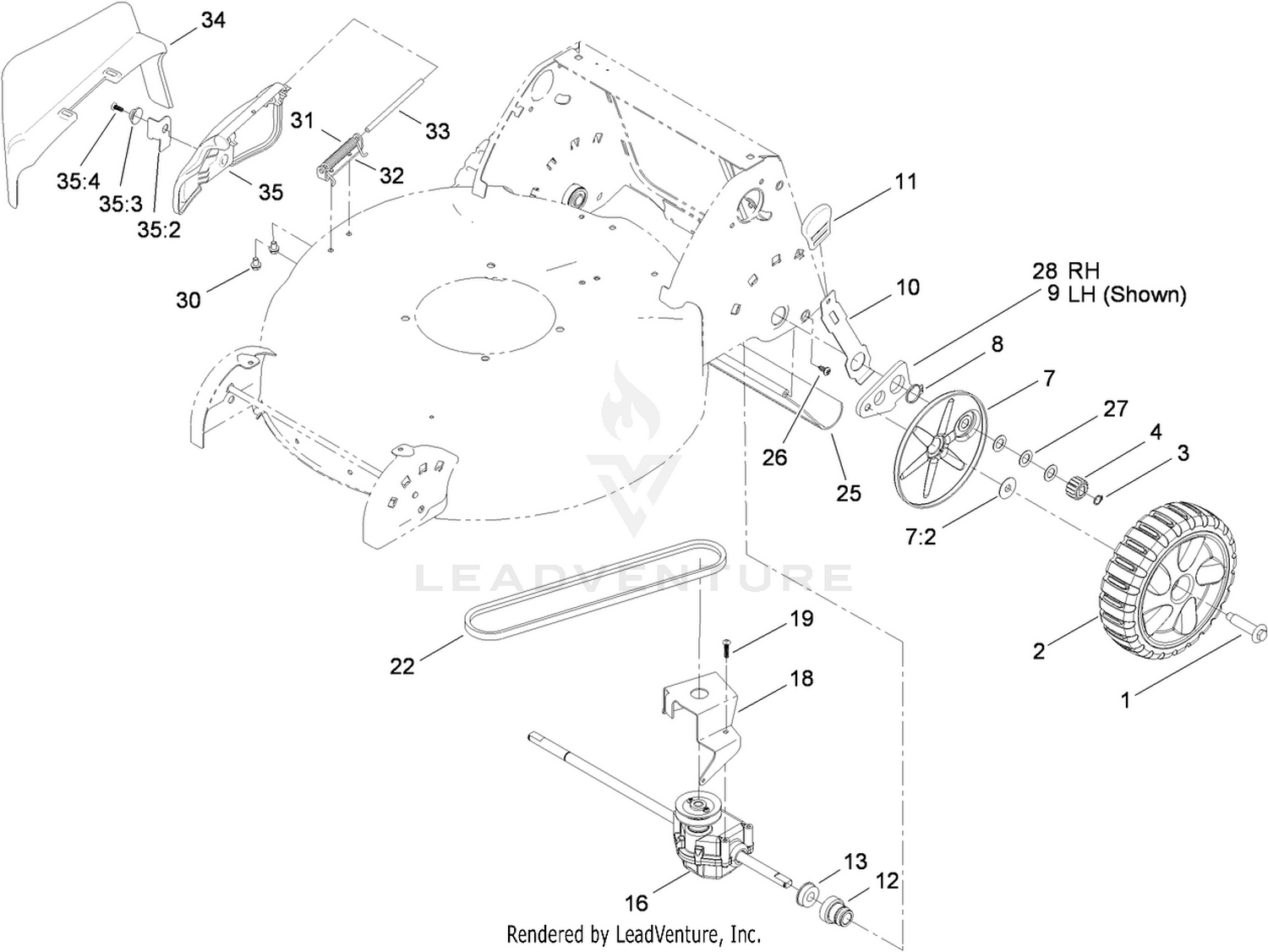

| Ref | Part Number | Description |
|---|
| 1 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 2 |
117-4104 |
REAR WHEEL ASM This part replaces 107-3906. Price: $32.82 |
| 3 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 4 |
131-5399 |
GEAR-PINION, 15T This part replaces 110-9417. Price: $2.67 |
| 7 |
110-1793 |
WHEEL COVER ASM Price: $6.37 |
| 8 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 9 |
108-9344 |
ARM-REAR PIVOT, LH Price: $8.10 |
| 10 |
110-9445 |
ARM-SPRING, REAR Price: $7.85 |
| 11 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 12 |
104-8698 |
RETAINER-BEARING, HOC Price: $7.65 |
| 13 |
104-8699 |
BEARING-BALL Price: $3.28 |
| 16 |
121-9183 |
TRANSMISSION- INSIGHT 2BAIL (6:1) This part replaces 110-9479. Price: $95.36 |
| 18 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $8.85 |
| 19 |
108-7476 |
SCREW-PLASTITE Price: $0.61 |
| 22 |
110-9429 |
V-BELT Price: $12.03 |
| 25 |
120-7010 |
SHIELD-TRAILING This part replaces 112-8768. Price: $26.19 |
| 26 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 27 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 28 |
108-9343 |
ARM-REAR PIVOT, RH Price: $8.10 |
| 30 |
137-4795 |
SCREW This part replaces 99-8445. Price: $0.29 |
| 31 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 32 |
112-6416 |
BRACKET-COVER Price: $1.88 |
| 33 |
136-8672 |
PIN-HINGE, DEFLECTOR This part replaces 99-5291. Price: $1.99 |
| 34 |
105-3028 |
CHUTE-DISCHARGE, SIDE Price: $8.74 |
| 35 |
106-8376 |
DISCHARGE DOOR ASM Price: $8.96 |
