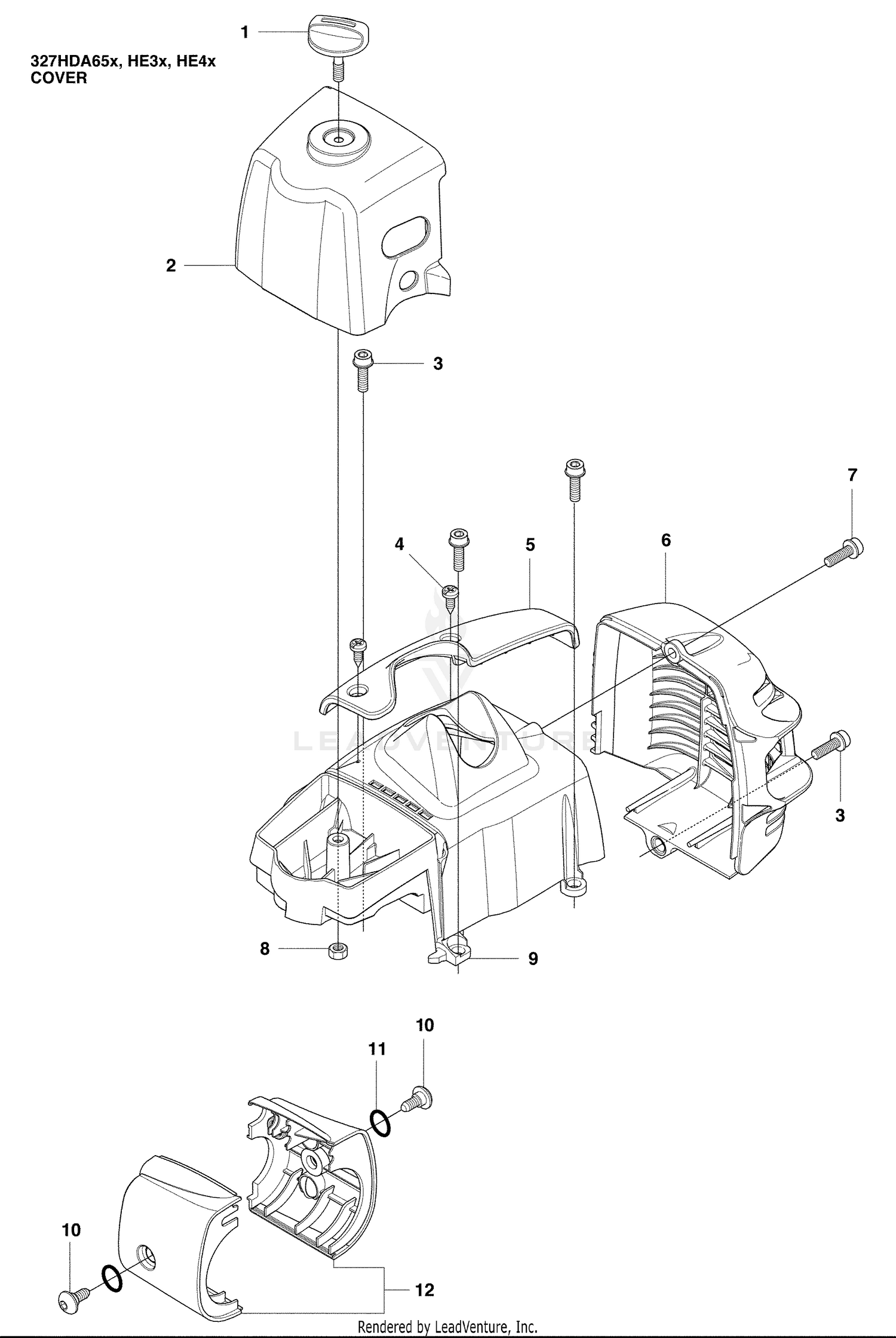

| Ref | Part Number | Description |
|---|
| 1 |
256-247 |
BUSHING-FLANGE Price: $2.17 |
| 1 |
537213210 |
KNOB Price: $4.99 |
| 2 |
502481301 |
FILTER COVER Price: $8.99 |
| 2 |
69-7890-03 |
RH BRAKE ARM ASM This part replaces 69-7890. Price: $127.42 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
503213512 |
SCREW Price: $2.99 |
| 4 |
69-9210-03 |
LEVER-LATCH, BRAKE This part replaces 69-9210. Price: $15.85 |
| 5 |
321-4 |
SCREW-HH Price: $0.99 |
| 5 |
502481601 |
ARM PROTECTION Price: $6.99 |
| 6 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 6 |
544848102 |
HEAT PROTECTOR This part replaces 544848101. Price: $22.99 |
| 7 |
503217520 |
SCREW Price: $3.99 |
| 7 |
69-7720-03 |
BRAKE PAWL ASM This part replaces 69-7720. Price: $53.60 |
| 8 |
503222401 |
NUT Price: $1.99 |
| 8 |
69-9200 |
PIN Price: $22.07 |
| 9 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 9 |
574353901 |
CYLINDER COVER ASSY This part replaces 502481401. Price: $22.99 |
| 10 |
321-2 |
SCREW-HH Price: $2.79 |
| 10 |
503961301 |
SCREW MT5X11 Price: $0.50 |
| 11 |
69-7790-03 |
PIN ASM This part replaces 69-7790. Price: $31.86 |
| 11 |
740420600 |
O-RING 8X1.6 Price: $0.17 |
| 12 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 13 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 14 |
3296-9 |
NUT-HEX Price: $0.25 |
| 15 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 16 |
106-0485-03 |
MOUNT-PEDAL, BRAKE This part replaces 69-7840. Price: $126.17 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 19 |
49-6171 |
PAD-BRAKE, LH Price: $26.16 |
| 20 |
69-7700-03 |
PEDAL ASM This part replaces 69-7700. Price: $51.40 |
| 21 |
323-4 |
SCREW-HH Price: $1.02 |
| 22 |
69-5670 |
CABLE-BRAKE Price: $133.04 |
| 23 |
69-7880-03 |
LH BRAKE ARM ASM This part replaces 69-7880. Price: $127.42 |
| 24 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 25 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 26 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
