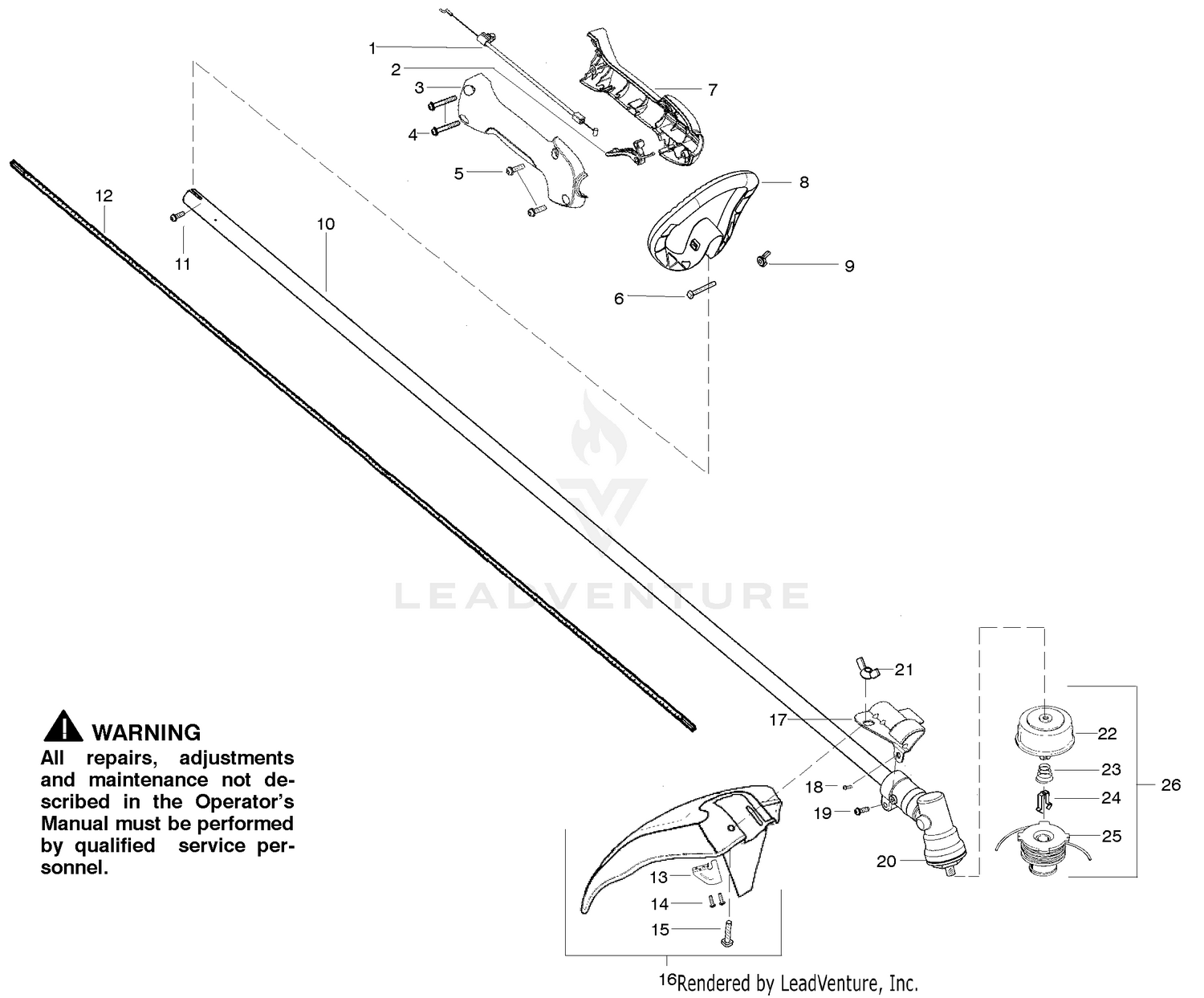

| Ref | Part Number | Description |
|---|
| 1 |
530057566 |
Assy-Throttle Cable Price: $8.99 |
| 1 |
98-9643 |
INJECTION PUMP ASM Price: $2,551.99 |
| 2 |
530058000 |
Trigger Price: $2.99 |
| 3 |
530058751 |
Throttle Hsg. (Right) Price: $6.99 |
| 3 |
98-9596 |
JOINT-EYE Price: $18.69 |
| 4 |
530016406 |
Screw Price: $1.99 |
| 4 |
98-9361 |
BOLT-HSH Price: $0.76 |
| 5 |
530015814 |
Screw Price: $1.49 |
| 5 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 6 |
530015786 |
Bolt-Handle Price: $1.99 |
| 6 |
98-9456 |
SHIM-INJECTION (0.20MM) Price: $7.29 |
| 6 |
98-9457 |
SHIM-INJECTION (0.25MM) Price: $8.40 |
| 7 |
530058750 |
Throttle Hsg. (Left) Price: $6.99 |
| 7 |
98-9458 |
SHIM-INJECTION (0.30MM) Price: $12.10 |
| 8 |
530058754 |
Handle-Assist Price: $1.56 |
| 8 |
98-9438 |
STUD Price: $1.33 |
| 9 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 10 |
530071780 |
Assy-Drive Shaft Hsg. Price: $26.99 |
| 11 |
530015886 |
Screw This part replaces 530015805. Price: $1.99 |
| 12 |
530096169 |
Shaft- Flex Price: $14.99 |
| 13 |
530052285 |
Line Limiter Price: $1.99 |
| 14 |
530015814 |
Screw Price: $1.49 |
| 15 |
530015820 |
Bolt-Shield Price: $1.99 |
| 17 |
545150701 |
Bracket-Shield Price: $2.99 |
| 18 |
530015224 |
Screw Price: $3.33 |
| 19 |
530016014 |
Screw Price: $1.99 |
| 20 |
530096099 |
Assy-Gearbox Price: $32.99 |
| 21 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 22 |
530095772 |
Assy-Hub. Price: Call Us |
| 23 |
530053241 |
Spring Price: $1.99 |
| 24 |
530401957 |
Retainer Price: $1.99 |
| 25 |
952711551 |
Accy-Spool w/Line Price: Call Us |
| 26 |
952711550 |
Accy-Head TNG VI Assy. Price: Call Us |
