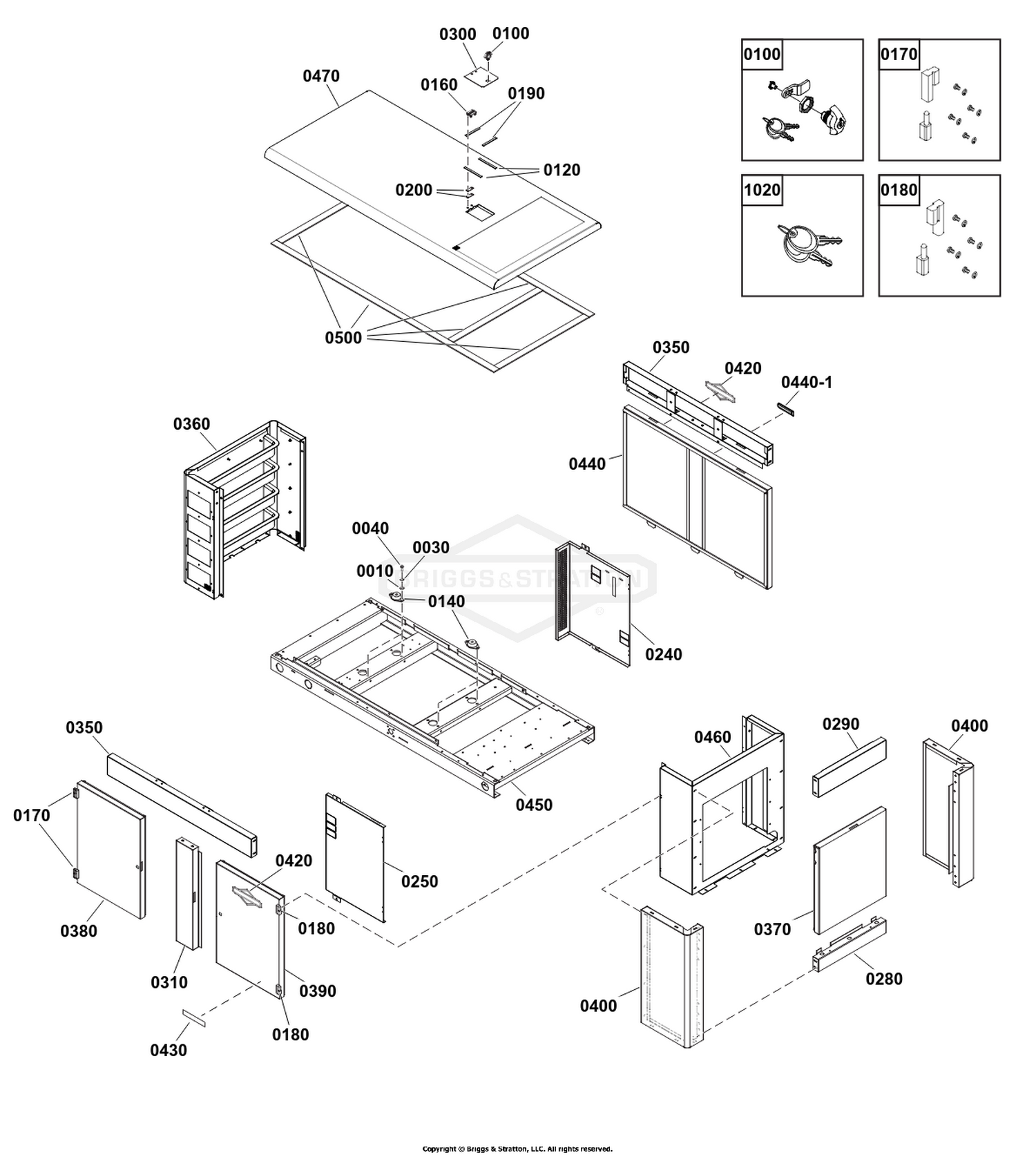

Enclosure Group

Enclosure Group

Parts (26)

RefPart NumberDescription
0010 71072MA WASHER, FLAT .406X.81 This part replaces 703590. Price: $3.63
0030 703454 LOCKWASHER, SPLIT 3/8 This part replaces 22237GS. Price: $2.95
0040 5025013X6SM BOLT, 3/8-16 X 3/4" G Price: $3.19
0100 204700GS KIT-LATCH Price: $23.34
0120 197316GS SEAL Price: $5.57
0140 204653GS MOUNT-VIBRATION Price: $23.59
0160 205225GS HINGE Price: $20.54
0170 204920GS HINGE Price: $20.80
0180 204852GS HINGE Price: $18.90
0190 207758GS SEAL Price: $6.11
0200 BA310477GS PLATE-COVER Price: $11.59
0280 708909 RAIL-SUPPORT Price: $71.37
0290 708908 RAIL-SUPPORT Price: $67.33
0300 708891 DOOR Price: $15.99
0310 708916 SUPPORT Price: $140.36
0350 708910 RAIL-SUPPORT Price: $392.92
0360 708885 BULKHEAD-ALTERNATOR Price: $980.91
0370 708893 DOOR Price: $533.52
0380 84007454 DOOR ASSEMBLY This part replaces 708896. Price: $608.07
0390 84007454 DOOR ASSEMBLY This part replaces 708898. Price: $608.07
0400 708889 CORNER Price: $455.81
0420 770025 DECAL Price: $20.28
0430 770458 BADGE-FORTRESS Price: $12.87
0460 770049 BULKHEAD-ENGINE Price: $636.96
0470 770050 ROOF Price: $2,563.98
0500 205368GS SEAL Price: $71.23
