Home / OPE / BT15068GNSN / 30710, 72" Rear Discharge Mower, 1982 (SN 20001-29999) / Engine Assembly (continued) 4

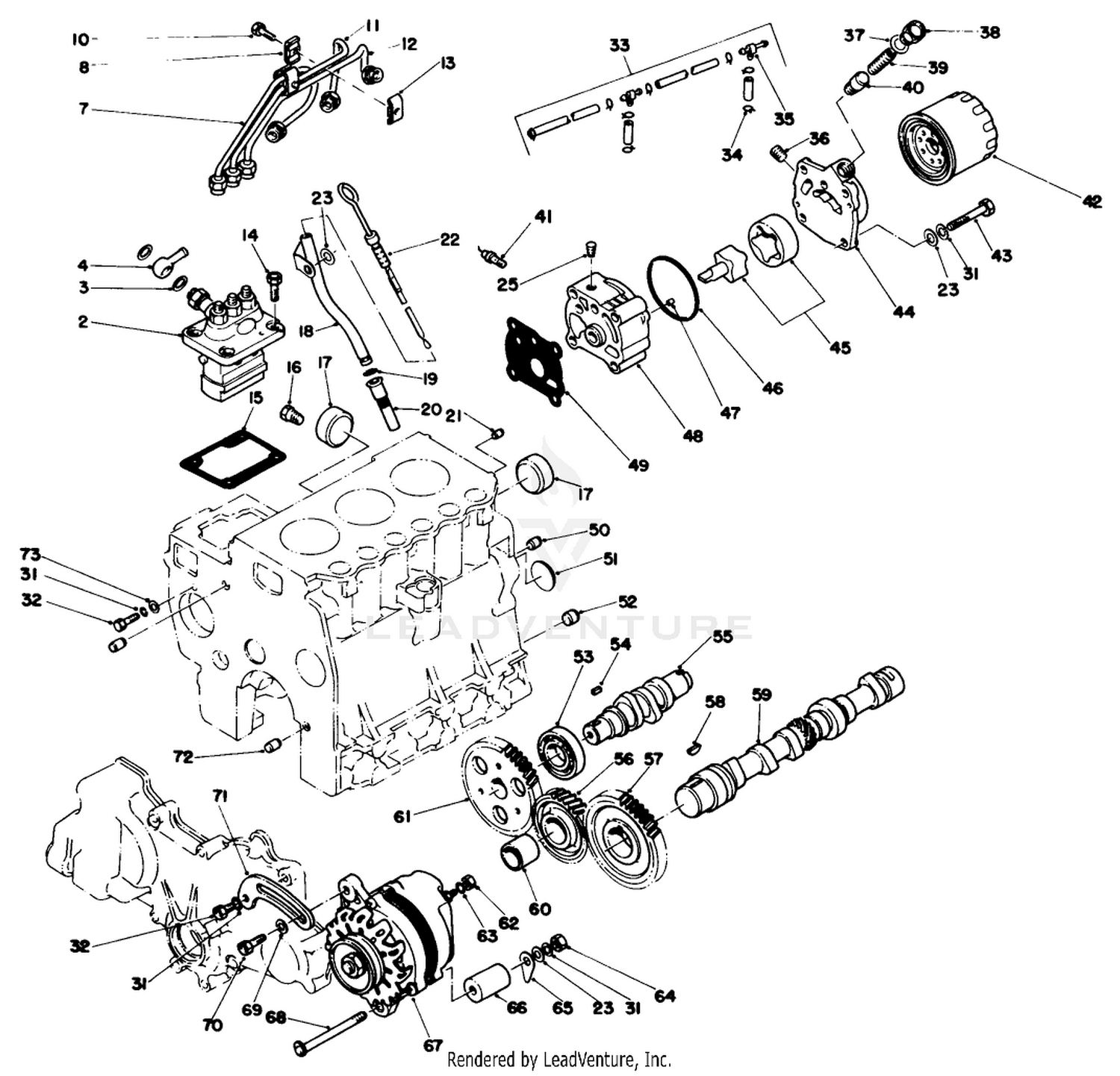

Engine Assembly (continued) 4

Engine Assembly (continued) 4

Parts (59)

RefPart NumberDescription
2 42-8000 INJ PUMP Price: $2,367.11
3 42-9830 DISCONTINUED Price: Call Us
4 42-8100 COLLAR MM 304916 Price: $28.56
8 56-0750 CLAMP This part replaces 42-8160. Price: $15.09
10 33113-025 SCREW-HH This part replaces 43-2600. Price: $1.97
11 42-8140 PIPE ASY. Price: $95.38
13 56-0760 CLAMP This part replaces 42-8170. Price: $7.97
14 33114-020 SCREW-HH This part replaces 43-0110. Price: $0.28
15 42-8010 ADJ SHIM MM 409040 Price: $13.75
16 281-1 PLUG-PIPE, SQH Price: $4.56
17 42-7090 SEALING CAP Price: $27.82
18 42-7050 OIL GA GUIDE Price: $21.44
19 43-2710 O-RING Price: $6.47
20 72-6950 OIL LEVEL GUAGE RETAIN. This part replaces 43-2900. Price: $33.80
21 42-7160 PIN Price: $4.51
22 42-7270 OIL GAUGE Price: $39.93
23 42-9660 WASHER Price: $2.50
25 42-7410 DISCONTINUED Price: Call Us
31 3253-4 WASHER-LOCK This part replaces 42-9850. Price: $0.25
32 33114-016 SCREW-HH This part replaces 42-9230. Price: $0.27
33 42-8180 FUEL RETURN ASM Price: $39.29
34 2412-79 CLAMP-HOSE Price: $1.63
35 42-8190 JOINT MM 100088 Price: $13.50
36 67-2390 PLUG This part replaces 42-7210. Price: $5.06
37 42-7290 GASKET-PLUG This part replaces 42-8880. Price: $7.56
38 67-2520 PLUG This part replaces 42-8870. Price: $5.65
39 42-8930 SPRING MM 407142 Price: $16.42
40 67-2500 PLUNGER This part replaces 42-8860. Price: $22.88
41 92-1978 OIL PRESSURE SWITCH This part replaces 42-9060. Price: $63.87
42 42-9030 FILTER-OIL Price: $10.31
43 42-9480 DISCONTINUED Price: Call Us
44 42-8920 DISCONTINUED Price: Call Us
45 42-8910 PUMP ROTOR Price: $416.87
46 42-8940 O-RING Price: $28.65
47 42-7030 DISCONTINUED Price: Call Us
48 42-8900 PUMP BODY MM 409201 Price: $249.04
49 42-8950 BODY GASKET MM 407124 Price: $13.24
50 42-7180 DISCONTINUED Price: Call Us
51 42-7170 PLUG-40 MM MF665511 Price: $11.46
52 42-7200 KNOCK BSHG MS 471110 Price: $10.16
53 93-3409 BEARING This part replaces 42-7820. Price: $33.38
54 42-7840 SUNK KEY Price: $9.67
55 42-7810 DISCONTINUED Price: Call Us
56 42-7790 IDLER GEAR Price: $383.30
57 42-7780 DISCONTINUED Price: Call Us
58 42-7730 DISCONTINUED Price: Call Us
59 72-4280 CAM SHAFT Price: $839.96
62 48-7880 NUT-HEX This part replaces 43-5970. Price: $0.25
63 43-5920 WASHER-LOCK, SPRING Price: $0.25
64 33014-00 NUT-HEX This part replaces 42-9580. Price: $0.25
65 43-0370 DISCONTINUED Price: Call Us
66 43-0380 DISCONTINUED Price: Call Us
67 112-1359 ALTERNATOR This part replaces 43-0390. Price: $469.33
68 43-1900 BOLT MD 017625 Price: $17.40
69 54-8660 WASHER Price: $2.23
70 67-4660 BOLT-FLANGE This part replaces 54-8650. Price: $2.64
71 43-0400 GEN BRACE MM 409463 Price: $68.06
72 42-7190 DISCONTINUED Price: Call Us
73 42-9820 DISCONTINUED Price: Call Us
