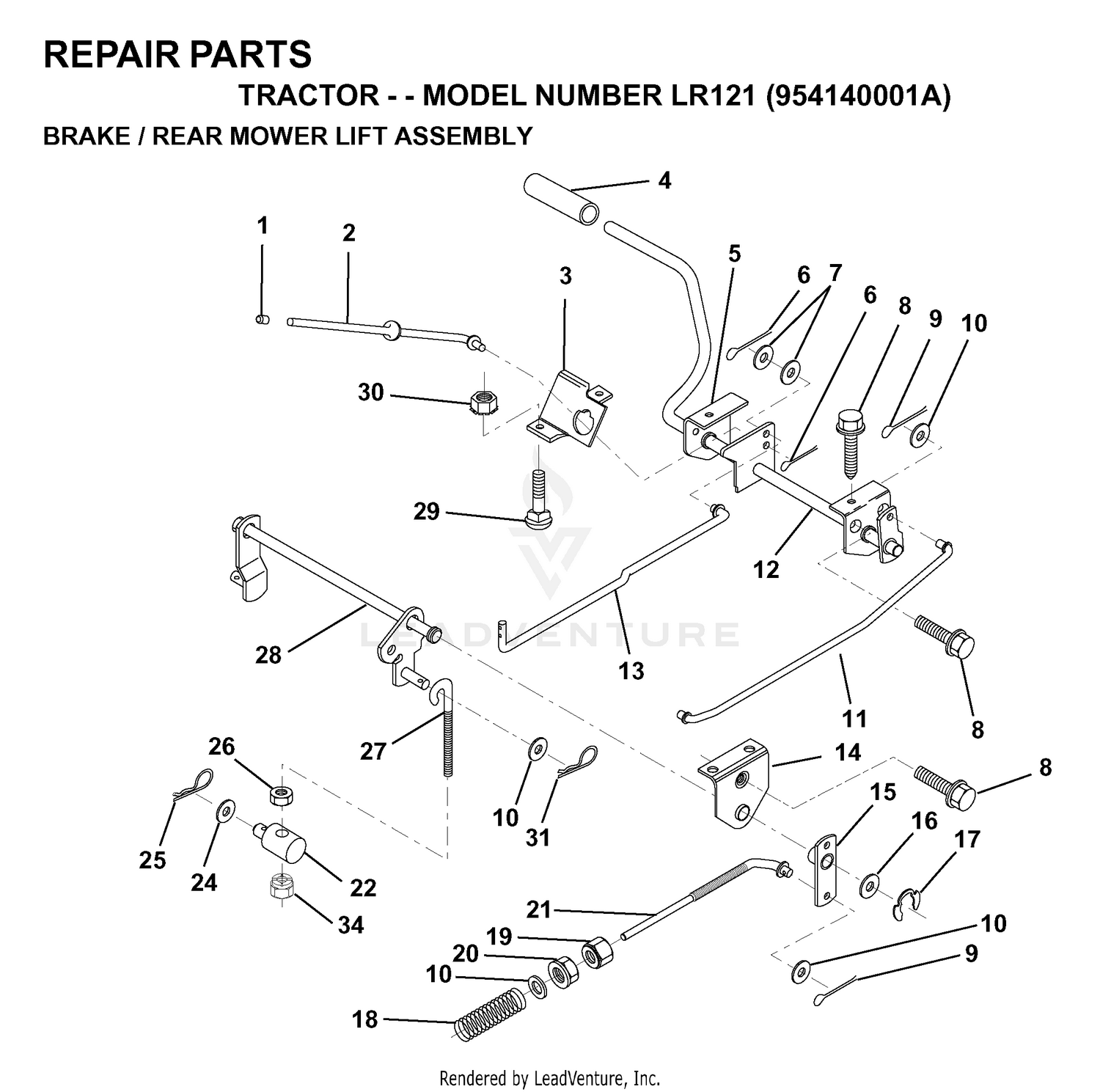

| Ref | Part Number | Description |
|---|
| 1 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 2 |
532123436 |
ROD,PARK BRAKE Price: $4.99 |
| 3 |
532123437 |
BRKT,PARK BRAKE Price: $4.46 |
| 4 |
532008156 |
FOOT PEDAL COVER Price: $2.64 |
| 5 |
532122504 |
BRKT,CLU PEDAL LH Price: $3.08 |
| 6 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 7 |
819131016 |
WASHER Price: $2.99 |
| 9 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 10 |
105-3737 |
OVER FLOW PIPE ASM Price: $66.18 |
| 10 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
532123543 |
ROD,FRT BRAKE Price: $8.38 |
| 12 |
532139933 |
CLUTCH/BRAKE PEDAL ASSY Price: $21.38 |
| 13 |
532123394 |
ROD,CLUTCH Price: $7.99 |
| 14 |
532121978 |
BRKT,LIFT SHAFT Price: $2.38 |
| 15 |
532133332 |
ARM, BRAKE ASMBLY Price: $6.71 |
| 16 |
819251816 |
WASHER T Price: $4.99 |
| 17 |
812000034 |
Ring, Klip Truarc #5304-75 Price: $2.99 |
| 18 |
532151332 |
SPRING, BRAKE ROD Price: $4.99 |
| 19 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 20 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
98-9431 |
SCREW-BLEEDER, AIR Price: $15.04 |
| 21 |
532131461 |
CLUTCH KIT This part replaces 532131460. Price: $13.99 |
| 22 |
532144585 |
TRUNNION, LEFT Price: $8.99 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 26 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 27 |
532127369 |
LINK.MOWER.REAR Price: $9.99 |
| 28 |
532140776 |
REAR MOWER LIFT ASSY Price: $40.26 |
| 29 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 30 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 30 |
98-7654 |
GASKET Price: $8.84 |
| 31 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 40 |
98-9420 |
OVERFLOW PIPE ASM Price: $3.91 |
| 45 |
112-0182 |
PIPE-OVERFLOW Price: $3.78 |
| 50 |
98-7671 |
CLIP-PIPE Price: $2.39 |
| 60 |
115-3018 |
NOZZLE HOLDER KIT Price: $440.14 |
| 70 |
98-7676 |
GASKET Price: $2.73 |
| 75 |
98-7677 |
SEAL-HEAT Price: $10.17 |
| 80 |
98-9653 |
PIPE-INJECTION Price: $69.17 |
| 90 |
98-9654 |
PIPE-INJECTION Price: $76.86 |
| 100 |
98-9655 |
PIPE-INJECTION Price: $82.26 |
| 110 |
105-3738 |
PIPE-INJECTION Price: $67.15 |
| 120 |
98-7682 |
CLAMP-PIPE Price: $6.37 |
| 130 |
98-7683 |
CLAMP-PIPE Price: $3.66 |
| 140 |
98-7684 |
SCREW (W/WASHER) Price: $0.44 |
| 150 |
115-3019 |
PLUG-GLOW Price: $78.63 |
| 160 |
105-3739 |
CORD-PLUG, GLOW Price: $19.85 |
