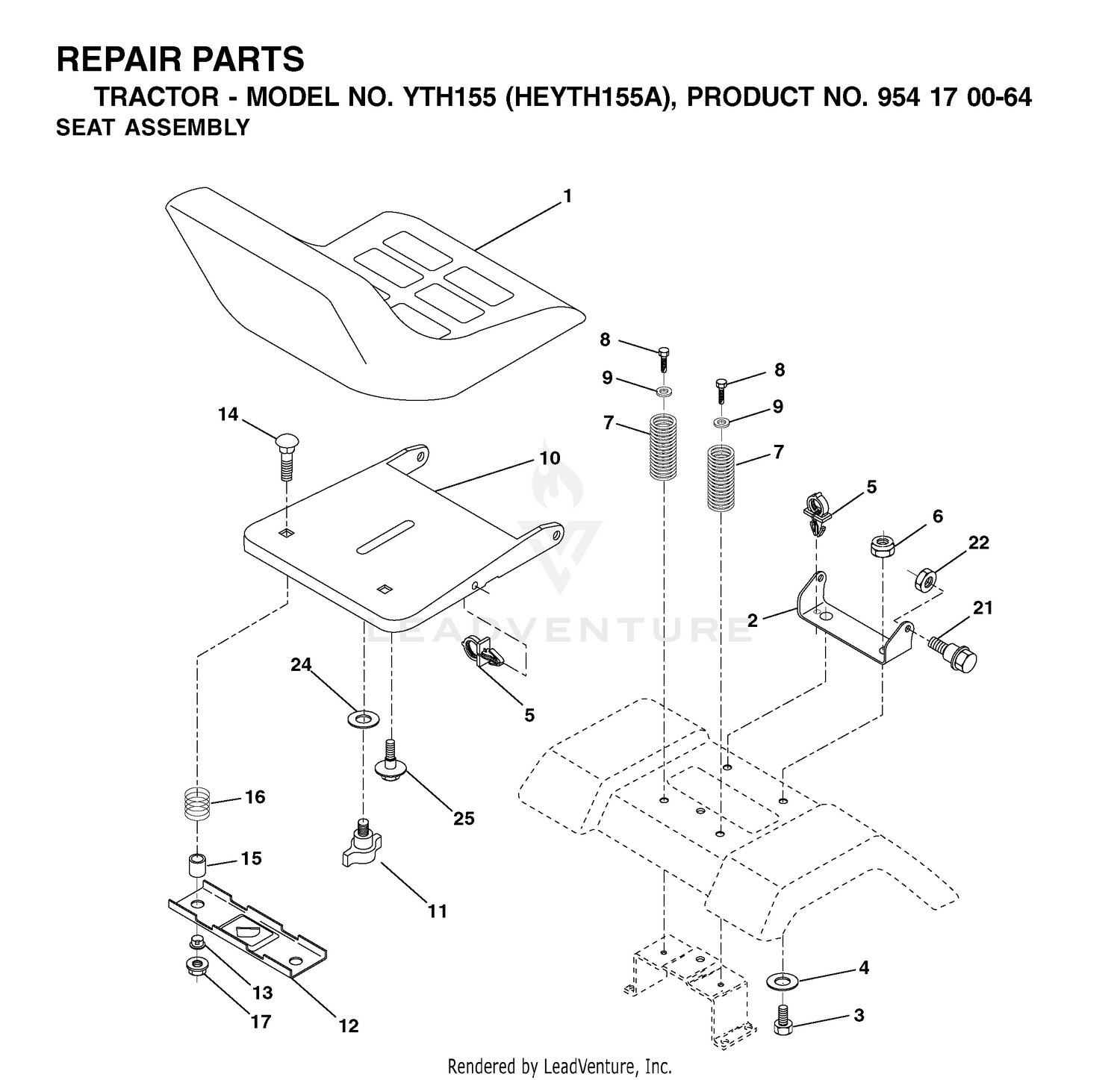

| Ref | Part Number | Description |
|---|
| 1 |
120-4010-03 |
FRAME Price: $4,870.83 |
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140839. Price: $149.99 |
| 2 |
161-1780 |
BUMPER ASM This part replaces 120-8919-03. Price: $324.35 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
115-0282 |
PROXIMITY SENSOR ASM Price: $155.22 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
325-5 |
SCREW-HH Price: $1.20 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
32128-23 |
NUT-HF Price: $1.51 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
105-8278 |
DECAL Price: $9.67 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
2412-138 |
R-CLAMP Price: $1.36 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 13 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
121-1508-0P |
BRACKET-BULKHEAD This part replaces 121-1508-03. Price: $24.95 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
323-6 |
SCREW-HH Price: $0.66 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
322-10 |
SCREW-HH Price: $0.70 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
69-9760 |
COVERPLATE Price: $5.38 |
| 19 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 20 |
240-2 |
GROMMET-RUBBER Price: $20.20 |
| 21 |
121-1481-0P |
PLATE-MOUNT, LH BULKHEAD This part replaces 121-1481-03. Price: $33.56 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
2412-147 |
CLAMP-R Price: $2.51 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
