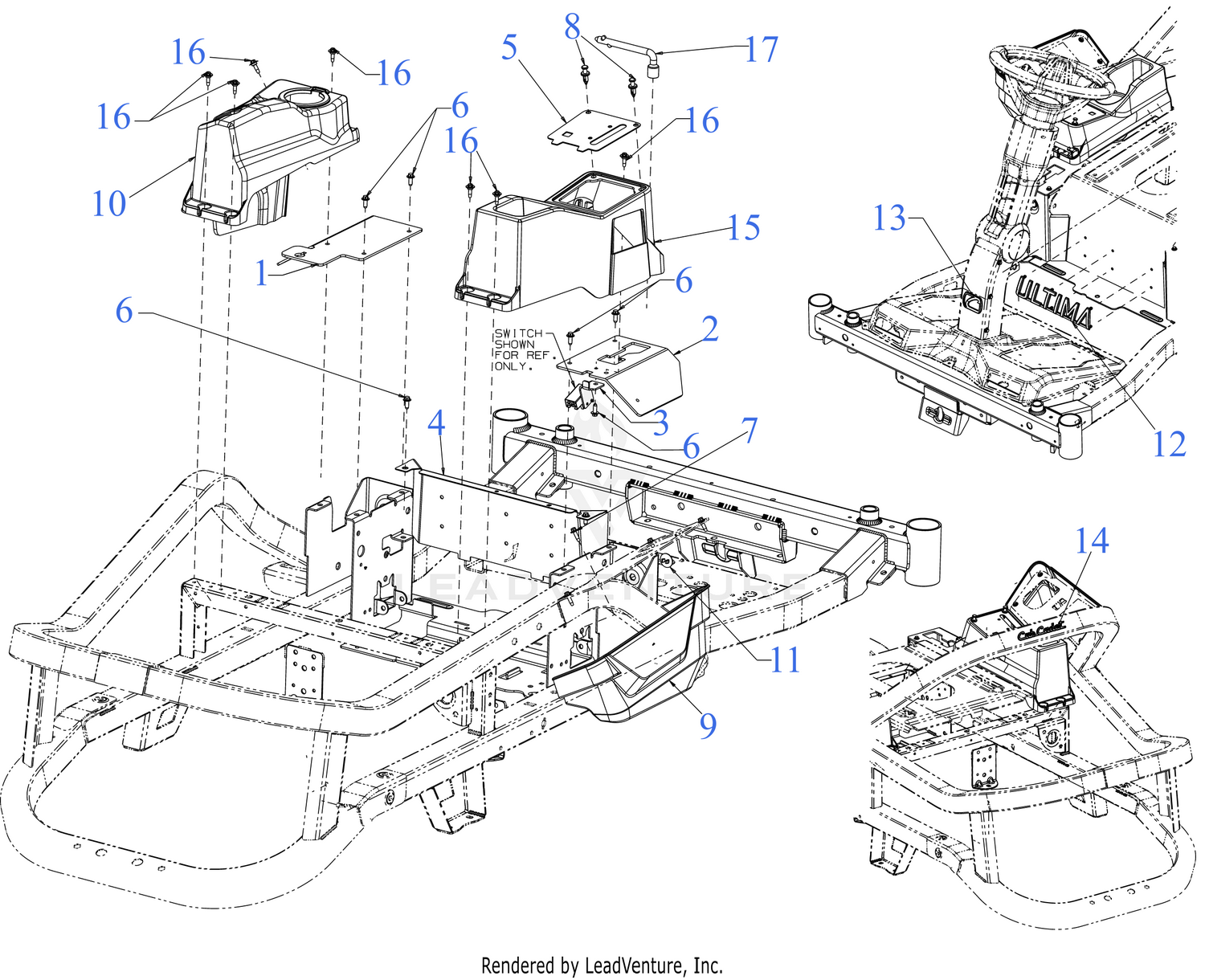

| Ref | Part Number | Description |
|---|
| 2 |
703-27846 |
CONTROL BRACKET (RH) Price: $28.47 |
| 3 |
703-27848 |
SWITCH MOUNTING BRACKET Price: $13.09 |
| 6 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 7 |
710-06147 |
SCREW 1/4-10 x .750 Price: $3.08 |
| 8 |
728-0199 |
PLASTIC RIVET Price: $4.08 |
| 9 |
731P14831 |
CONTROL PANEL CONSOLE Price: $36.06 |
| 10 |
731P26328 |
CONSOLE (LH) Price: $48.72 |
| 11 |
731-27029 |
HOLE PLUG 1.0 OD Price: $3.05 |
| 12 |
731-28301 |
BADGE (ULTIMA) Price: $7.49 |
| 13 |
731-28411 |
BADGE (CUB "C" LOGO) Price: $7.99 |
| 14 |
731-28412 |
BADGE (CUB SCRIPT) Price: $8.99 |
| 15 |
731P28581 |
CONSOLE (RH) Price: $54.89 |
| 16 |
738-05090 |
SHOULDER SCREW M6-1 .368 X.115 Price: $2.77 |
