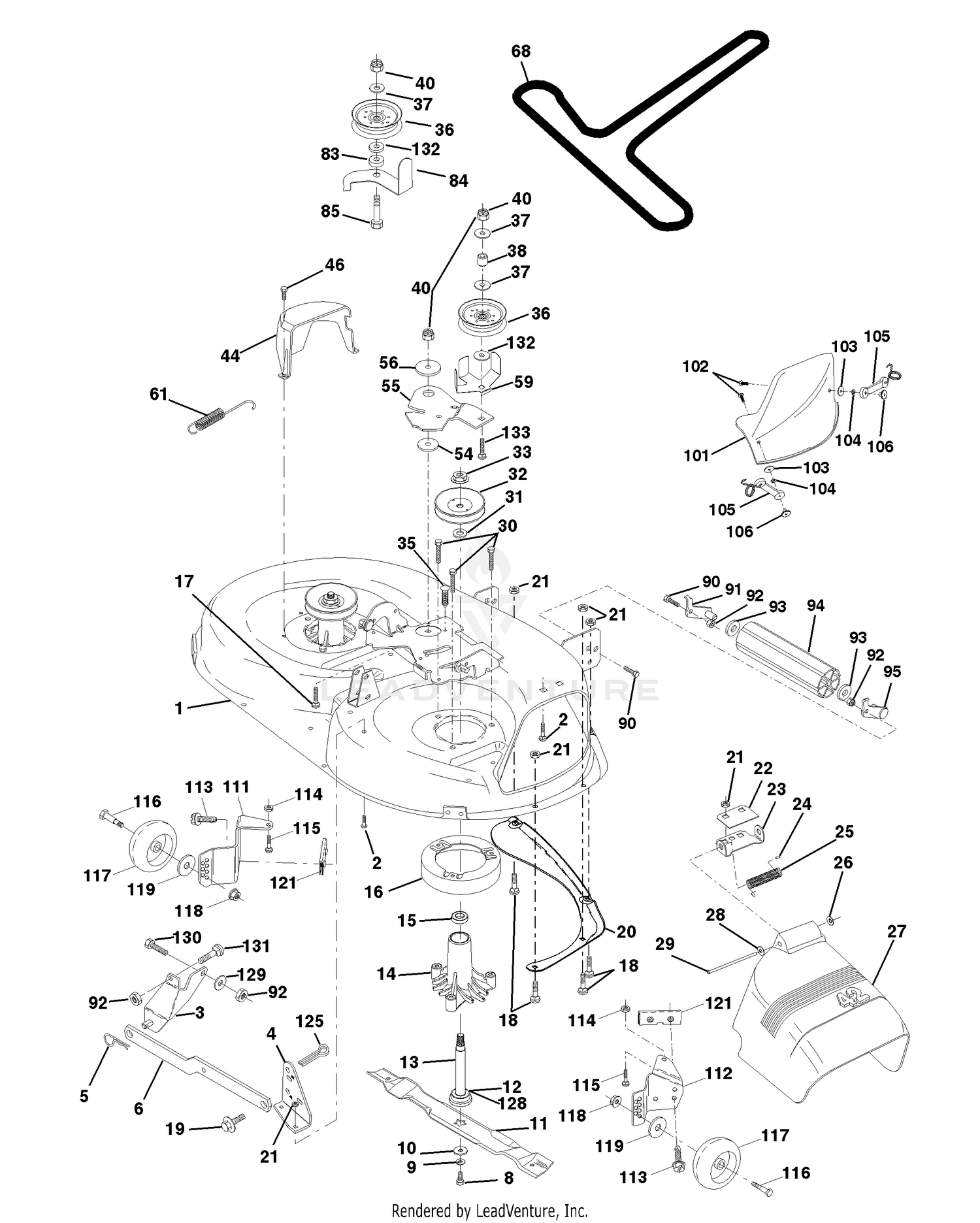

| Ref | Part Number | Description |
|---|
| 1 |
532176031 |
DECK SVC 42" TP This part replaces 532144393. Price: $279.99 |
| 1 |
94-3928 |
DISCONTINUED Price: Call Us |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
532138440 |
BRKT DECK SW BAR Price: $4.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 6 |
94-3940 |
SCREW-HH Price: $7.51 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 8 |
94-3936 |
NUT-LOCK, HEX Price: $3.00 |
| 9 |
100-1356 |
SCREW-HF This part replaces 94-4002. Price: $11.92 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 12 |
94-3927 |
SCREW-HH Price: $4.36 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
104-0168 |
BALL SWITCH KIT This part replaces 95-7034. Price: $87.16 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 16 |
94-4045 |
ADJUSTER-THREADED Price: $171.13 |
| 17 |
28-3570 |
O-RING Price: $6.06 |
| 17 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 18 |
94-4046 |
PIN Price: $17.49 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
94-4044 |
DISCONTINUED Price: Call Us |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532136888. Price: $11.99 |
| 20 |
94-3943 |
COVER-NEUTRAL Price: $453.70 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
94-9282 |
BRACKET-BALANCE, COUNTER Price: $177.15 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 22 |
94-3944 |
GASKET-RETURN, NEUTRAL Price: $24.47 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 23 |
94-3901 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
94-4029 |
RING-RETAINING, INT. Price: $3.22 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 25 |
94-3971 |
BEARING-BALL Price: $122.44 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
94-3903 |
PINION-DRIVE, PUMP Price: $387.49 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK Price: $34.99 |
| 27 |
94-3994 |
RING-RETAINING Price: $5.51 |
| 28 |
819111016 |
Washer 11/32 X 5/8 X 16 Ga Price: $5.99 |
| 28 |
94-3905 |
GEAR-DRIVE, PUMP Price: $829.72 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
94-3953 |
NUT-HEX Price: $27.51 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 30 |
95-7875 |
YOKE-2 SPEED Price: $537.12 |
| 31 |
251-8 |
BEARING-BALL Price: $30.06 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 32 |
94-3963 |
RING-RETAINING, EXT Price: $2.73 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 33 |
94-3919 |
DISCONTINUED Price: Call Us |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 36 |
95-2728 |
SPACER-DRIVE, FINAL Price: $63.24 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
94-3997 |
RING-RETAINING Price: $7.62 |
| 38 |
532132823 |
IDLER SPRING SPACER Price: $5.99 |
| 38 |
84-0310 |
DISCONTINUED Price: Call Us |
| 39 |
94-3960 |
BEARING-BALL Price: $88.70 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 40 |
94-3942 |
BEARING-BALL Price: $100.14 |
| 41 |
94-3904 |
SHAFT-PUMP Price: $521.36 |
| 42 |
94-3906 |
SHAFT-MOTOR Price: $514.39 |
| 43 |
93-5381 |
BRACKET Price: $40.96 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 44 |
94-4004 |
SCREW-HF Price: $8.60 |
| 45 |
95-7038 |
HOUSING-HYD, VARIABLE Price: $3,636.82 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
94-3975 |
PIN Price: $5.80 |
| 47 |
94-4058 |
SWASHPLATE-VARIABLE Price: $1,891.63 |
| 48 |
75-0400 |
PLATE-THRUST Price: $41.27 |
| 49 |
94-3921 |
DISCONTINUED Price: Call Us |
| 50 |
94-3956 |
BEARING-BALL Price: $48.55 |
| 51 |
94-3974 |
PIN Price: $1.02 |
| 52 |
94-3957 |
BEARING-NEEDLE Price: $91.74 |
| 53 |
94-3973 |
PLATE-VALVE Price: $837.09 |
| 54 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 55 |
532151785 |
KIT.CAM.ROLLER.42".SERVICE This part replaces 532140084. Price: $34.99 |
| 55 |
75-0470 |
CYLINDER BLOCK KIT Price: $1,746.91 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 56 |
94-3992 |
DISCONTINUED Price: Call Us |
| 57 |
94-3946 |
SHAFT-TRUNNION Price: $168.35 |
| 58 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 59 |
94-3967 |
SWASHPLATE-PUMP, VARIABLE Price: $273.27 |
| 60 |
94-4051 |
O-RING Price: $1.89 |
| 61 |
532131950 |
SPRING EXTENSION Price: $7.99 |
| 61 |
94-3978 |
PLATE-THRUST Price: $128.58 |
| 62 |
94-3934 |
SHAFT-TRUNNION Price: $109.35 |
| 63 |
94-4040 |
BEARING-BALL Price: $56.25 |
| 64 |
94-3932 |
RING-RETAINING Price: $2.27 |
| 65 |
94-4050 |
SCREW-HF Price: $12.78 |
| 66 |
94-4048 |
HOUSING-DIPSTICK Price: $284.76 |
| 67 |
94-4049 |
DISCONTINUED Price: Call Us |
| 68 |
532144200 |
V-BELT TRIPATH Price: $39.99 |
| 68 |
95-7036 |
GUIDE-SLOT Price: $67.18 |
| 69 |
95-2730 |
SPRING Price: $43.18 |
| 70 |
95-2729 |
RING-RETAINING Price: $3.75 |
| 83 |
532120958 |
WASHER Price: $5.99 |
| 84 |
531150901 |
SERVICE KIT BELT KEEPER This part replaces 532156084. Price: $3.99 |
| 85 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 90 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 17/32 X 7/8 X 16 Ga Price: $3.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532136420 |
COVER MULCH 42" Price: $13.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
819061216 |
WASHER Price: $3.99 |
| 104 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130758. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532155197. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532155198. Price: $32.99 |
| 113 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 114 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110504. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532143723 |
BRACKET.EXTRUDED.GAGE.WHEEL Price: $8.99 |
| 125 |
876020816 |
Cotter Pin Price: $4.99 |
| 128 |
532153390 |
WASHER FELT Price: $3.99 |
| 129 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 130 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 131 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 132 |
819132203 |
Washer 13/32 x 1-3/8 x 3 Ga. Price: $4.99 |
| 133 |
872110622 |
BOLT Price: $3.99 |
