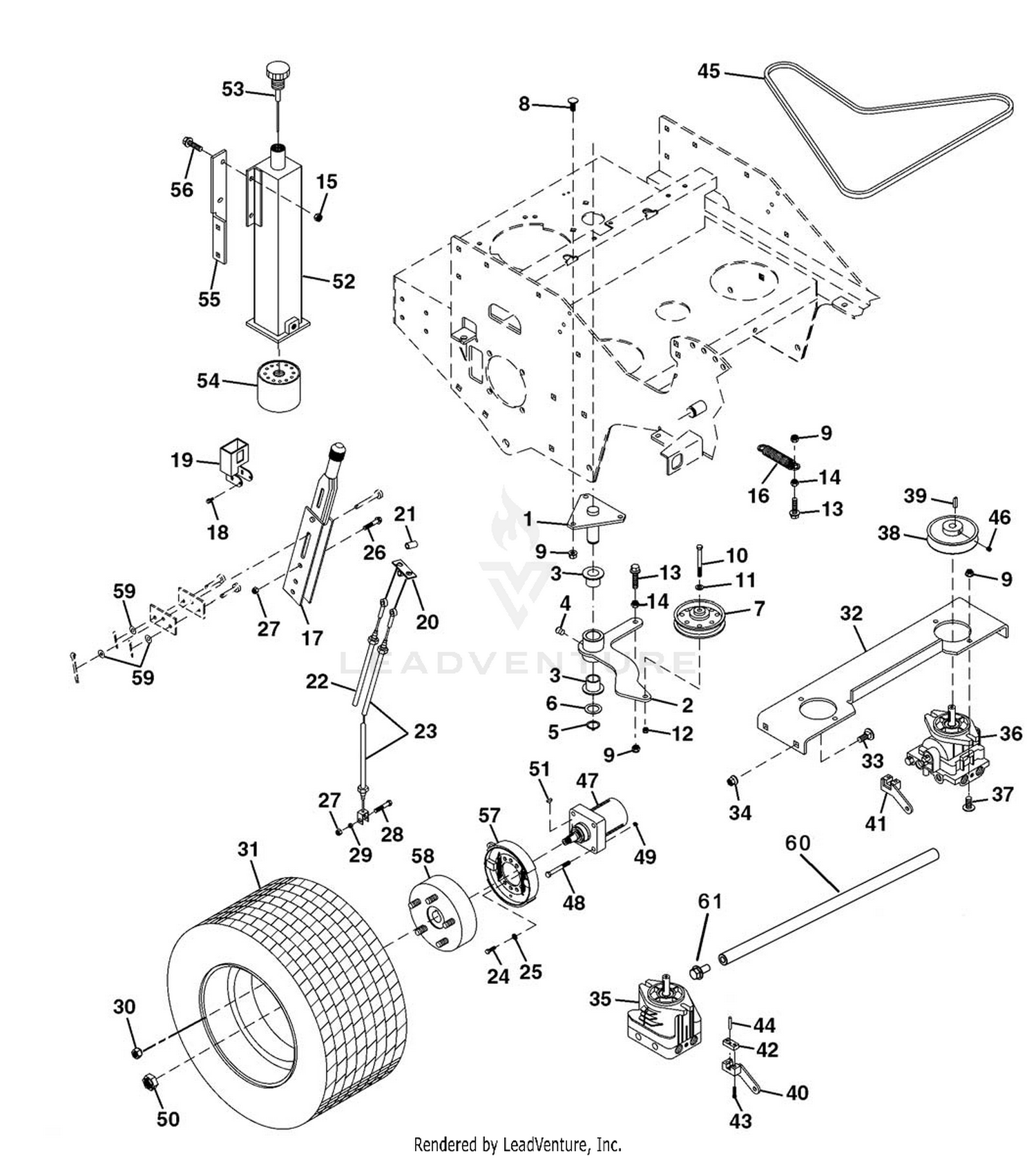

| Ref | Part Number | Description |
|---|
| 1 |
GDA10036 |
PIVOT, IDLER MOUNTING, WELDMEN Price: Call Us |
| 2 |
D25059 |
WLDT, ARM IDLER Price: Call Us |
| 3 |
D18076 |
BRG, FLG 1.00X1.25X1.00 Price: $6.45 |
| 4 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 5 |
D14104 |
RING, SNAP Price: Call Us |
| 6 |
24H1441 |
WASHER, METALLIC, ROUND HOLE Price: Call Us |
| 7 |
GDA10032 |
PULLEY, FLAT 4.50X.375 W/BRG Price: $38.95 |
| 8 |
03M7192 |
BOLT,RH,SQNECK,JDS137,M10X1.5X Price: Call Us |
| 9 |
14M7518 |
LOCKNUT,FL,ISO7044,M10X1.5-10- Price: $3.45 |
| 10 |
19H1801 |
BOLT, 3/8 X 2.00 A17D ZINC HEX Price: Call Us |
| 11 |
24H1305 |
WASHER .406X.812X.065 JDS24 ST Price: Call Us |
| 12 |
06500831 |
NUT-NYL .38-16 G5 ZCC This part replaces D14010. Price: $2.95 |
| 13 |
19M8162 |
SCREW,HEX,FL,JDS121,M10X1.5X40 Price: Call Us |
| 14 |
14M7152 |
NUT,JDS182,M10X1.5-04-ZN Price: Call Us |
| 15 |
14M7517 |
LOCKNUT, M10X1.50 NYLOC Y Price: Call Us |
| 16 |
D18071 |
SPRING, EXT .900X.135X4.50 Y Price: $10.45 |
| 17 |
D28019 |
LEVER, BRAKE Price: Call Us |
| 18 |
37M7059 |
SCREW,SELFT,FL,JDS145,M5X.8X12 Price: Call Us |
| 19 |
00200326 |
WLDT, BRAKE SWITCH BRACKET Price: Call Us |
| 20 |
D25014 |
WELDMENT, BRAKE RETAINER Price: Call Us |
| 21 |
D23062 |
BUSHING Price: Call Us |
| 22 |
D28099 |
CABLE, RH BRAKE Price: $117.45 |
| 23 |
D28100 |
CABLE, LH BRAKE Price: $101.95 |
| 24 |
19H1900 |
BOLT, 5/16 X .75 A17D ZINC HEX Price: Call Us |
| 25 |
24H1136 |
WASHER,.344x.688x.065"-zinc Price: Call Us |
| 26 |
19M8319 |
SCREW,HEX,FL,JDS121,M8X1.25X50 Price: Call Us |
| 27 |
H137328 |
LOCKNUT,M8X1.25,FLANGED ZN Price: $2.95 |
| 28 |
19M8008 |
BOLT, M8-1.25 X 35 HEX HEAD 10 Price: Call Us |
| 29 |
14M7151 |
NUT,FLAT,ISO4035,M8X1.25-04-ZN Price: Call Us |
| 30 |
06500926 |
NUT- WHEEL .50-20 ZCC This part replaces 00960526. Price: $1.45 |
| 31 |
GDA10000 |
TIRE, ASSEMBLY 23X9.5-12 TURF Price: Call Us |
| 32 |
GDU10096 |
SUPPORT, HYDRAULIC PUMP Price: Call Us |
| 33 |
03M7199 |
BOLT,RHSSN M12X1.75X35 JDS137 Price: Call Us |
| 34 |
H137329 |
LOCKNUT, M12X1.75 DFLCTFLG 10Y Price: $3.10 |
| 35 |
D28227 |
PUMP, HYDRO Price: Call Us |
| 36 |
D28228 |
PUMP, HYDRO Price: Call Us |
| 37 |
03M7192 |
BOLT,RH,SQNECK,JDS137,M10X1.5X Price: Call Us |
| 38 |
TCA15316 |
ASSY, PUMP PULLEY W/SET SCREW Price: $45.95 |
| 39 |
D18067 |
SHAFT KEY Price: $5.95 |
| 40 |
D25146 |
WLDT, RH PUMP ARM Price: Call Us |
| 41 |
D25147 |
WLDT, LH PUMP ARM Price: Call Us |
| 42 |
D13336 |
PLATE, PUMP A'TCH Price: Call Us |
| 43 |
19H2975 |
SCREW, HEX HEAD Price: Call Us |
| 44 |
34M5722 |
PIN, SPRING Price: Call Us |
| 45 |
D28125 |
DRIVE BELT Price: $45.95 |
| 46 |
22H907 |
SCREW, SET, SQUARE HEAD Price: Call Us |
| 47 |
00200882 |
MOTOR, RH HYDRO-GEAR WHEEL Price: Call Us |
| 48 |
19H1930 |
SCREW,JDS19-0.500-13UNC-2AX2.5 Price: Call Us |
| 49 |
H32811 |
LOCKNUT, 1/2-13 CENTER Y Price: Call Us |
| 50 |
MT2119 |
NUT, W/LOCKING PATCH Price: Call Us |
| 51 |
D18207 |
KEY, 5/16 X 3/4 WOODRUFF #B Price: Call Us |
| 52 |
TCA15373 |
RESERVOIR, HYDRAULIC Price: $299.95 |
| 53 |
TCA15122 |
CAP, FILLER, OIL Price: $24.45 |
| 54 |
GDA10137 |
FILTER, OIL Price: $25.45 |
| 55 |
00200836 |
BRACKET, RESERVOIR MOUNT Price: Call Us |
| 56 |
03M7017 |
BLT-RDHDSQXLNKM10-1.50X25 8.8Y Price: Call Us |
| 57 |
D28089 |
BRAKE SHOE Price: Call Us |
| 58 |
D28088 |
DRUM, BRAKE Price: Call Us |
| 59 |
24H1776 |
WASHER, 5/16 X 3/4 FLAT Price: Call Us |
| 60 |
GDU10124 |
TIE BAR Price: Call Us |
| 00200883 |
MOTOR, |
LH HYDRO-GEAR WHEEL Price: Call Us 00200883 |
