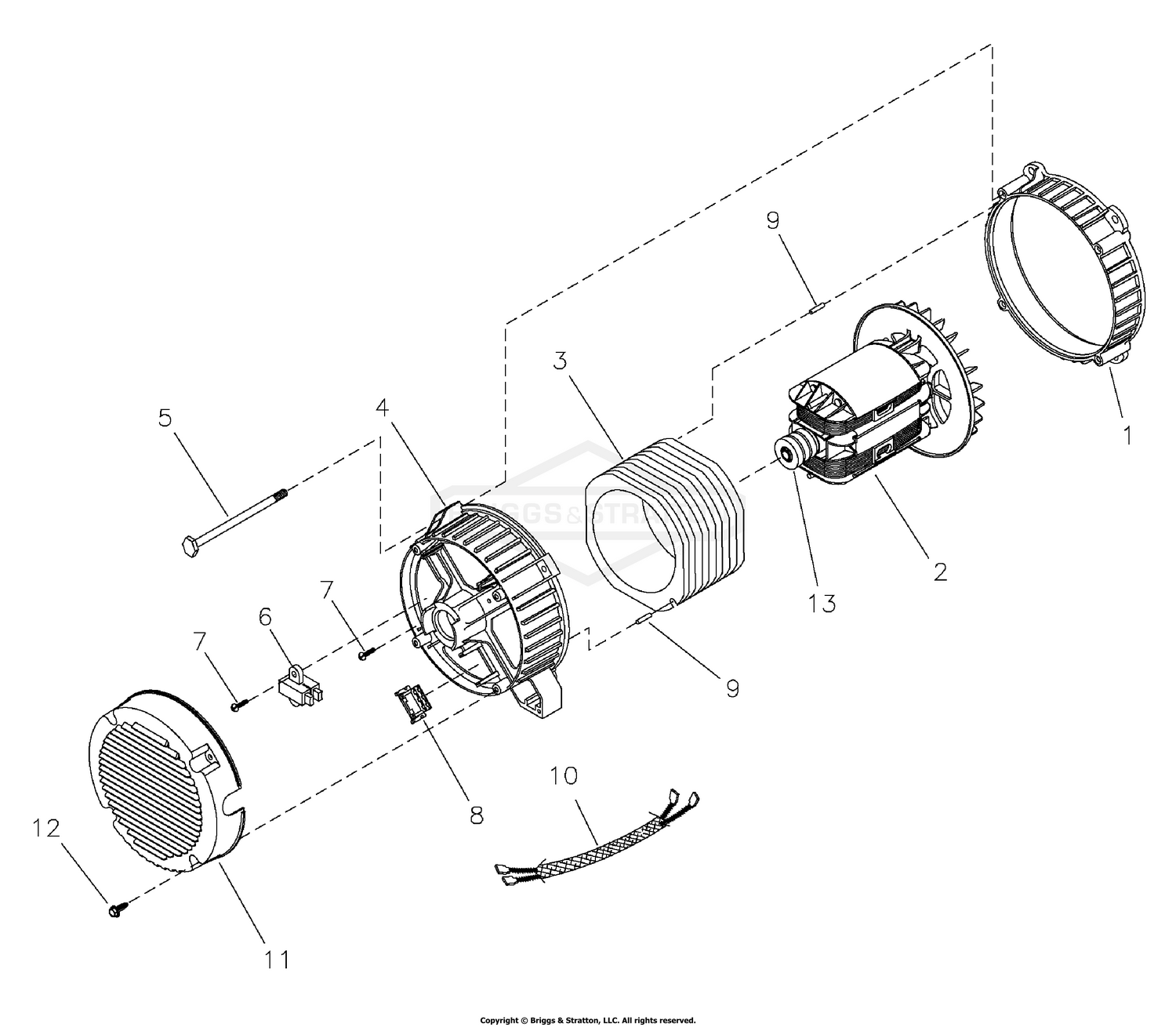

Alternator Group
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 209599GS | ADAPTER, Alternator Price: $33.00 |
| 2 | 195430GS | ROTOR Price: $287.25 |
| 3 | 193091AGS | STATOR Price: $649.99 |
| 4 | 193336GS | CARRIER, Bearing Price: $36.50 |
| 5 | 86308BGS | SCREW Price: $1.85 |
| 6 | 66386GS | ASSEMBLY, Brush Price: $21.52 |
| 7 | 49815GS | HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 8 | 22694GS | CONNECTOR Price: $5.44 |
| 9 | 81917GS | PIN Price: $2.79 |
| 10 | 193472GS | HARNESS, Wiring Price: $15.60 |
| 11 | 192906GS | COVER, Rear Bearing Price: $14.47 |
| 12 | 74908GS | TAPTITE Price: $2.69 |
