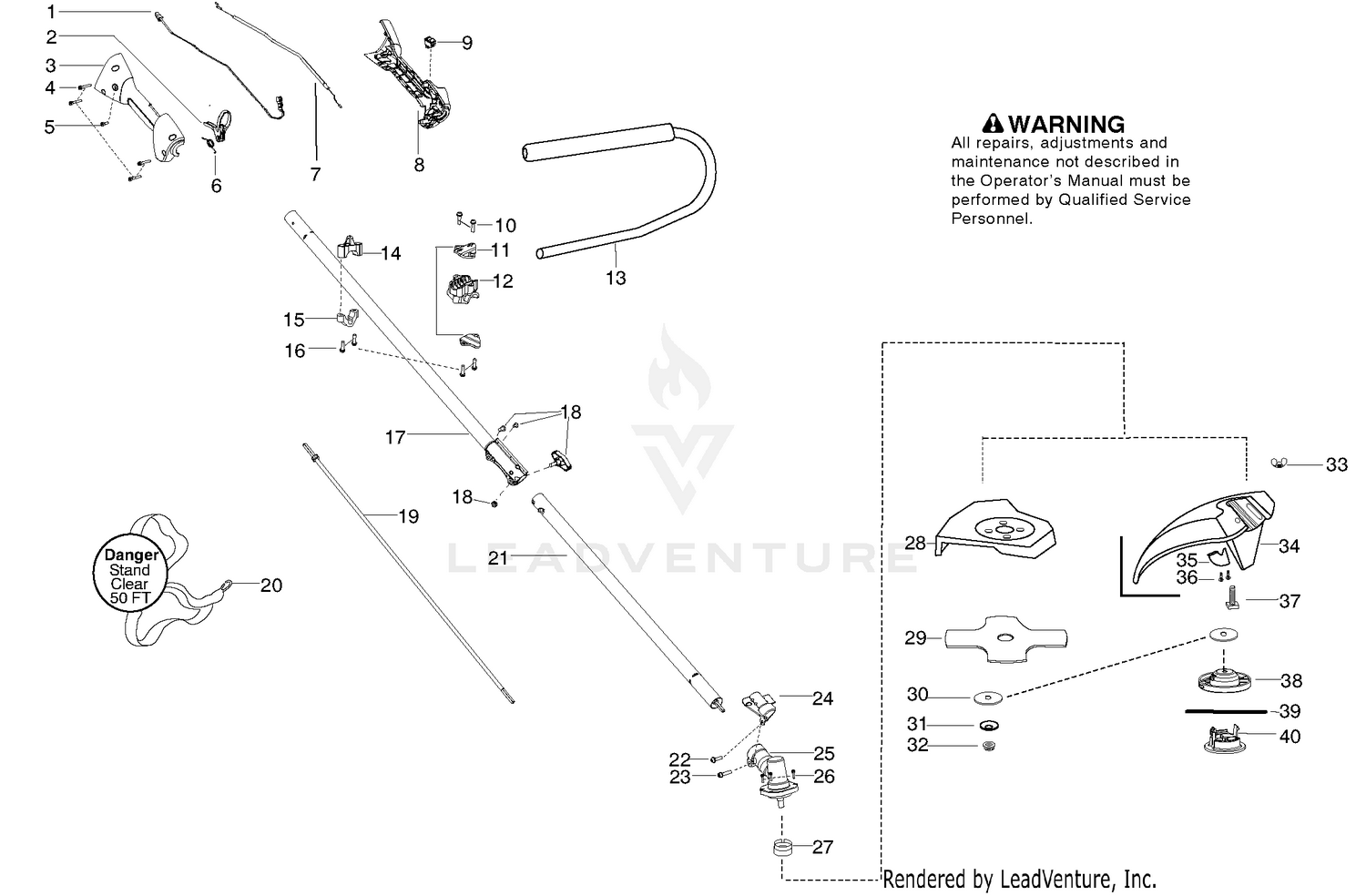

| Ref | Part Number | Description |
|---|
| 1 |
545191801 |
Assy-Switch Wire Price: $7.99 |
| 2 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 3 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 3 |
545187602 |
Housing -Throttle (RH) Price: $9.99 |
| 4 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 4 |
530016449 |
Screw M4 Price: $1.99 |
| 5 |
115-7263 |
SCREW-LOCK, BEARING Price: $17.70 |
| 5 |
530015805 |
Screw 10-14 x 1/2 Price: $1.99 |
| 6 |
106-2648-01 |
BEDBAR Price: $367.64 |
| 6 |
545190001 |
Spring-Trigger Price: $2.99 |
| 7 |
119-4150 |
WASHER-FLAT Price: $0.64 |
| 7 |
545199301 |
Cable - Throttle Price: $9.99 |
| 8 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 8 |
545187502 |
Housing-Throttle (LH) Price: $9.99 |
| 9 |
117-9493 |
BOLT-BEDBAR Price: $5.50 |
| 9 |
545008040 |
Kit-Switch Price: Call Us |
| 10 |
140-9234 |
NUT-HEX LOCK This part replaces 119-4154. Price: $0.92 |
| 10 |
530015886 |
Screw 10-14 x 13/16 Price: $1.99 |
| 11 |
137-8511 |
ES REEL+,LOW DRAG (21), 8 BLD This part replaces 119-4103. Price: $529.90 |
| 11 |
530058563 |
Clamp - Bracket Price: $2.99 |
| 12 |
119-4153 |
RUBBER BUSHING ASM Price: $6.66 |
| 12 |
545024501 |
Clamp - Handlebar Price: $2.99 |
| 13 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 13 |
530071974 |
Kit - Handlebar Price: $17.99 |
| 14 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 14 |
545113301 |
Clamp - Upper Harness Price: $2.99 |
| 15 |
108-4302 |
BEDKNIFE-TOURNAMENT, EXTENDED Price: $60.45 |
| 15 |
108-4303 |
BEDKNIFE-MICROCUT, EXTENDED Price: $68.13 |
| 15 |
115-1880 |
BEDKNIFE-EDGEMAX, MICROCUT Price: $129.33 |
| 15 |
115-1881 |
BEDKNIFE-EDGEMAX, TOURNAMENT Price: $129.33 |
| 15 |
137-6097 |
BEDKNIFE-FAIRWAY This part replaces 63-8600. Price: $61.01 |
| 15 |
545056601 |
Clamp - Lower Harness Price: $1.99 |
| 15 |
93-4262 |
BEDKNIFE-MICROCUT Price: $58.41 |
| 15 |
93-4263 |
BEDKNIFE-TOURNAMENT CUT Price: $62.54 |
| 15 |
93-4264 |
BEDKNIFE-LOW CUT Price: $58.41 |
| 16 |
530015940 |
Screw - 10-14 x .095 Price: $1.99 |
| 18 |
545213801 |
ASSY COUPLER BLACK This part replaces 575291801. Price: $8.99 |
| 19 |
545132002 |
Flexshaft - lower Price: $3.99 |
| 20 |
530094417 |
Shoulder Strap This part replaces 530094408. Price: $20.65 |
| 21 |
545180883 |
Kit - Lower Drive Shaft Price: $24.99 |
| 22 |
530015775 |
Screw - 8-16 x .593 Price: $1.99 |
| 23 |
530016014 |
Screw - 12-24 x .960 Price: $1.99 |
| 24 |
545150701 |
Bracket - Shield SST Price: $2.99 |
| 25 |
530096100 |
Assy - Gearbox 1" Brushcutter Price: $54.99 |
| 26 |
530016312 |
Screw 10-24 Price: $1.99 |
| 27 |
530095815 |
Dust cup Price: $6.99 |
| 28 |
530071383 |
Kit - Metal Blade Shield Price: $9.99 |
| 29 |
530055892 |
Assy. - Blade Price: $27.99 |
| 30 |
530095816 |
Washer Price: $6.99 |
| 31 |
530016240 |
Washer - Belleville Price: $1.99 |
| 32 |
530015793 |
Nut - Flange (L.H.) Price: $1.99 |
| 33 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 35 |
530052286 |
Line Limiter Price: $1.54 |
| 36 |
530015814 |
Screw - 10-14 x 3/4 Price: $1.99 |
| 37 |
530015820 |
Bolt - 1/4-20 x 1-1/4 Price: $1.99 |
| 38 |
545053902 |
Assy - Fixed Line Head This part replaces 545049401. Price: $22.99 |
| 39 |
952711635 |
Line - Accy. 12 pcs. (.115 Round) Price: $6.95 |
| 40 |
545049501 |
Cap - Fixed Line Price: $5.99 |
