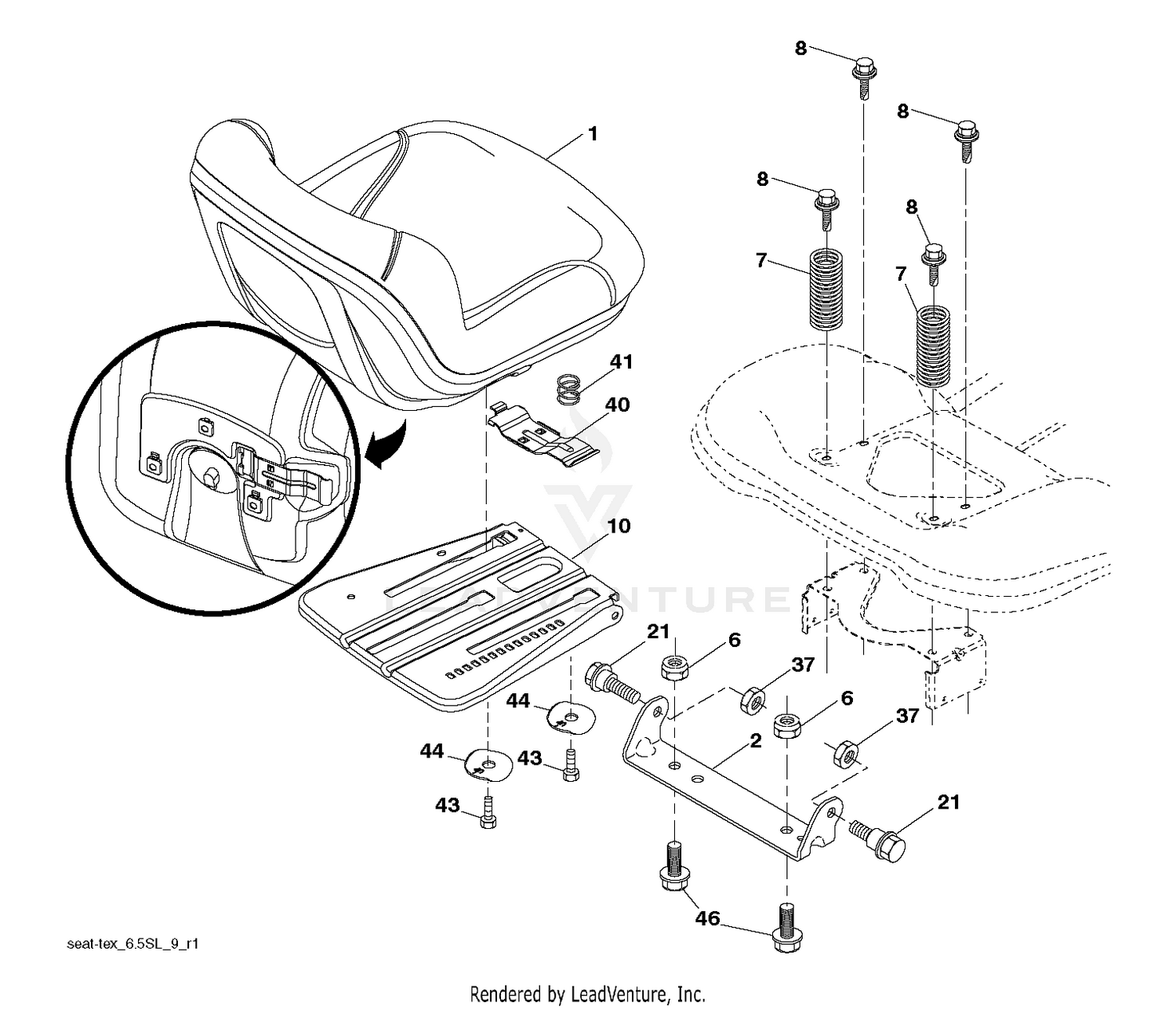

| Ref | Part Number | Description |
|---|
| 1 |
117-9532 |
DISCONTINUED-ORDER COMPONENTS This part replaces 99-1481. Price: Call Us |
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
99-1495 |
ADAPTER-FAN Price: $76.23 |
| 3 |
93-2049 |
TANK-OVERFLOW Price: $89.55 |
| 4 |
93-2090 |
FAN-ENGINE Price: $222.39 |
| 5 |
93-2445 |
BRACKET-ALTERNATOR, UPPER Price: $79.79 |
| 6 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
51-2070 |
NUT Price: $0.68 |
| 7 |
589483501 |
SPRING.COMPRESS.SEAT.TAPERED Price: $7.99 |
| 8 |
108-3283 |
HOSE-FUEL This part replaces 94-1348. Price: $4.60 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
93-2048 |
CAP-TANK, OVERFLOW Price: $39.28 |
| 10 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 587232002. Price: $49.99 |
| 11 |
100-3190-03 |
ENGINE MOUNT ASM Price: $241.12 |
| 12 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 13 |
99-1473-03 |
MOUNT-ENGINE, FRONT Price: $248.08 |
| 14 |
93-2020-01 |
BRACKET-SUPPORT Price: $40.67 |
| 15 |
33114-020 |
SCREW-HH Price: $0.28 |
| 16 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 17 |
93-2446 |
BRACKET-ALTERNATOR, LOWER Price: $28.92 |
| 18 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 19 |
323-11 |
SCREW-HH Price: $1.08 |
| 20 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER Price: $2.99 |
| 21 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 22 |
99-9209 |
ALTERNATOR Price: $714.65 |
| 23 |
99-8153 |
BELT-V Price: $75.56 |
| 24 |
99-4189-03 |
BRACKET-ENGINE, LH Price: $26.50 |
| 25 |
99-4188-03 |
BRACKET-ENGINE, RH Price: $28.59 |
| 26 |
33113-016 |
SCREW-HH Price: $0.34 |
| 27 |
99-4190-03 |
PLATE-PUMP Price: $249.13 |
| 28 |
93-2588 |
SPACER-UPPER Price: $38.68 |
| 29 |
93-2174 |
SPACER Price: $76.28 |
| 30 |
33116-130 |
SCREW-HH Price: $5.61 |
| 31 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 32 |
33026-00 |
NUT-HEX Price: $1.02 |
| 33 |
33115-050 |
SCREW-HH Price: $1.36 |
| 34 |
99-4240 |
BRACE-WIREFORM, LH Price: $41.97 |
| 35 |
99-4238 |
BRACE-WIREFORM, RH Price: $41.15 |
| 36 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 37 |
323-4 |
SCREW-HH Price: $1.02 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 38 |
94-4538 |
SPACER-MOUNT Price: $9.70 |
| 39 |
33116-120 |
SCREW-HH Price: $1.70 |
| 40 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 41 |
94-8156-03 |
DEFLECTOR-FAN Price: $37.85 |
| 42 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 43 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 44 |
501051801 |
WASHER.WINGED.3/8ID.1.5OD Price: $3.99 |
| 45 |
66-6480 |
WASHER Price: $1.29 |
| 46 |
588090401 |
BOLT.3/8-16X1;1.25OD.WSHR.SEMS Price: $5.99 |
| 46 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
