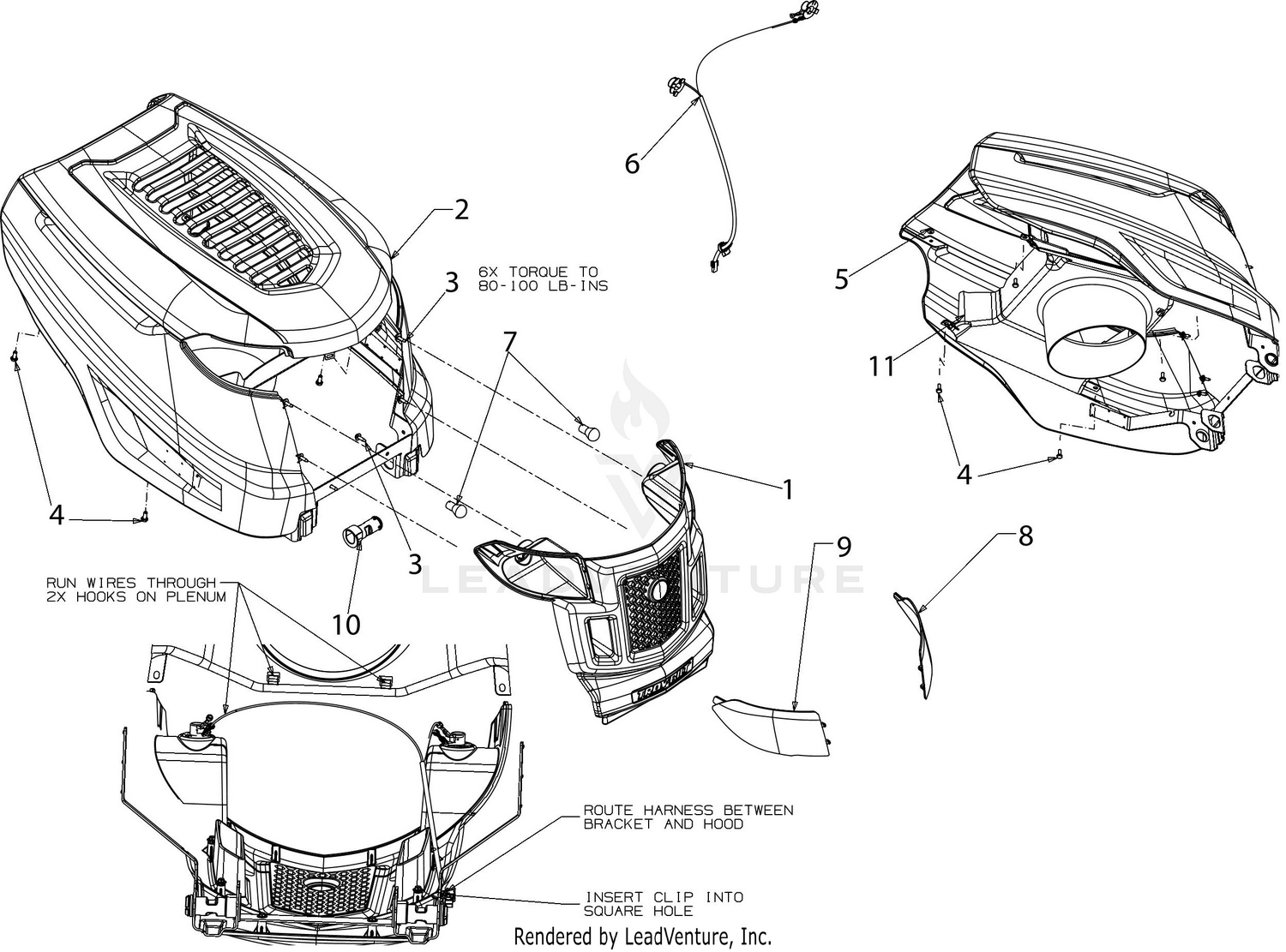

Hood & Grille
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 631-04272 | GRILLE ASSEMBLY (TROY-BILT) Price: $61.79 |
| 2 | 683-05178-0638 | HOOD ASSEMBLY(K STYLE) (MTD RED) Not Available Price: |
| 3 | 710-06147 | SCREW 1/4-10 x .750 Price: $3.08 |
| 4 | 710-0751 | SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 5 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 6 | 925-06463 | HEADLIGHT HARNESS Price: $23.50 |
| 7 | 925-0963 | MINIATUURE BULB 12V Price: $6.73 |
| 8 | 731-06095 | LENS (LH) Price: $10.81 |
| 9 | 731-06096 | LENS (RH) Price: $10.74 |
| 10 | 731-10070A | HOOD PIVOT PIN Price: $5.18 |
