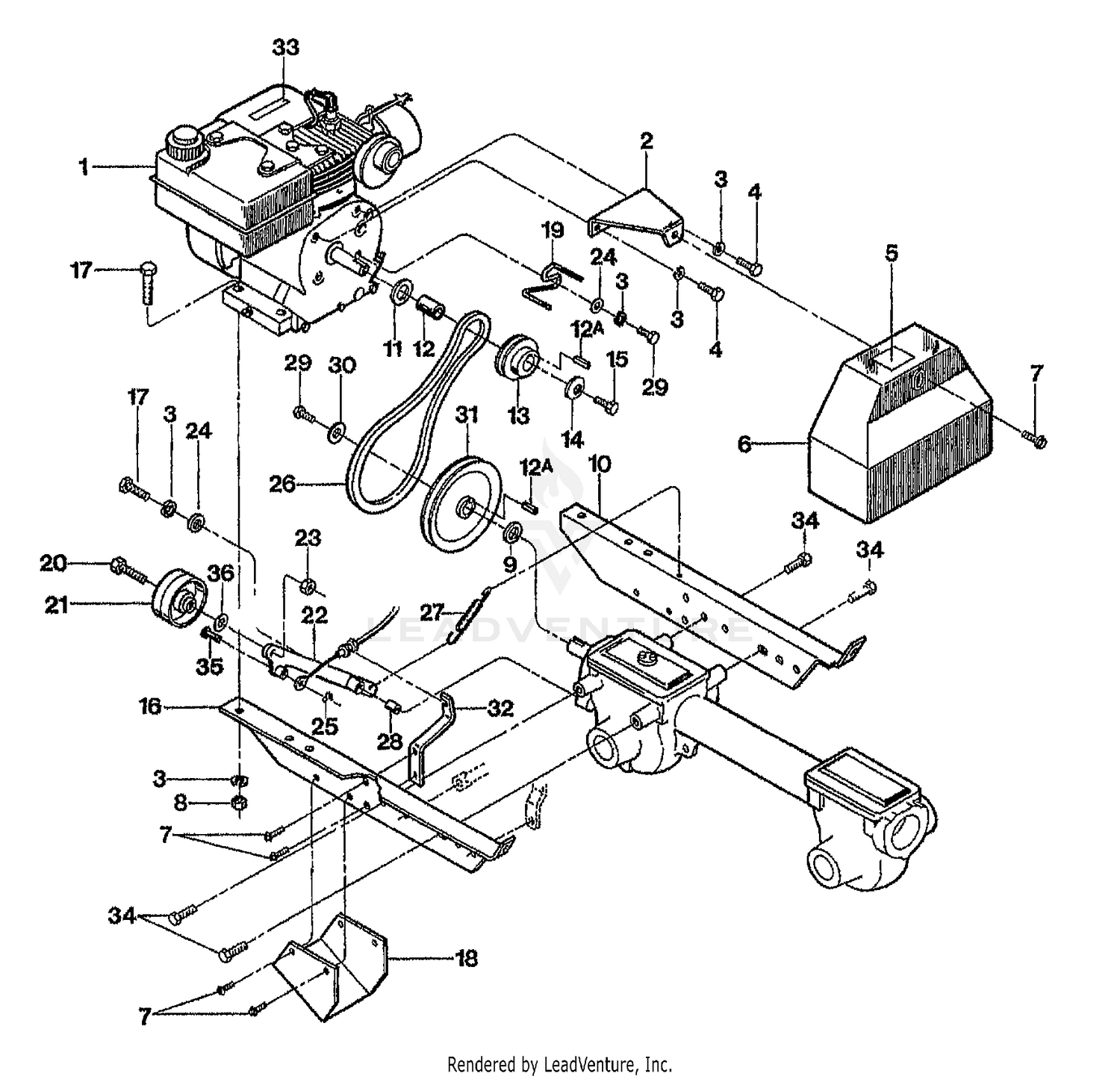

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
ENGINE, TECUMSEH 3HP (H30-35387S) |
| 2 |
1916112001 |
BRACKET-BELT COVER Not Available This part replaces 55079. Price: |
| 3 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 4 |
1111696 |
HEX SCREW Not Available Price: |
| 5 |
55053 |
DECAL-HOT SURFACE Not Available Price: |
| 6 |
55086 |
COVER-BELT W/DECAL 55053 Price: Call Us |
| 7 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 9552. Price: $3.86 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 9 |
GW-50027 |
Support Washer This part replaces 50027. Price: $5.94 |
| 10 |
55077-2 |
BRACKET, ENGINE, RIGHT Not Available Price: |
| 11 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 12 |
55036 |
SPACER Not Available Price: |
| 12A |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 13 |
GW-55035 |
ENGINE PULLEY Not Available This part replaces 55035. Price: |
| 14 |
9925 |
WASHER-.994X.413X.145 Price: Call Us |
| 15 |
710-1039 |
SCREW 3/8-24 X 1.00 GR8 This part replaces 1100009. Price: $4.02 |
| 16 |
55077-1 |
ENGINE BRA Not Available Price: |
| 17 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 1100799. Price: $3.75 |
| 18 |
55080 |
BELT GUARD/PULLE Not Available Price: |
| 19 |
GW-55039 |
BELT STOP Not Available This part replaces 55039. Price: |
| 20 |
9558 |
BOLT-HH 3/8-16X1.5 FTH ZP Price: Call Us |
| 21 |
756-04170 |
Forward Idler Pulley This part replaces 9090. Price: $31.29 |
| 22 |
55078 |
ARM-IDLER PNT Not Available Price: |
| 23 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 24 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1100255. Price: $3.66 |
| 25 |
9386 |
RING-KLIP .188 DIA Price: Call Us |
| 26 |
954-04089 |
V-BELT 3L x 23.750 This part replaces 55037. Price: $22.47 |
| 27 |
732-04085 |
Extension Spring, 480 OD x 500 LG This part replaces 55034. Price: $12.40 |
| 28 |
55033 |
BUSHING - IDLER LEVER Not Available Price: |
| 29 |
710-0157 |
HEX SCREW 5/16-24 x .75 This part replaces 1100004. Price: $3.90 |
| 30 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 31 |
55031 |
TRANSMISSION PULLEY Not Available Price: |
| 32 |
55084 |
BRACKET - CABLE MOUNT Not Available Price: |
| 33 |
1900766 |
DECAL-STARTING STA Not Available Price: |
| 34 |
90038 |
SCR-HFLK 5/16-18X.62 G5ZP Price: Call Us |
| 35 |
9856 |
PIN-CLEVIS CABLE Price: Call Us |
