Home / OPE / BT15068GNSN / 02882, Air Conditioner and Heater Blower Kit, Mauser KS-524 Cab / Air Conditioner and Heater Blower Assembly

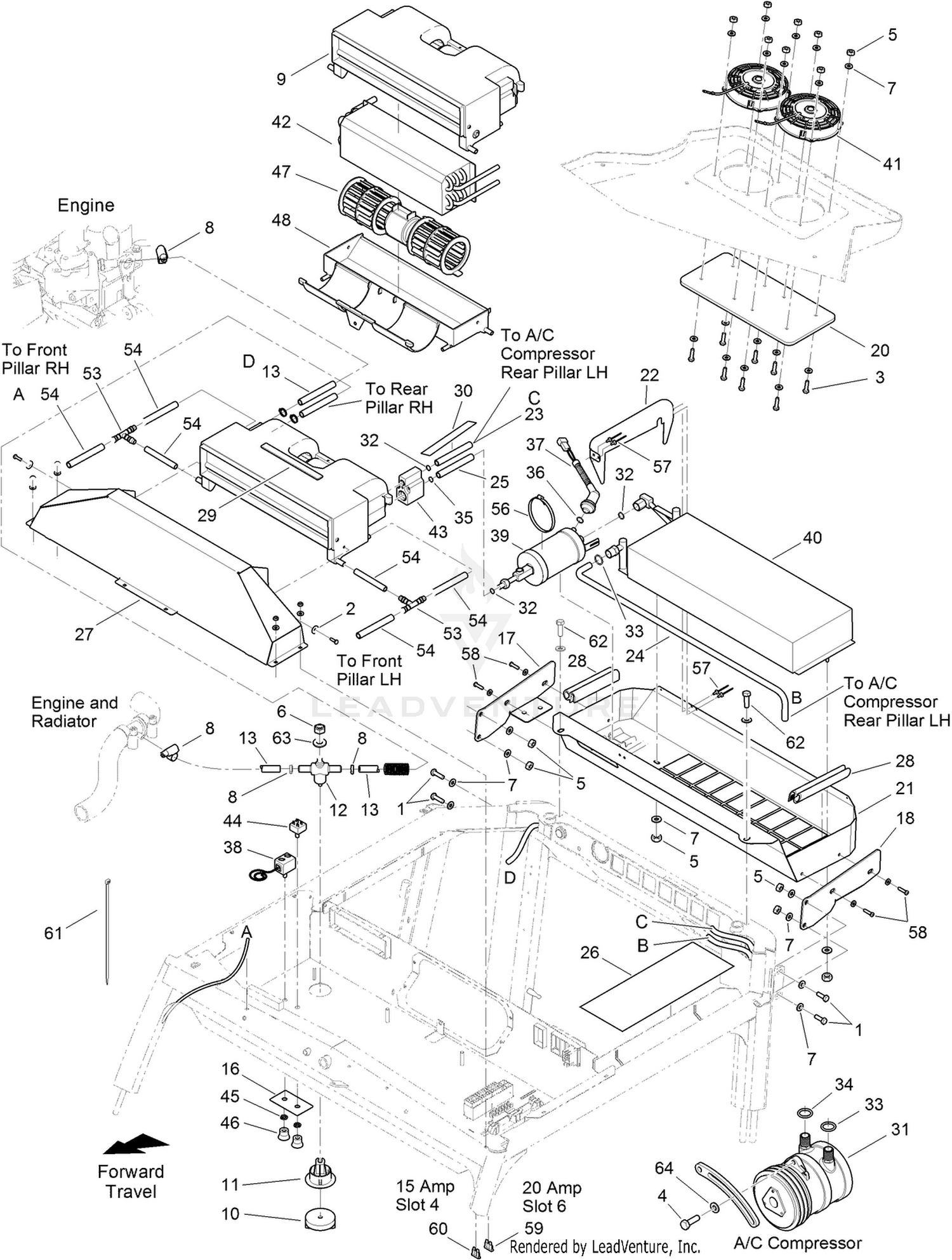

Air Conditioner and Heater Blower Assembly

Air Conditioner and Heater Blower Assembly

Parts (55)

RefPart NumberDescription
1 03162 STEEL BOLT Price: $1.39
2 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
3 09363 SETSCREW M6 X 20 Price: $1.31
4 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
5 09438 NUT M6 X 1.5 PLAIN Price: $1.39
6 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
7 09472 WASHER-PLAIN Price: $1.25
8 111-1716 CLIP JUBILEE 11MM - 17MM Price: $9.75
9 111-1460 AIR-CON+HEATER BLOWER KIT Price: $5,569.19
10 111-1560 HANDLE TEMPERATURE CONTROL Price: $6.72
11 111-1561 MOUNT TEMP CONTROL HANDLE Price: $6.53
12 111-1562 TAP - HEATER HOSE Price: $56.78
13 111-1566 HOSE-HOT WATER Price: $32.79
16 111-1585 BASE - A/C SWITCH Price: $6.40
17 111-1586 BRACKET MOUNTING - A/C R/H Price: $65.82
18 111-1587 BRACKET MOUNTING - A/C L/H Price: $63.67
20 111-1589 PLATE COVER - A/C FAN Price: $71.42
21 111-1590 BRACKET - CONDENSOR Price: $176.89
22 111-1591 PLATE - A/C SEPARATION Price: $35.74
23 111-1592 HOSE - CLIMATIC 1 Price: $366.10
24 111-1593 HOSE - CLIMATIC 2 Price: $356.17
25 111-1594 HOSE - CLIMATIC 3 Price: $139.23
26 111-1595 COVER - A/C HOSE Price: $23.30
27 111-1596 AIR DUCT - HEATER WITH A/C Price: $333.84
28 111-1597 SEALING STRIP Price: $46.93
29 111-1598 FOAM STRIP Price: $3.12
30 111-1599 SEALING STRIP Price: Call Us
31 111-1600 COMPRESSOR - 12V WITH CLUTCH Price: $1,182.48
32 111-1601 SEAL - O RING 3/8" Price: $14.56
33 111-1602 SEAL - O RING 1/2" Price: $15.05
34 111-1603 SEAL - O RING 5/8" Price: $15.05
35 111-1604 SEAL - O RING 3/4" Price: $15.05
36 111-1605 SEAL - O RING 6.5-1.5 Price: $5.23
37 111-1606 SWITCH - PUSH BUTTON Price: $213.53
38 111-1607 TEMPERATURE REGULATOR Price: $271.66
39 111-1608 COLLECTING TANK - DRYERS Price: $260.58
40 111-1609 CONDENSOR Price: $897.34
41 111-1610 AXIAL BLOWER Price: $273.41
42 111-1611 HEAT EXCHANGER Price: $1,301.15
43 111-1612 EXPANSION VALVE Price: $464.69
44 111-1613 FAN SWITCH Price: $69.86
45 111-1614 NUT - FAN SWITCH FIXING Price: $11.45
46 111-1615 KNOB - FAN SWITCH Price: $21.86
47 111-1616 BLOWER WHEEL Price: $73.04
48 111-1617 BLOWER LOWER PART Price: $187.79
53 111-1622 T-FITTING - A/C HOSE Price: $18.05
54 111-1623 WATER DRAIN HOSE Price: $16.89
56 111-1625 HOSE CLAMP - 77-90MM Price: $10.09
57 111-1627 RIVET - 4X12 Price: $1.43
58 111-1628 SCREW Price: $1.25
59 111-1642 FUSE - 20 AMP Price: $1.25
60 70-09-151 FUSE-15A Price: $1.35
61 HY3966 STRAP CABLE Price: $1.34
62 09368 SCREW This part replaces ZDH1H020U. Price: $1.40
63 ZWP1H000U WASHER (M8) Price: $1.40
