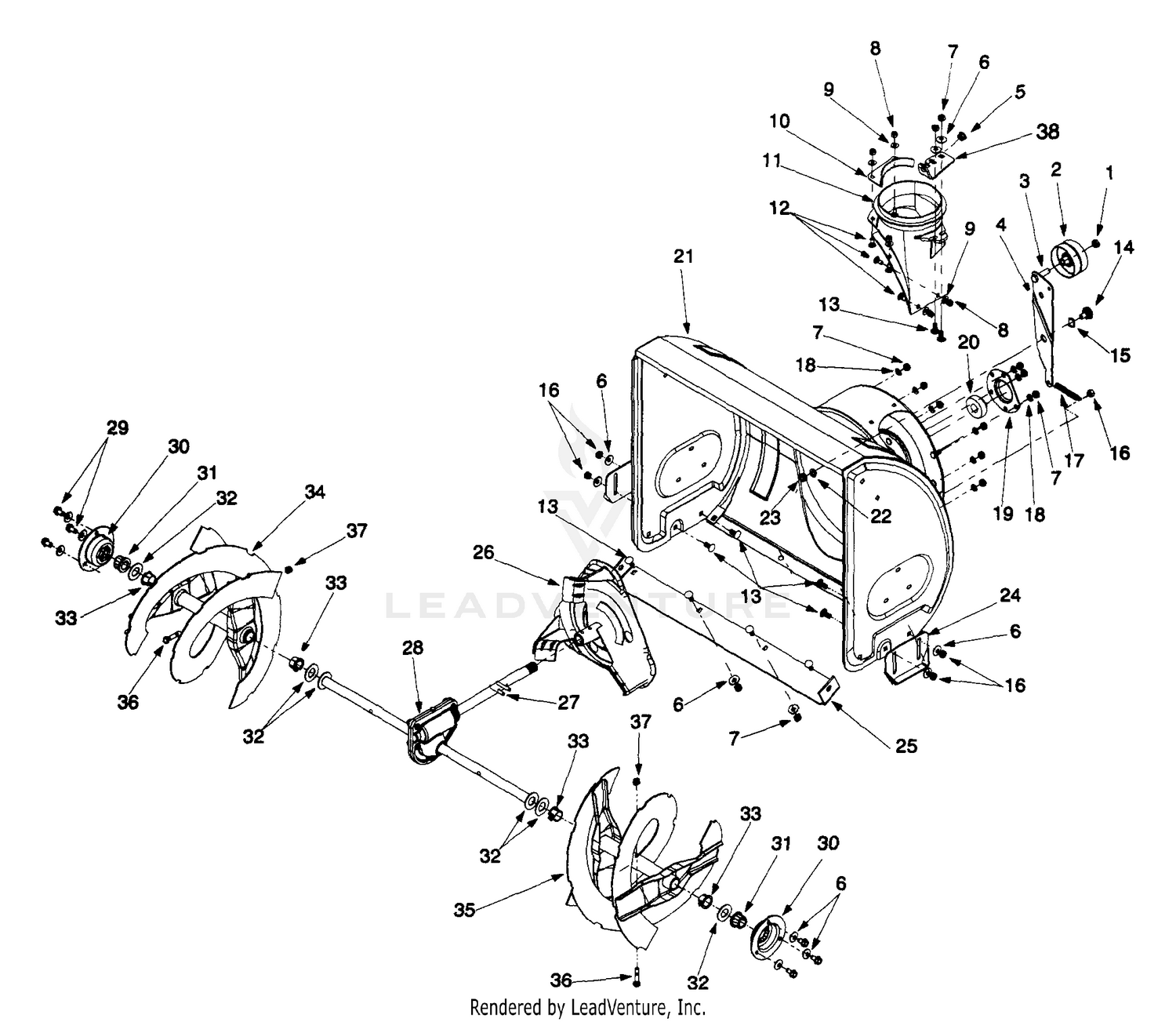

| Ref | Part Number | Description |
|---|
| 1 |
712-0116 |
Lock Jam Nut 3/8-24 Price: $3.95 |
| 2 |
756-0178 |
Flat Idler Price: $17.64 |
| 3 |
984-0064-0637 |
Auger Idler Brkt. This part replaces 784-5632. Price: $28.67 |
| 4 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.50 Price: $6.50 |
| 5 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 6 |
736-0242 |
Bell Washer Price: $3.75 |
| 7 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 8 |
712-0324 |
Hex Lock Nut 1/4-20 Price: $3.38 |
| 9 |
736-0463 |
Flat Washer Price: $3.91 |
| 10 |
705-5226 |
Reinforcement Chute Price: $8.69 |
| 11 |
731-1379D |
Adapter Chute This part replaces 731-1379. Price: $57.72 |
| 12 |
710-0134 |
Carriage Screw 1/4-20 x .62 Price: $3.71 |
| 13 |
710-0451 |
Carriage Bolt 5/16-18 Price: $3.53 |
| 14 |
738-0281 |
Shoulder Screw Price: $9.16 |
| 15 |
736-0174 |
Wave Washer Price: $5.94 |
| 16 |
712-3009 |
Hex L-Nut 5/16-18 Thd. This part replaces 712-3068. Price: $5.99 |
| 17 |
932-0611 |
Ext. Spring 3.6" Lg. This part replaces 732-0611. Price: $6.92 |
| 18 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 19 |
05931A |
Bearing Housing This part replaces 05931. Price: $9.73 |
| 20 |
941-0309 |
Flange Ball Bearing This part replaces 741-0309. Price: $69.59 |
| 22 |
736-0169 |
Lock Washer 3/8 Price: $3.33 |
| 23 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 24 |
784-5580 |
Slide Shoe Price: $19.18 |
| 25 |
790-00120-0637 |
Shave Plate This part replaces 784-5581A. Price: $32.31 |
| 27 |
715-0114 |
Pin Price: $8.68 |
| 28 |
918-0414B |
GEARBOX ASSEMBLY 24" W FITTING Not Available This part replaces 618-0120. Price: |
| 29 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 30 |
784-5618A-0637 |
Bearing Housing This part replaces 784-5618. Price: $11.45 |
| 31 |
941-0245 |
Hex Flange Bearing This part replaces 741-0245. Price: $9.07 |
| 32 |
736-0188 |
Flat Washer Price: $3.75 |
| 33 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 35 |
684-04181-0637 |
Spiral 24" LH This part replaces 605-5189. Price: $156.83 |
| 36 |
710-0890A |
Shear Bolt 5/16-18 x 1.5 Price: $1.58 |
| 37 |
712-0429 |
Lock Nut 5/16-18 Price: $3.56 |
