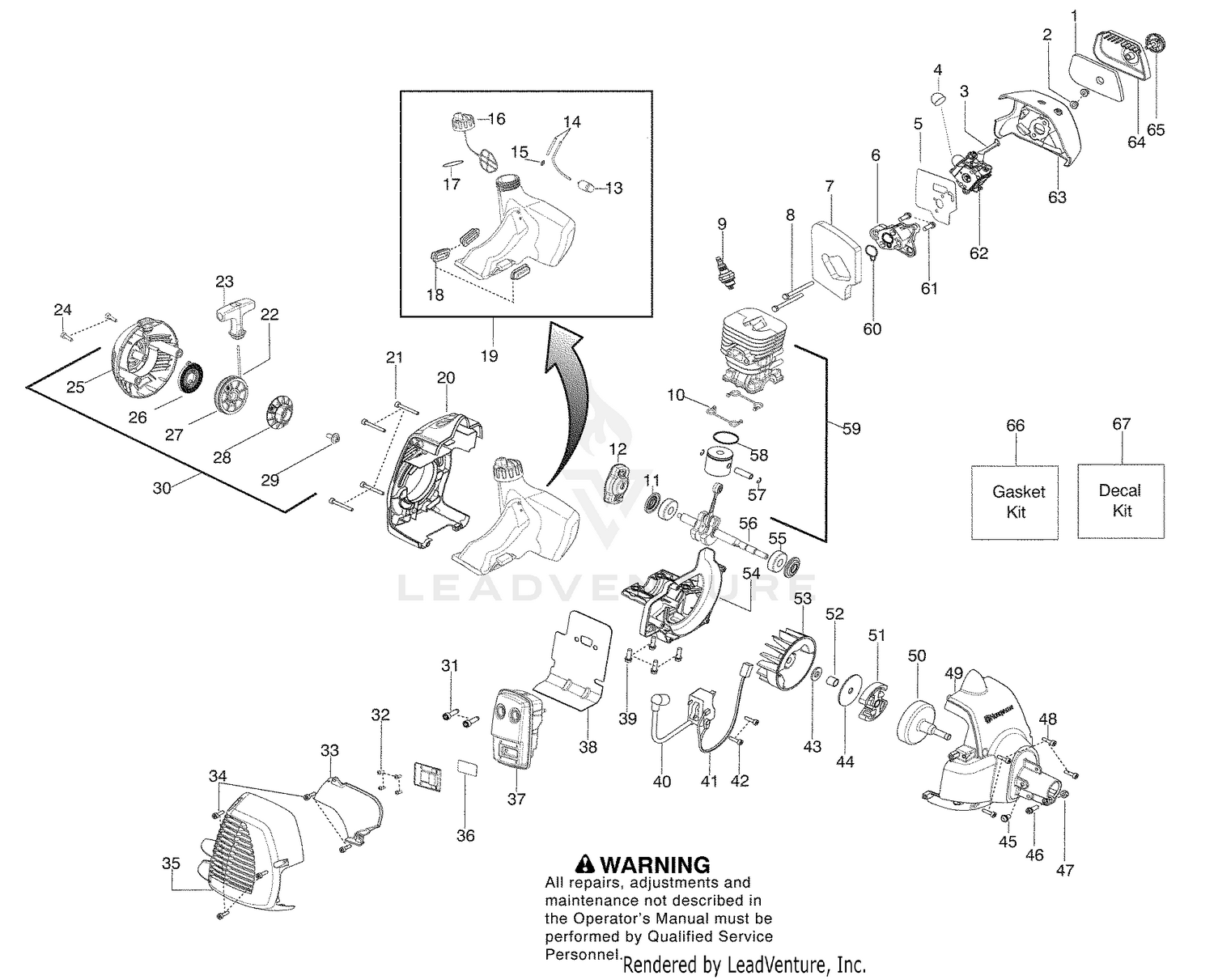

| Ref | Part Number | Description |
|---|
| 1 |
530150253 |
FILTER AIRBOX Price: $2.99 |
| 2 |
115-8017 |
REEL MOTOR KIT This part replaces 66-5750. Price: $1,999.51 |
| 2 |
530016101 |
NUT Price: $4.99 |
| 3 |
115-8017 |
REEL MOTOR KIT This part replaces 66-5760. Price: $1,999.51 |
| 3 |
530057844 |
CHOKE LEVER Price: $5.99 |
| 4 |
47-2380 |
KEY-SQUARE Price: $2.06 |
| 4 |
530058709 |
PURGE BULB ZAMA Price: $6.99 |
| 5 |
59-8420 |
RING Price: $6.90 |
| 6 |
115-8017 |
REEL MOTOR KIT This part replaces 66-5740. Price: $1,999.51 |
| 6 |
530035596 |
CARB ADAPTOR Price: $7.99 |
| 7 |
42-2010 |
PIN-DOWEL Price: $2.67 |
| 7 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $3.99 |
| 8 |
66-5730 |
DISCONTINUED Price: Call Us |
| 9 |
503235112 |
BPMR6A NGK SPARK PLUG This part replaces 952030201. Price: $8.99 |
| 9 |
66-5770 |
CAPSCREW Price: $6.37 |
| 10 |
3246-17 |
SETSCREW-HSH Price: $0.47 |
| 10 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 11 |
47-7150 |
PULLEY-DRIVE Price: $259.16 |
| 11 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 12 |
503873305 |
STARTER PAWL BRIDGE Price: $22.99 |
| 12 |
59-8320 |
RING-RETAINING Price: $5.29 |
| 13 |
117-8976 |
SEAL This part replaces 66-5710. Price: $48.67 |
| 13 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 14 |
60-5890 |
WASHER Price: $4.68 |
| 15 |
530023877 |
FUEL LINE FITTING Price: $4.99 |
| 15 |
92-9260 |
RELIEF VALVE KIT Price: $246.39 |
| 16 |
237-42 |
O-RING Price: $2.78 |
| 17 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 18 |
530059780 |
ISOLATOR FUEL TANK Price: $4.99 |
| 20 |
576153201 |
REAR SHROUD ORANGE This part replaces 530057851. Price: $11.99 |
| 21 |
115-8017 |
REEL MOTOR KIT This part replaces 92-9259. Price: $1,999.51 |
| 21 |
530016448 |
SCREW Price: $2.99 |
| 22 |
545008079 |
KIT ROPE Price: $9.99 |
| 23 |
545043204 |
STARTER HANDLE Price: $6.99 |
| 24 |
530016426 |
SCREW M5-0.8X30MM Price: $4.99 |
| 48 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 49 |
545017501 |
FAN HSG ASSY Price: $17.99 |
| 50 |
587126401 |
ASSY CLUTCH DRUM This part replaces 530150039. Price: $24.99 |
| 51 |
525472901 |
KIT CLUTCH ASSY This part replaces 545050405. Price: $10.99 |
| 52 |
530057852 |
SPACER FLYWHEEL Price: $8.99 |
| 53 |
530039242 |
FLYWHEEL Price: $29.99 |
| 54 |
577929502 |
CRANKCASE CAST 128 This part replaces 545195601. Price: $34.99 |
| 55 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 56 |
585415401 |
CRANKSHAFT This part replaces 545195202. Price: $44.99 |
| 57 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 58 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 60 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 61 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 63 |
576459001 |
AIRBOX HVA 128 HUSKY GRAY This part replaces 545084601. Price: $6.99 |
| 64 |
530057846 |
COVER-AIR BOX Price: $7.99 |
| 65 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
