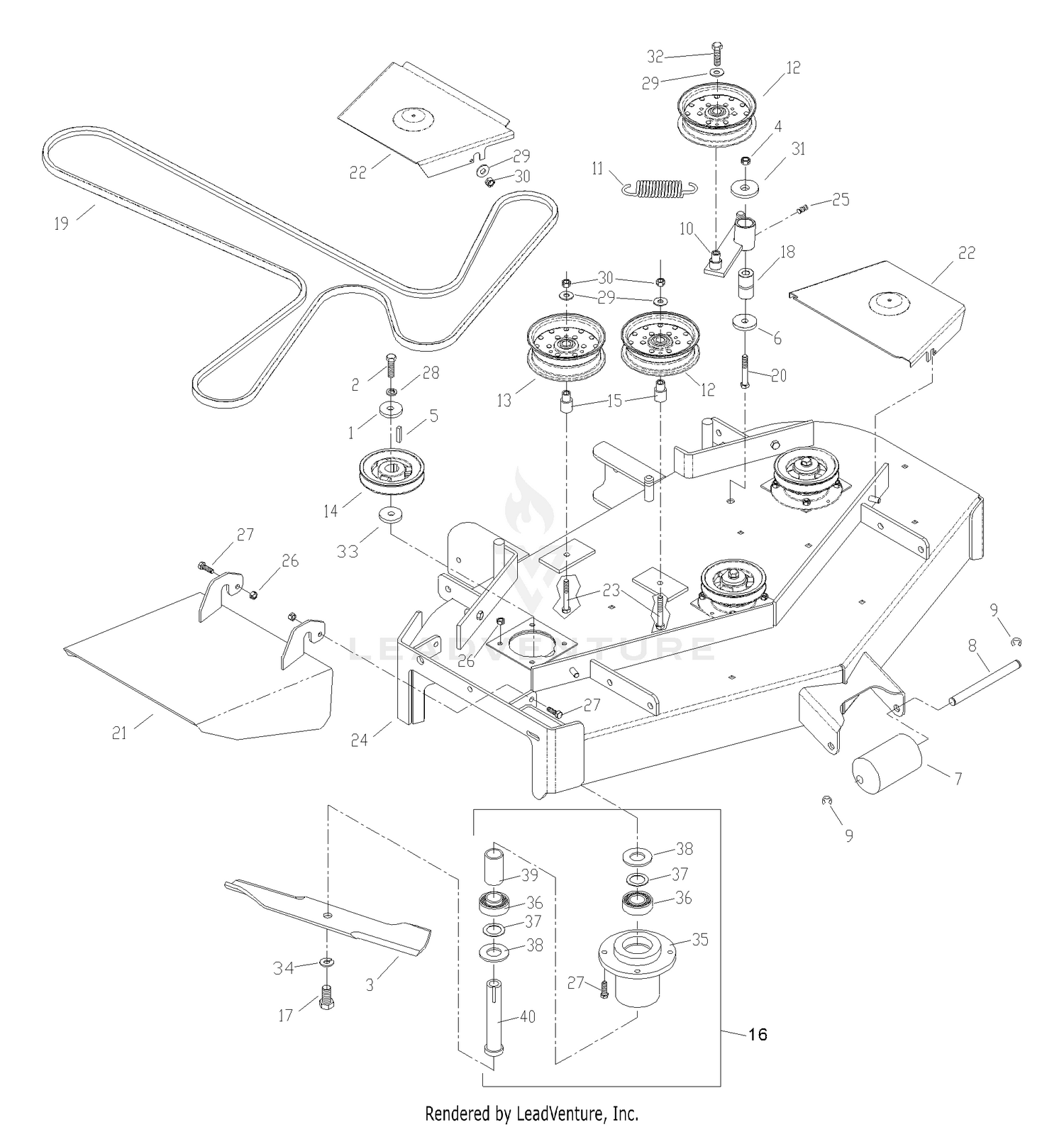

Front Deck Assembly 42"

Front Deck Assembly 42"

Parts (69)

RefPart NumberDescription
1 322-9 SCREW-HH Price: $3.09
1 596770301 Washers This part replaces 539106504. Price: $4.99
2 539100141 HCS 7/16F X 1 1/2 Price: $7.99
2 75-6410 YOKE SHAFT Price: $249.64
3 539103274 BLADE OEM, 14-7/8 Price: $17.99
3 75-6420 YOKE Price: $911.70
4 302-58 FITTING-STRAIGHT This part replaces 62-3880. Price: $0.81
4 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
5 43-3220 CAPSCREW-HH Price: $0.82
5 539101995 KEY 1/4 SQ X 1 1/8 Price: $2.99
6 3253-4 WASHER-LOCK This part replaces 48-9570. Price: $0.25
6 596437501 Washers This part replaces 539102243. Price: $8.99
7 539976828 ROLLER Price: $25.07
7 75-4630 COUPLER-DRIVELINE Price: $344.51
8 43-2740 GASKET ME 660042 Price: $8.23
8 539103437 AXLE Price: $9.99
9 43-2750 NUT MM 409671 Price: $18.31
9 596671501 Washers This part replaces 539101949. Price: $2.99
10 539103230 IDLER ARM Price: $159.99
10 63-7440 SOLENOID Price: $480.88
11 539103256 SPRING Price: $9.99
11 75-1070 DISCONTINUED Price: Call Us
12 322-4 SCREW-HH Price: $0.35
12 539103257 IDLER PULLEY Price: $49.99
13 539103258 IDLER PULLEY (TALL) Price: $44.99
13 68-9400 NUT-FLANGE This part replaces 48-7930. Price: $2.29
14 3253-4 WASHER-LOCK This part replaces 42-9850. Price: $0.25
14 539103283 PULLEY Price: $59.99
15 42-9110 GASKET This part replaces 53-8130. Price: $29.21
15 539103295 IDLER BUSHING Price: $12.99
16 539107408 HOUSING KIT FOR 104403 This part replaces 539104403. Price: $449.99
16 75-4490-03 MUFFLER BRKT ASM This part replaces 75-4490. Price: $46.04
17 3296-29 NUT-LOCK, NI Price: $2.09
17 539103299 HCS 5/8F X 1 1/4 Price: $5.99
18 539103427 PIVOT BUSHING Price: $7.99
18 67-2340 BOLT W/WASHER Price: $2.19
19 2412-81 CLAMP-R Price: $3.39
19 539109244 BELT This part replaces 539105642. Price: $84.99
20 43-0090 SCREW-HH Price: $8.05
20 539103433 HCS 1/2C X 3 1/4 Price: $5.99
21 48-9590 WASHER-LOCK Price: $0.25
21 539105361 DISCHARGE CHUTE 42" Price: $109.99
22 539105363 BELT SHIELD Price: $26.98
22 75-0940-03 FLYWHEEL GUARD ASM This part replaces 75-0940. Price: $277.79
23 32136-4 NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56
23 596434201 Bolts This part replaces 539990637. Price: $3.99
24 539106575 DECK W/DECALS Price: $533.40
24 62-3820 FITTING-GREASE Price: $9.52
25 54-9180 U-JOINT KIT Price: $58.18
25 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
26 596580701 Nuts This part replaces 539990184. Price: $2.99
27 596580801 Bolts This part replaces 539990209. Price: $2.99
28 596238901 Washers This part replaces 539990247. Price: $2.99
29 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
30 595305901 Nuts This part replaces 539990546. Price: $2.99
31 595316401 Washers This part replaces 539990550. Price: $2.99
32 596583101 Screws This part replaces 539990582. Price: $3.99
33 539102675 MACHINERY BUSHING 10 GA. Price: $8.99
34 539990333 LOCKWASHER 5/8 Price: $2.99
35 539104852 HOUSING, DIE CAST Price: $64.99
36 539115279 BEARING-ECC LOCK W/COLLAR This part replaces 539102677. Price: $30.99
37 539102244 BUSHING.MACHINE.18.GAUGE Price: $4.99
38 539102675 MACHINERY BUSHING 10 GA. Price: $8.99
39 539102676 SPACER Price: $8.99
40 539104402 SPINDLE Price: $64.99
41 539105439 MAIN BAFFLE Price: $179.99
42 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
43 539105435 CENTER BAFFLE Price: $59.99
44 596134901 GSPH This part replaces 539990692. Price: $2.99
