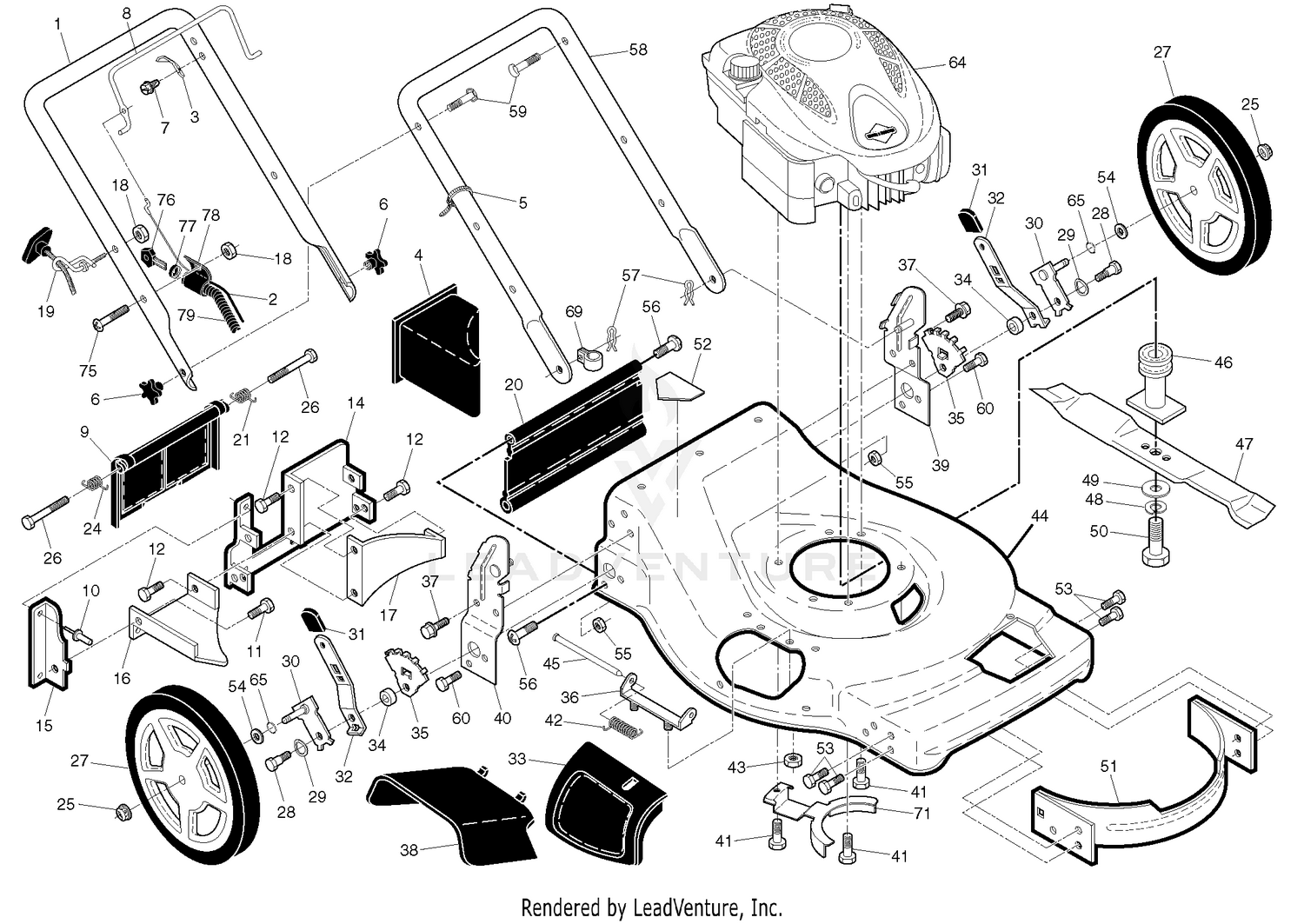

| Ref | Part Number | Description |
|---|
| 1 |
427616X479 |
Upper Handle Price: Call Us |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
401994 |
Cable, Operator Presence Price: Call Us |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 3 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 4 |
166649 |
Mulcher Plug Price: Call Us |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 5 |
664-26 |
Wire Tie Price: Call Us |
| 6 |
185588 |
Handle Knob Price: Call Us |
| 6 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 7 |
750634 |
Screw Price: Call Us |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 8 |
427415X428 |
Control Bar Price: Call Us |
| 9 |
401813X428 |
Rear Door Assembly Price: Call Us |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
128415 |
Pop Rivet Price: Call Us |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
150050 |
Screw, Self-Tapping #10-24 x 5/8 Price: Call Us |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
17060410 |
Screw, Hex Hex Head, Sems 1/4-20 x 1/2 Price: Call Us |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
195622X479 |
Back Plate Price: Call Us |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 15 |
410545X479 |
Side Baffle Price: Call Us |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
176655X479 |
Discharge Baffle Price: Call Us |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
140661X479 |
Rear Baffle Price: Call Us |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
132004 |
Keps Locknut 1/4-20 Price: Call Us |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
194788 |
Rope Guide Price: Call Us |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 20 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
413160 |
Rear Skirt Price: Call Us |
| 21 |
106-9004 |
BUMPER Price: $6.35 |
| 21 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
| 25 |
409149 |
Nut, Hex, Flanged Price: Call Us |
| 26 |
184193 |
Bolt, Rear Door Price: Call Us |
| 27 |
193906X460 |
Wheel & Tire Assembly, Rear Price: Call Us |
| 28 |
174719 |
Bolt, Shoulder 3/8-16 x 1 Price: Call Us |
| 29 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 30 |
401180X004 |
Axle Arm Assembly Price: Call Us |
| 31 |
196401 |
Selector Knob Price: Call Us |
| 32 |
401626X004 |
Selector Spring Price: Call Us |
| 33 |
189917X418 |
Mulcher Door Price: Call Us |
| 34 |
401629 |
Spacer Price: Call Us |
| 35 |
700325X005 |
Wheel Adjusting Bracket Price: Call Us |
| 36 |
175735 |
Hinge Bracket Assembly Price: Call Us |
| 37 |
17000512 |
Screw, Sems, Thread Cutting 5/16-18 x 3/4 Price: Call Us |
| 38 |
402574X418 |
Discharge Deflector Price: Call Us |
| 39 |
195915X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 40 |
195914X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 Price: Call Us |
| 42 |
193000 |
Spring, Torsion Price: Call Us |
| 43 |
73800400 |
Nut, Hex, Nylock Price: Call Us |
| 45 |
175650 |
Rod, Hinge Price: Call Us |
| 46 |
194037 |
Blade Adapter / Pulley Price: Call Us |
| 47 |
406713 |
Blade, 22" Price: Call Us |
| 48 |
851074 |
Washer, Hardened Price: Call Us |
| 49 |
850263 |
Washer, Helical Price: Call Us |
| 50 |
851084 |
Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 52 |
404763 |
Danger Decal Price: Call Us |
| 53 |
17600406 |
Screw, Serrated, TT 1/4-20 Price: Call Us |
| 54 |
88348 |
Washer, Flat Price: Call Us |
| 55 |
73930600 |
Nut, Hex 3/8-16 Price: Call Us |
| 56 |
88652 |
Hinge Screw 1/4-20 x 1-1/4 Price: Call Us |
| 57 |
51793 |
Hairpin Cotter Price: Call Us |
| 58 |
400512X479 |
Lower Handle Price: Call Us |
| 59 |
191574 |
Handle Bolt Price: Call Us |
| 60 |
74760612 |
Bolt, Hex Head 3/8-16 x 3/4 Price: Call Us |
| 61 |
73930600 |
Nut, Hex 3/8-16 Price: Call Us |
| 65 |
197480 |
O-Ring Price: Call Us |
| 69 |
197991 |
Clip, Cable Price: Call Us |
| 71 |
420474X004 |
Belt Keeper Price: Call Us |
| 75 |
186159 |
Screw Price: Call Us |
| 76 |
180331 |
Key Price: Call Us |
| 77 |
194848 |
Nut, Cap Price: Call Us |
| 78 |
189686 |
Key Start Switch Price: Call Us |
| 79 |
193733 |
Operator's Manual, English Price: Call Us |
| 79 |
193736 |
Operator's Manual, French Price: Call Us |
| 79 |
409567 |
Wiring Harness Price: Call Us |
