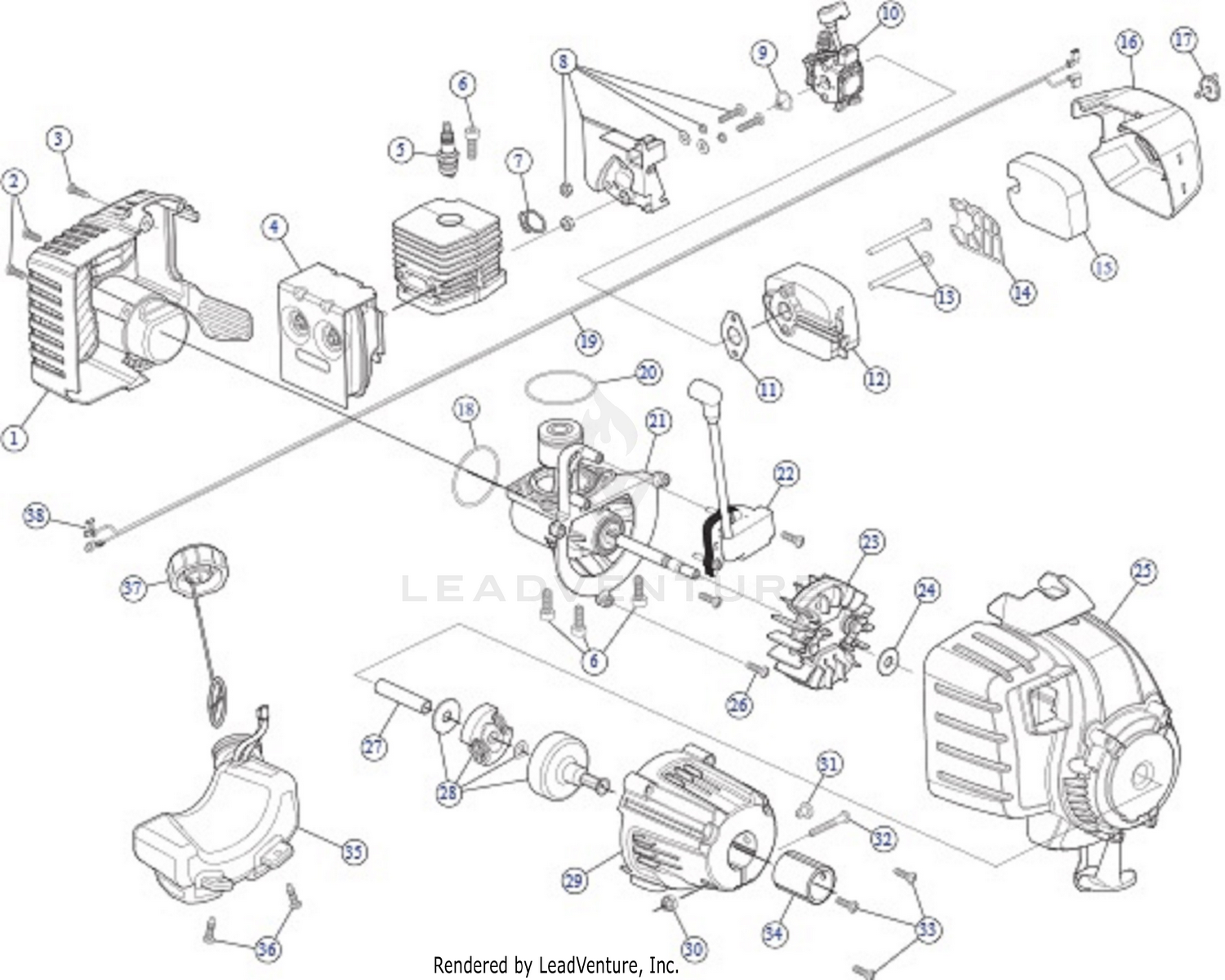

Engine Assembly
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-06833 | Rear Housing (Incl. 1, 2 & 19) Price: $10.36 |
| 2 | 1964 | SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 3 | 791-181345 | Screw Price: $3.75 |
| 4 | 753-06792 | Muffler Price: $26.52 |
| 5 | 753-06847 | Spark Plug Price: $6.35 |
| 6 | 791-182723 | Screw Price: $4.02 |
| 7 | 753-06184 | O-Ring Price: $2.93 |
| 8 | 753-06189 | Insulator Assembly (Incl. 8 & 10) Price: $6.65 |
| 9 | 753-06185 | O-Ring Price: $2.93 |
| 10 | 753-06288 | Carburetor Price: $32.65 |
| 11 | 753-06253 | Gasket Price: $2.98 |
| 12 | 753-06916 | Air Cleaner Base Price: $4.10 |
| 13 | 710-04517 | Screw Price: $4.71 |
| 14 | 753-06835 | Plate Price: $2.83 |
| 15 | 753-06836 | Filter Price: $2.97 |
| 16 | 753-06837 | Air Cleaner Cover Price: $3.19 |
| 17 | 753-08008 | Screw Price: $2.63 |
| 18 | 753-06174 | O-Ring Price: $2.54 |
| 19 | 753-06839 | Lead Wire Price: $6.55 |
| 20 | 753-06275 | O-Ring Price: $2.52 |
| 21 | 753-06841 | SHORTBLOCK Price: $93.75 |
| 22 | 753-06840 | Module Price: $32.01 |
| 23 | 753-06175 | Flywheel Price: $16.80 |
| 24 | 753-06247 | Washer Price: $3.05 |
| 25 | 753-06842 | Starter Housing Price: $26.52 |
| 26 | 1964 | SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 27 | 753-06218 | Spacer Price: $2.57 |
| 28 | 753-05860 | Clutch Assembly Price: $22.50 |
| 29 | 753-06843 | Clutch Cover Price: $10.27 |
| 30 | 712-0161 | Nut Price: $4.02 |
| 31 | 710-05401 | Bolt Price: $2.83 |
| 32 | 9689A | Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 33 | 791-181345 | Screw Price: $3.75 |
| 34 | 735-04278 | Spacer, Rubber Price: $3.71 |
| 35 | 753-06846 | Fuel Tank (Incl. 37 & 38) Price: $14.17 |
| 36 | 791-181930 | Fuel Tank Screw Price: $5.95 |
| 37 | 791-182612 | Fuel Tank Cap Price: $17.64 |
