Home / OPE / Walk Behind Mowers / 02720, 92cm (36in) Mid-Size Flail Attachment, (SN 400000000-410299999) / Rotory Drive Assembly

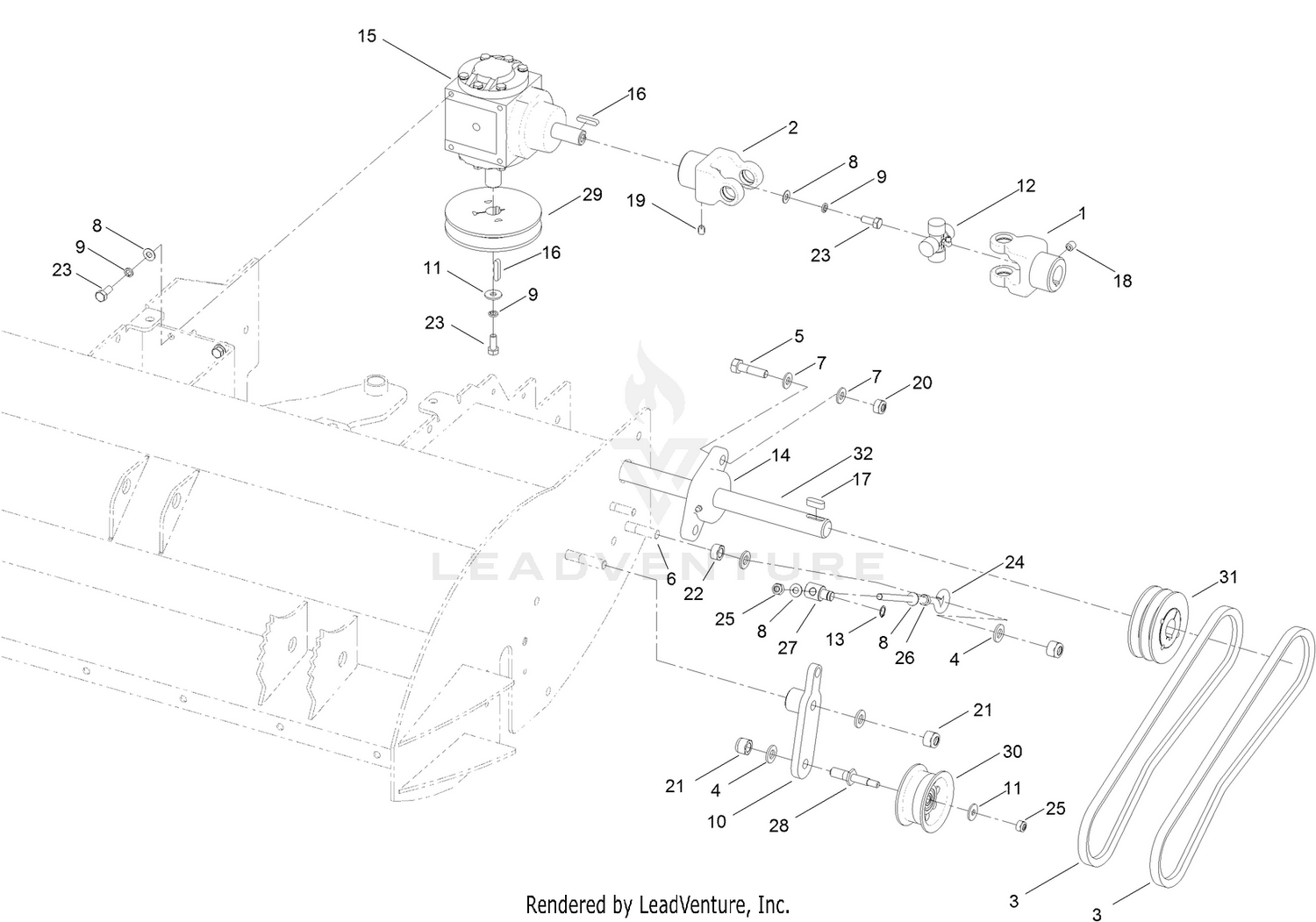

Rotory Drive Assembly

Rotory Drive Assembly

Parts (29)

RefPart NumberDescription
3 111-2476 BELT - AX 36 13 X 944LD Price: $43.03
4 HY09485 WASHER M12 PLAIN Price: $1.40
5 09611 BOLT M10 X 40 Price: $1.40
6 09552 BOLT M12 X 50 HEX HD Price: $1.40
7 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
8 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
9 03469 WASHER M8 SC SPRING Price: $1.40
10 111-2456 BRACKET - PULLEY IDLER W/ASSY Price: $96.35
11 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
12 111-2431 UNIVERSAL JOINT - PTO A1 SERIES Price: $63.92
13 950940 CIRCLIP 12MM EXTERNAL Price: $1.26
14 111-2444 FLANGE BEARING Price: $133.53
15 111-2411 GEARBOX - 36 FLAIL Price: $1,659.92
16 111-2481 KEY 6X6X30 RD ENDS Price: $4.58
17 111-2480 KEY 8X8X25 RD ENDS Price: $3.78
18 111-3085 M10 X 10 SKT GRUB SCREW - CUP POINT Price: $1.35
19 111-3084 M8 X 10 SKT GRUB SCREW - CUP POINT Price: $1.42
20 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
21 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
22 09454 NUT M12 PLAIN HEX PLATED Price: $1.36
23 09368 SCREW Price: $1.40
24 111-2469 ROD EYE - THREADED Price: $19.38
25 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
26 ZNH1H000U HEX.NUT M8 Price: $1.40
27 111-2460 PIVOT - BOSS Price: $32.53
28 111-2459 PIVOT - IDLER BRACKET Price: $40.11
29 111-2473 PULLEY - GEARBOX Price: $96.65
30 111-2455 PULLEY - IDLER Price: $169.40
31 111-2412 PULLEY - V Price: $106.13
