| Ref | Part Number | Description |
|---|
| 1 |
47-3010-01 |
TRAILER ASM Price: $3,956.22 |

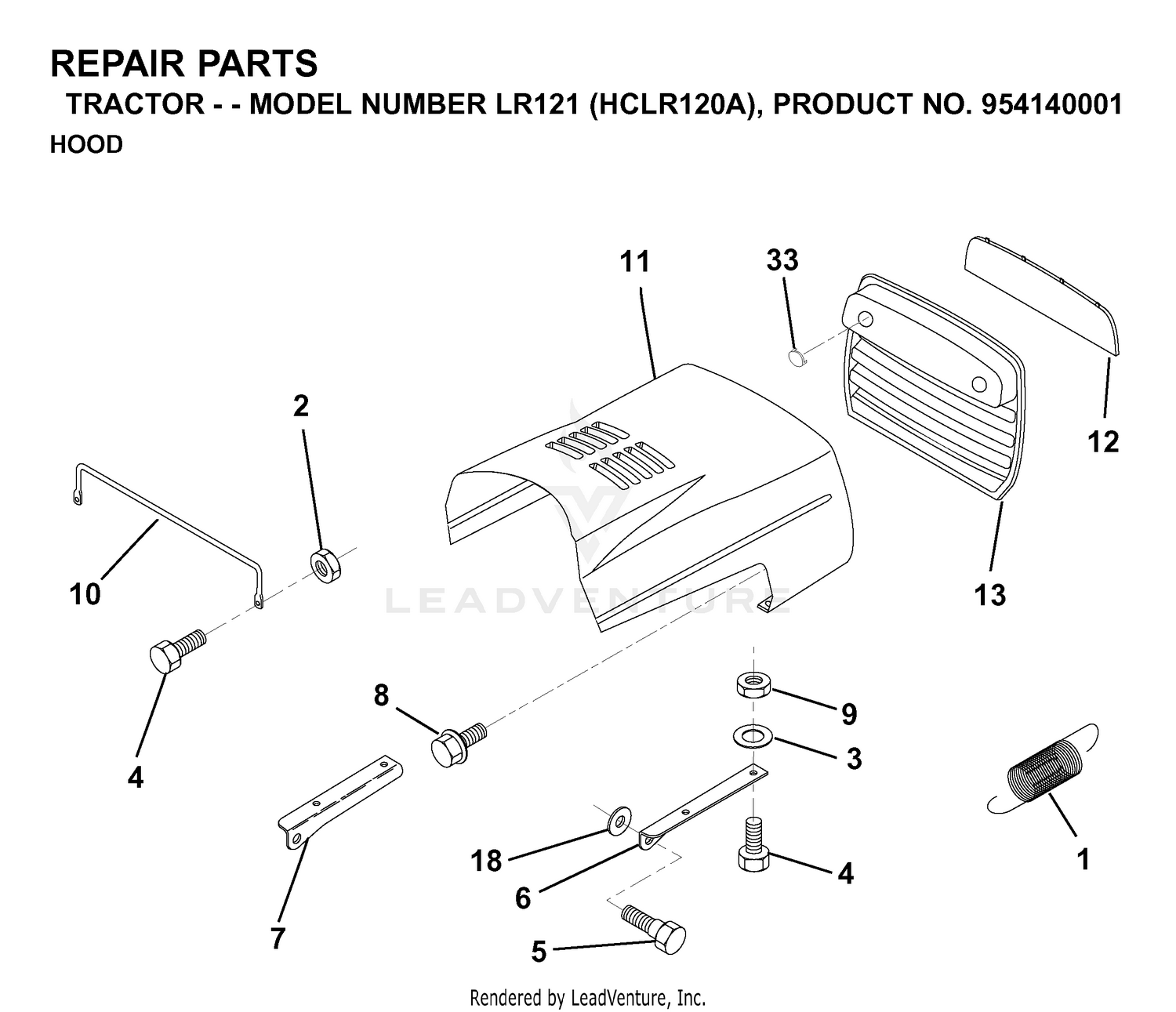

| 1 |
532124657 |
EXT SPRING Price: $8.99 |
| 2 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 2 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 3 |
5-2942 |
SHACKLE Price: $16.99 |
| 3 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 4 |
47-3650 |
CHAIN-LIFT, NO. 2 AND 3 Price: $119.48 |
| 4 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 5 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 6 |
3-2196-01 |
SHEAVE Price: $141.72 |
| 6 |
532122549 |
BRKT HOOD RH Price: $2.45 |
| 7 |
32153-5 |
NUT-HEX Price: $1.59 |
| 7 |
532122548 |
BRKT HOOD LH Price: $2.99 |
| 8 |
51-0850-01 |
SUPPORT-PULLEY Price: $306.47 |
| 8 |
817521312 |
Screw, SLTD Hex Hd. W/Pl Washer Price: $1.05 |
| 9 |
47-3930-01 |
LOCKUP BRACKET ASM Price: $270.92 |
| 9 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 10 |
325-17 |
SCREW-HH Price: $2.90 |
| 10 |
532123693 |
BRACE,HOOD Price: $5.99 |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
532132918 |
HOOD This part replaces 532140463. Price: $257.40 |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
532122035 |
LENS Price: $14.99 |
| 13 |
60-9110-01 |
LIFT BAIL PIN ASM Price: $84.41 |
| 14 |
47-3230-01 |
NO. 1 LIFT ARM ASM Price: $907.15 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 18 |
42-3550-01 |
COVER-MOUNT, CYLINDER Price: $108.41 |
| 18 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 19 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 20 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 21 |
20-4390 |
SPACER Price: $12.54 |
| 22 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 23 |
3-0144 |
SHAFT Price: $53.89 |
| 24 |
115-4949 |
HYD CYLINDER ASM Price: Call Us |
| 25 |
26-8590 |
PIN-CYLINDER Price: $23.00 |
| 26 |
47-3870-01 |
RH CHANNEL ASM Price: $235.39 |
| 27 |
47-3860-01 |
LH CHANNEL ASM Price: $215.68 |
| 28 |
325-6 |
SCREW-HH Price: $1.42 |
| 29 |
3290-216 |
WASHER Price: $3.83 |
| 30 |
47-3640-01 |
CYLINDER REST ASM Price: $44.42 |
| 31 |
32128-23 |
NUT-HF Price: $1.51 |
| 32 |
353-537 |
FITTING-ELBOW, 90 DEG Price: $12.91 |
| 33 |
47-3660 |
CHAIN-LIFT, NO. 1 Price: $197.71 |
| 33 |
532131319 |
CVR LIGHT SOCKET Price: $2.42 |
| 34 |
325-7 |
SCREW-HH Price: $1.53 |
