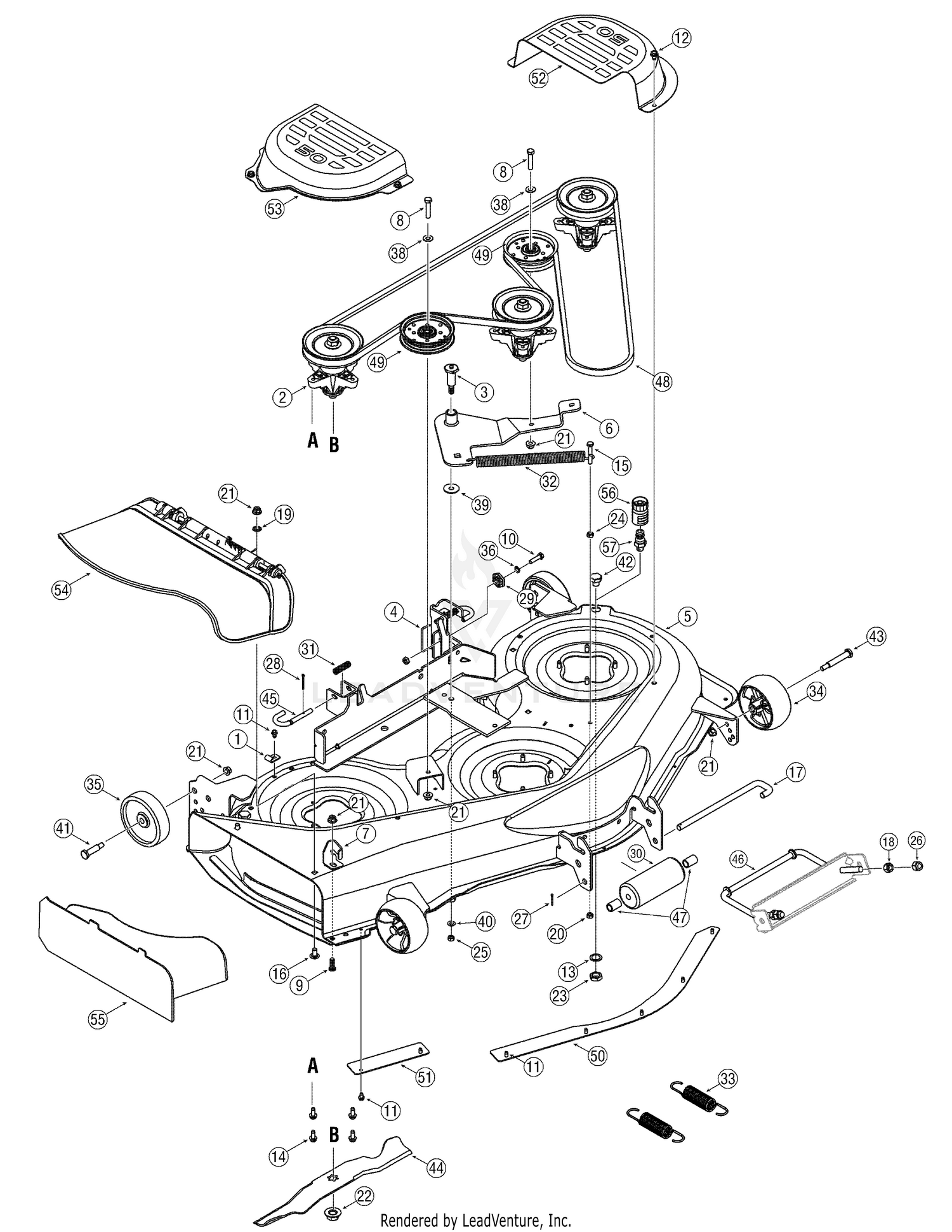

| Ref | Part Number | Description |
|---|
| 1 |
96606 |
Retainer Hook Bracket This part replaces 16606. Price: $6.71 |
| 2 |
918-04125C |
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG This part replaces 918-04126A. Price: $123.95 |
| 3 |
638-04012A |
Shoulder Bolt Price: $20.09 |
| 4 |
683-0254B |
Hanger Bracket Assembly Not Available Price: |
| 7 |
703-3279 |
Chute Stop Price: $35.25 |
| 8 |
710-0347 |
Screw, 3/8-16, 1.75 Price: $4.39 |
| 9 |
710-04095 |
Screw, 3/8-16 x 1.0 Price: $4.39 |
| 10 |
710-0528 |
Screw, 5/16-18, 1.25, Gr5 Price: $3.90 |
| 11 |
710-0599 |
Screw, 1/4-20 x 0.5 Price: $3.86 |
| 12 |
710-0607 |
Screw, 5/16-18 x .75 Price: $6.06 |
| 13 |
736-0225 |
Washer, Lock, 5/8 Internal Tooth Price: $3.90 |
| 14 |
710-1260A |
Screw, 5/16-18 x .75 Price: $3.34 |
| 15 |
710-3103 |
Screw, 5/16-18 x 2.00 Price: $4.02 |
| 16 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 17 |
711-1737 |
ROLLER PIN .5"DIAX10.06" Not Available Price: |
| 18 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 19 |
712-0229 |
Push Nut Retainer Price: $3.14 |
| 20 |
712-04063 |
Nut, Nylon Lock, 5/16-18 Price: $3.56 |
| 21 |
712-04065 |
Nut, Nylon Lock, 3/8-16 Price: $3.68 |
| 22 |
712-0417A |
HEX NUT Price: $6.50 |
| 23 |
712-0641 |
Nut, Hex, M16-1.5 Price: $5.58 |
| 24 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 25 |
712-3019 |
Hex Nut, 7/16-14 Price: $5.94 |
| 26 |
712-3083 |
Hex Lock Nut, 1/2-13 Price: $4.05 |
| 27 |
714-0111 |
Pin, Cotter, 3/32 x 1.00 Price: $4.20 |
| 28 |
714-0470 |
Pin, Cotter, 1/8 x 1.25 Price: $3.90 |
| 29 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-04074. Price: $11.45 |
| 30 |
731-3005 |
Roller Price: $26.47 |
| 31 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306A. Price: $7.69 |
| 32 |
732-0459C |
Spring, Extension, .94 Dia x 6.74 This part replaces 732-0459B. Price: $16.05 |
| 33 |
732-0934 |
Spring, Extension, 1.5 x 5.99 Price: $10.43 |
| 34 |
734-04155 |
Deck Wheel, 5.0 Price: $19.04 |
| 35 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 36 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 37 |
736-0225 |
Washer, Lock, 5/8" Price: $3.90 |
| 38 |
736-0300 |
Washer, Flat, .406 x .875 x .059 Price: $3.93 |
| 39 |
936-0406 |
Flat Washer, .442 x 1.38 x .060 This part replaces 736-0406. Price: $5.94 |
| 40 |
736-0407 |
Washer, Bell, .45 x 1.00 x .062 Price: $3.64 |
| 41 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 42 |
738-04146 |
Bolt, Plug, M16 x 1.5 Price: $8.02 |
| 43 |
938-3056 |
Shoulder Screw, 1/2 Dia x 2.50 This part replaces 738-3056. Price: $8.53 |
| 44 |
942-04053C |
BLADES This part replaces 742-04053B. Price: $26.85 |
| 45 |
747-1116 |
Rod, Deck Release .375 Dia. Price: $11.17 |
| 46 |
747-1324 |
Rod, Deck Adjust Price: $53.96 |
| 47 |
950-0151 |
Spacer .550 ID x .755 OD x 1.1 This part replaces 750-0151. Price: $9.70 |
| 48 |
954-04107 |
Deck Spindle & PTO Belt This part replaces 754-04107. Price: $123.85 |
| 49 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129. Price: $33.06 |
| 50 |
783-04414A |
Deck Skirt, Center Price: $28.73 |
| 51 |
783-04415 |
Deck Skirt, RH Price: $25.09 |
| 52 |
783-05280-4028 |
LH Belt Cover This part replaces 783-05280. Price: $77.35 |
| 53 |
783-05281-4028 |
COVER BELT (RH) (SEARS YELLOW) Not Available This part replaces 783-05281. Price: |
| 54 |
631-04070C |
Discharge Chute This part replaces 631-04070A. Price: $107.73 |
| 55 |
731-04651 |
Mulch Plug Price: $64.66 |
| 56 |
921-04041 |
WATER NOZZLE This part replaces 721-04041. Price: $20.19 |
