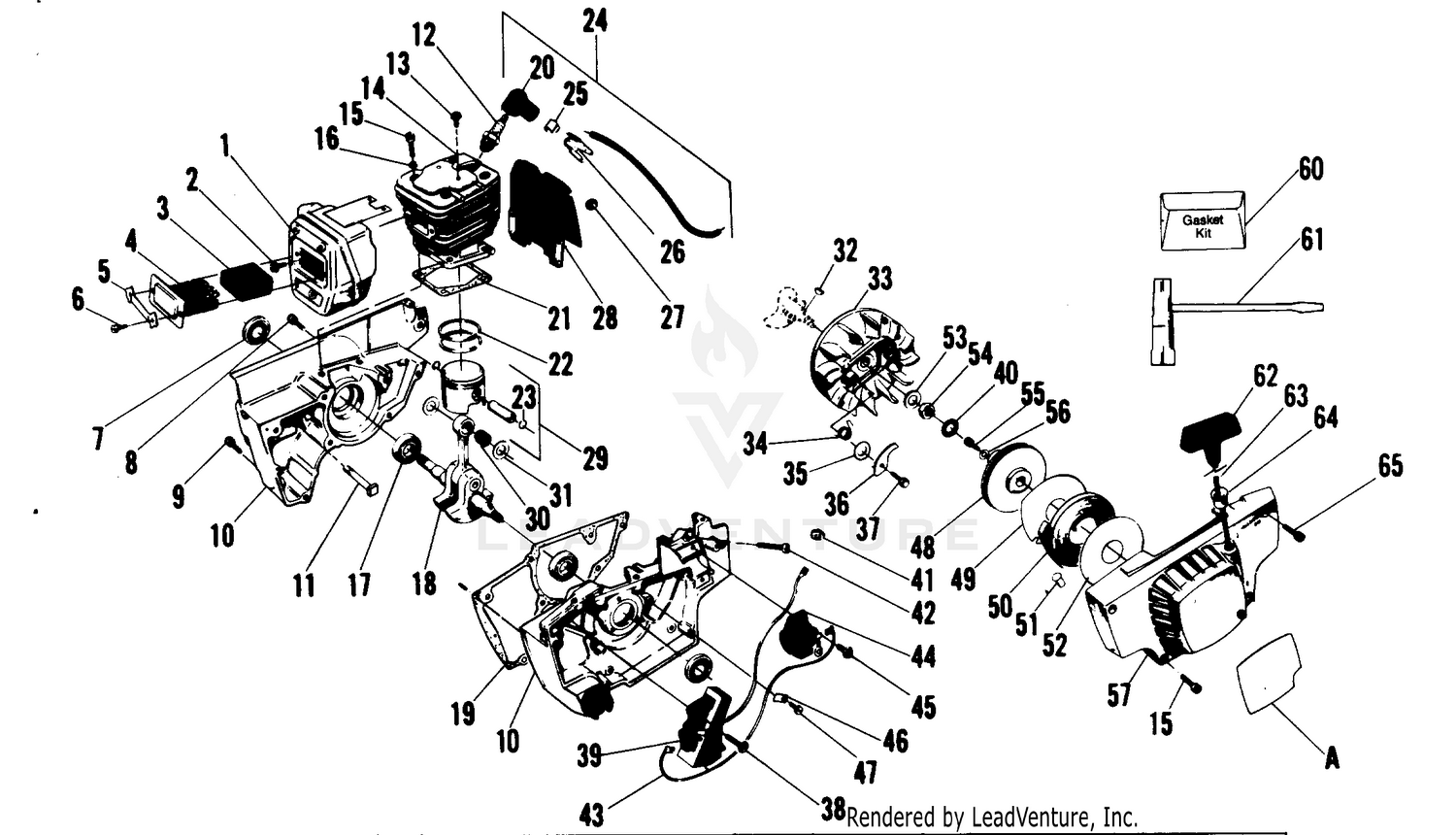

| Ref | Part Number | Description |
|---|
| 1 |
3-9126 |
DISCONTINUED Price: Call Us |
| 1 |
530022274 |
Body Muffler Price: $3.33 |
| 2 |
217-75 |
DISCONTINUED Price: Call Us |
| 2 |
530015298 |
Screw - Muffler (12 - 24 x 5/8) Price: $1.99 |
| 3 |
3296-7 |
NUT-LOCK Price: $0.34 |
| 3 |
530023674 |
Screen Spark Arrestor Price: $14.99 |
| 4 |
5-2615 |
DISCONTINUED Price: Call Us |
| 4 |
530022131 |
Diffuser - Muffler Price: $14.99 |
| 5 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 5 |
530024839 |
Retainer - Diffuser Mounting Screw Price: $1.99 |
| 6 |
242-44 |
DISCONTINUED Price: Call Us |
| 6 |
530015433 |
Screw - 10 - 32 x 1/2 Price: $3.33 |
| 7 |
530019075 |
Seal - Crankshaft Price: $6.99 |
| 8 |
530015203 |
Screw - Crankcase (#10 - 24 x 3/4 Socket Head) Price: $1.99 |
| 9 |
530015258 |
Screw - 8 x 1/2 Socket Head Price: $0.99 |
| 10 |
530010833 |
Crankcase Ass'y. (Incl. 10 & 11) Price: $3.33 |
| 11 |
530015535 |
Stud - Bar Mounting Price: $3.33 |
| 12 |
530030034 |
Spark Plug (CJ - 4) Price: $3.44 |
| 13 |
530015306 |
Screw - Muffler Body Bracket Hex Hd. 10 - 24 x 7/16 Price: $1.99 |
| 14 |
530012092 |
Cylinder Price: $74.28 |
| 15 |
530001711 |
Screw - 1/4 - 20 x 1 Socket Hd. Price: $1.99 |
| 16 |
530001677 |
Lockwasher - Cylinder Price: $0.04 |
| 17 |
530032034 |
Bearing - Crankshaft Price: $3.33 |
| 18 |
530026250 |
Crankshaft & Connecting Rod Price: $71.16 |
| 19 |
530019085 |
Gasket Crankcase Price: $0.60 |
| 20 |
530039097 |
Boot - Spark Plug Price: $3.99 |
| 21 |
530019081 |
Gasket - Cylinder Price: $2.99 |
| 22 |
530024058 |
Piston Rings Price: $3.33 |
| 23 |
530015207 |
Retainer - Piston Pin Price: $1.99 |
| 24 |
530039065 |
High Tension Lead Ass'y. (Incl. 20 & 25) Price: $3.33 |
| 25 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 26 |
530015195 |
Clip - High Tension Lead Price: $1.99 |
| 27 |
530023816 |
Grommet - High Tension Lead Price: $0.44 |
| 28 |
530022128 |
Air Baffle Ass'y. Price: $3.33 |
| 29 |
530010531 |
Piston Ass'y. Price: $3.33 |
| 30 |
530032031 |
Bearing - Piston Rod Price: $9.68 |
| 31 |
530015208 |
Washer - Thrust Price: $1.99 |
| 32 |
530002595 |
Key - Flywheel Price: $1.99 |
| 33 |
530039066 |
Flywheel Price: $3.33 |
| 34 |
530042062 |
Spring - Starter Dog Price: $3.33 |
| 35 |
530001718 |
Washer - Starter Dog Price: $1.99 |
| 36 |
530042064 |
Dog - Starter Price: $3.99 |
| 37 |
530004261 |
Stud - Starter Dog Price: $3.33 |
| 38 |
530015198 |
Screw - 10 - 24 x 7/8 Price: $3.33 |
| 39 |
530039108 |
Module - Ignition (Incl. 41 & 43) Price: $3.33 |
| 40 |
530026727 |
Seal - Foam - Starter Pulley Price: $0.16 |
| 41 |
530039069 |
Grommet - Lead Wire Price: $0.72 |
| 42 |
530015586 |
Screw - Idle Speed Price: $3.33 |
| 43 |
530039064 |
Lead Wire - Module to Transformer Price: $3.33 |
| 44 |
530039068 |
Transformer Ass'y. (Incl. 24) Price: $3.33 |
| 45 |
530015038 |
Screw - 10 - 24 x 3/4 Hex Washer Hd. Price: $1.99 |
| 46 |
530023661 |
Clamp - Lead Wire Price: $1.99 |
| 47 |
530001726 |
Screw - 8 - 32 x 5/16 Tapping Price: $1.99 |
| 48 |
530011255 |
Pulley - Starter Price: $32.99 |
| 49 |
530042041 |
Disc. - Starter (Over Spring) Price: $3.33 |
| 50 |
530042049 |
Spring - Starter Rewind Price: $3.33 |
| 51 |
530015323 |
Pin - Spring Anchor Price: $0.24 |
| 52 |
530042039 |
Disc. - Starter (Under Spring) Price: $3.33 |
| 53 |
530001626 |
Washer - 3/8 Price: $3.33 |
| 54 |
530001722 |
Locknut - Flywheel - 3/4 - 24 Price: $2.99 |
| 55 |
530015092 |
Screw - 1/4 - 20 x 1/2 Socket Hd. Price: $1.99 |
| 56 |
530015209 |
Washer - Starter Pulley Price: $1.99 |
| 57 |
530011815 |
Fan Housing Ass'y. Price: $3.33 |
| 60 |
530069180 |
Gasket Repair Kit (Inc. 19,21,27,40) Price: $7.99 |
| 61 |
530031107 |
Scrench Price: $3.33 |
| 62 |
530042056 |
Handle Starter Price: $1.20 |
| 63 |
530069234 |
Rope Kit Price: $3.33 |
| 64 |
530002820 |
Bushing - Rope Price: $3.64 |
| 65 |
530015196 |
Screw - 1/4 - 20 x 1 - 1/2 1/8 Socket Hd. Price: $1.99 |
