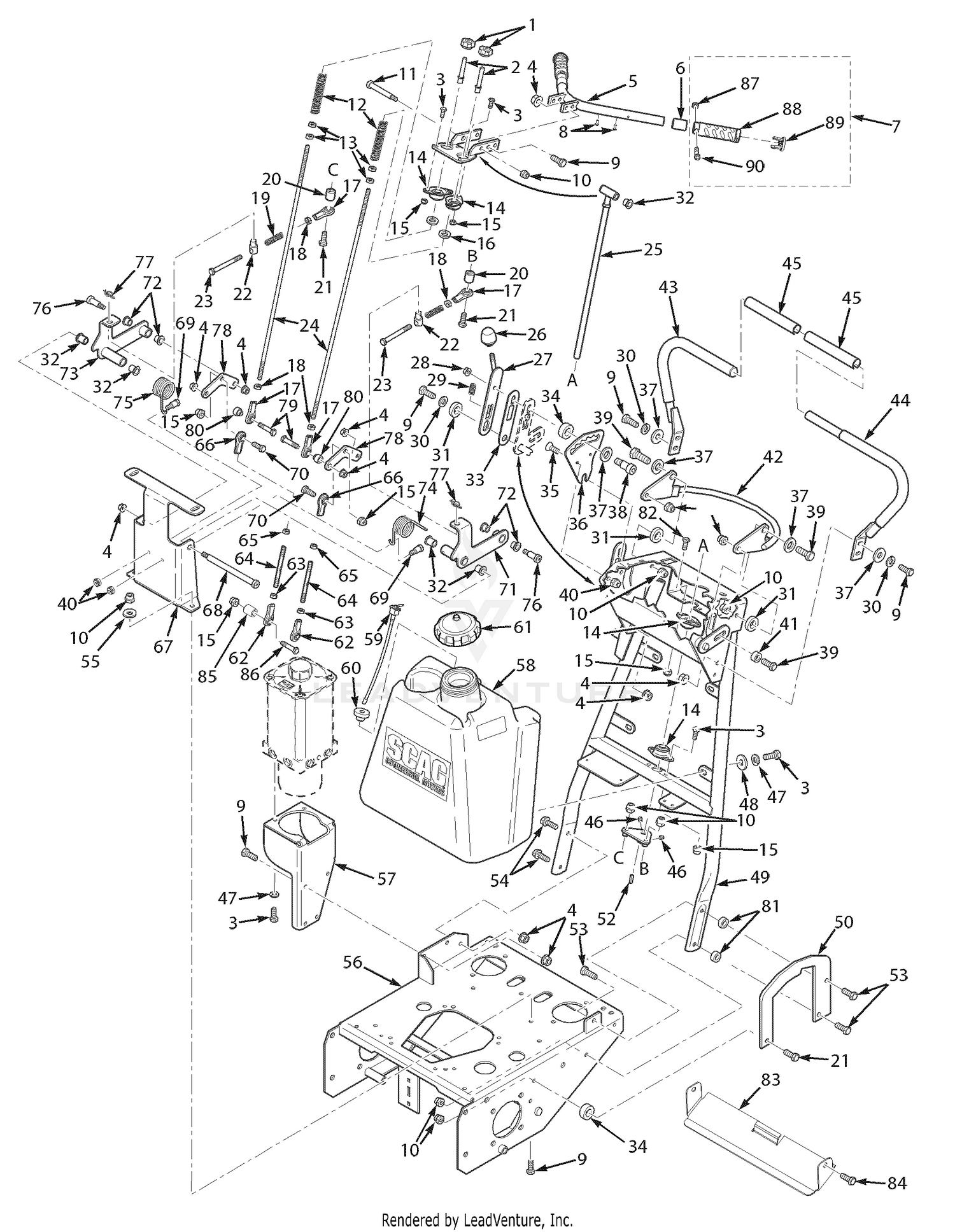

| Ref | Part Number | Description |
|---|
| 1 |
481885-04 |
Knob, 3/8-16 Locking Price: Call Us |
| 2 |
43759 |
Spacer, Tracking Price: Call Us |
| 3 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 4 |
04019-04 |
N ut, Serrated Flange 3/8-16 Price: Call Us |
| 5 |
451938 |
V-Bar Weldment Price: Call Us |
| 6 |
483453-15 |
Bearing, Plastic 1" I.D. Price: Call Us |
| 8 |
04011-16 |
Screw, #10-32 x 1/2" Self Tap Price: Call Us |
| 9 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 10 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 11 |
04009-10 |
Bolt, Shoulder 1/2 x 2-3/4" Price: Call Us |
| 12 |
481879 |
Spring, Tracking Adjustment Price: Call Us |
| 13 |
04020-25 |
Nut, Jam 3/8-16 Price: Call Us |
| 14 |
48796 |
Bearing, Self Aligning 5/8" I.D. Price: Call Us |
| 15 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 16 |
04042-04 |
Flatwasher Price: Call Us |
| 17 |
483719 |
Rod End, 3/8-16 Female Price: Call Us |
| 18 |
04020-14 |
Nut, Jam 3/8-16 UNC Price: Call Us |
| 19 |
483634 |
Spring, Tracking Adjustment Price: Call Us |
| 20 |
43572 |
Spacer Price: Call Us |
| 21 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 22 |
43751 |
Bushing, Pivot Slide Price: Call Us |
| 23 |
04001-188 |
Bolt, Hex Head 3/8-24 x 3-1/2" Price: Call Us |
| 24 |
44167 |
Rod, Tracking Price: Call Us |
| 25 |
462113 |
Steering Shaft Weldment Price: Call Us |
| 26 |
48092 |
Knob, Shifter Price: Call Us |
| 27 |
451936 |
Handle Weldment, Speed Control Price: Call Us |
| 28 |
04019-03 |
Nut, Serrated Flange Price: Call Us |
| 29 |
483601 |
Spring, Speed Control Slide Price: Call Us |
| 30 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 31 |
43086 |
Bushing, Speed Adjust Lever Price: Call Us |
| 32 |
483453-12 |
Bearing, PLastic 1/2" I.D. Price: Call Us |
| 33 |
483460 |
Slide, Speed Control Price: Call Us |
| 34 |
43077 |
Spacer Price: Call Us |
| 35 |
04014-01 |
Capscrew, 1/4-20 x 3/4" Price: Call Us |
| 36 |
424593 |
Detent Plate Price: Call Us |
| 37 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 38 |
04009-11 |
Bolt, Shoulder Price: Call Us |
| 39 |
04001-26 |
Bolt, Hex Head 3/8-16 x 1-1/4" Price: Call Us |
| 40 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 41 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 42 |
451902 |
Reference Bar Weldment Price: Call Us |
| 43 |
462026 |
Stability Bar Weldment, RH Price: Call Us |
| 44 |
462025 |
Stability Bar Weldment, LH Price: Call Us |
| 45 |
483577 |
Grip, Control Lever Price: Call Us |
| 46 |
04012-02 |
Set Screw, 1/4-28 x 1/4" Price: Call Us |
| 47 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 48 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 49 |
462112 |
Handle Bar Weldment Price: Call Us |
| 50 |
424651 |
Deck Latch Arc Price: Call Us |
| 51 |
483864 |
STEERING PLATE This part replaces 451899. Price: Call Us |
| 52 |
04063-15 |
Key, 3/16 x 3/16 x 3/4" Price: Call Us |
| 53 |
04017-29 |
Bolt, Serrated Flange 3/8-16 x 1-1/2" Price: Call Us |
| 54 |
04017-26 |
Bolt, Serrated Flange 3/8-16 x 1-1/4" Price: Call Us |
| 55 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 56 |
462107 |
Engine Deck Weldment Price: Call Us |
| 57 |
424610 |
Oil Reservoir Mounting Bracket Price: Call Us |
| 58 |
462050 |
Fuel Tank Assembly Price: Call Us |
| 59 |
483557 |
Fuel Pick Up Line Price: Call Us |
| 60 |
482571 |
Bushing, .56 Dia. Viton Price: Call Us |
| 61 |
483792 |
Cap, Fuel Tank This part replaces 482547. Price: Call Us |
| 62 |
483652 |
Rod End, 5/16-24 RH Female Price: Call Us |
| 63 |
04020-31 |
Nut, 5/16-24 UNF Jam Price: Call Us |
| 64 |
483653 |
Link, Pump to V-Bar 5/16-24 Price: Call Us |
| 65 |
04020-30 |
Nut, 5/16-24 UNF Jam LH Price: Call Us |
| 66 |
483651 |
Rod End, 5/16-24 LH Female Price: Call Us |
| 67 |
424609 |
Control Pivot Base Price: Call Us |
| 68 |
04009-12 |
Bolt, Shoulder 1/2 x 6" Price: Call Us |
| 69 |
04009-12 |
Bolt, Shoulder 5/16 x 3/8" Price: Call Us |
| 70 |
04001-10 |
Bolt, Hex Head 5/16-18 x 1-1/4" Price: Call Us |
| 71 |
462110 |
Steering Arm Assembly, LH Price: Call Us |
| 72 |
483453-11 |
Bearing, Plastic Price: Call Us |
| 73 |
462111 |
Steering Arm Assembl,RH Price: Call Us |
| 74 |
483683 |
Steering Return Spring, LH Price: Call Us |
| 75 |
483684 |
Steering Return Spring, RH Price: Call Us |
| 76 |
04009-09 |
Bolt, Shoulder 1/2 x 1" Price: Call Us |
| 77 |
04069-02 |
Pin, Rue Cotter 1/2" Dia. Price: Call Us |
| 78 |
424605 |
V-Link Price: Call Us |
| 79 |
04001-135 |
Bolt, Hex Head 3/8-16 x 3/4" Grade 8 Price: Call Us |
| 80 |
43750 |
Spacer, V-Link to Tracking Rod Price: Call Us |
| 81 |
43775 |
Spacer Price: Call Us |
| 82 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 83 |
424666 |
Shield, Pump Price: Call Us |
| 84 |
04017-16 |
Bolt, Serrated Flange 5/16-18 x 3/4" Price: Call Us |
| 85 |
42749 |
Spacer, V-Link to Pump Price: Call Us |
| 86 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 87 |
04025-03 |
Nut, Metric M5 x 0.8 Price: Call Us |
| 88 |
462461 |
PADDLE OPC UPGRADE, SWZV This part replaces 483721. Price: Call Us |
| 89 |
483722 |
Cap, Grip End Price: Call Us |
