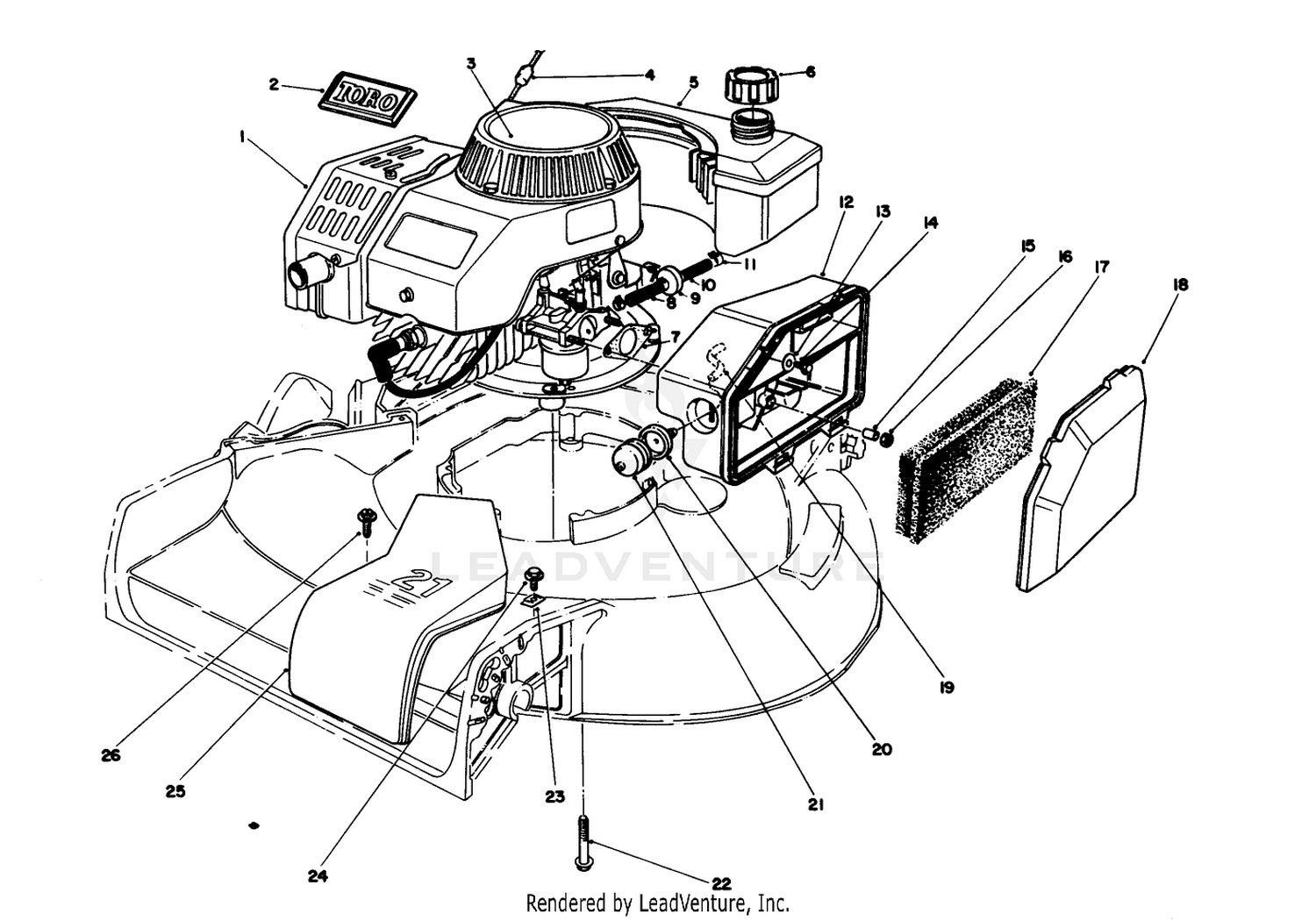

Engine Assembly (serial No. 8001572 Up)

Engine Assembly (serial No. 8001572  Up)

Parts (26)

RefPart NumberDescription
1 12-8099 ENGINE SHORT BLOCK This part replaces 51-0413. Price: Call Us
2 98-3206 DECAL This part replaces 46-8290. Price: $1.99
3 57-9870 DISCONTINUED Price: Call Us
4 81-3980 STOP Price: $5.11
5 99-5263 DISCONTINUED This part replaces 81-0162. Price: Call Us
6 55-3575 GAS CAP ASM Price: $12.03
7 81-0090 GASKET-AIR CLEANER Price: $4.37
8 51-3216 HOSE-FUEL Price: $2.64
9 56-6360 FILTER-FUEL Price: $5.79
10 51-3215 HOSE-FUEL Price: $2.38
11 2412-95 CLAMP-FUEL LINE Price: $0.93
12 63-9330 BODY-AIR CLEANER Price: Call Us
13 3256-16 WASHER-FLAT Price: $0.39
14 51-2690 SCREW-HH Price: $1.24
15 62-3980 SPACER Price: $1.65
16 50-7180 NUT Price: $3.48
17 63-9380 ELEMENT-AIR CLEANER Price: $8.74
18 63-9340 COVER-AIR CLEANER Price: $32.52
19 44-3172 HOSE-PRIMER Price: $3.63
20 44-2750 BODY-PRIMER Price: $6.55
21 66-7460 BULB-PRIMER This part replaces 44-3100. Price: $3.05
22 66-9302 SCREW-HHF, WHIZ Price: $4.49
23 62-3720 CLAMP-CABLE Price: $1.31
24 32144-11 SCREW-THD ROLL, HWH Price: $6.99
25 46-4780 BELT COVER 21" S D Price: $19.88
26 12-5450 SCREW Price: $7.99
