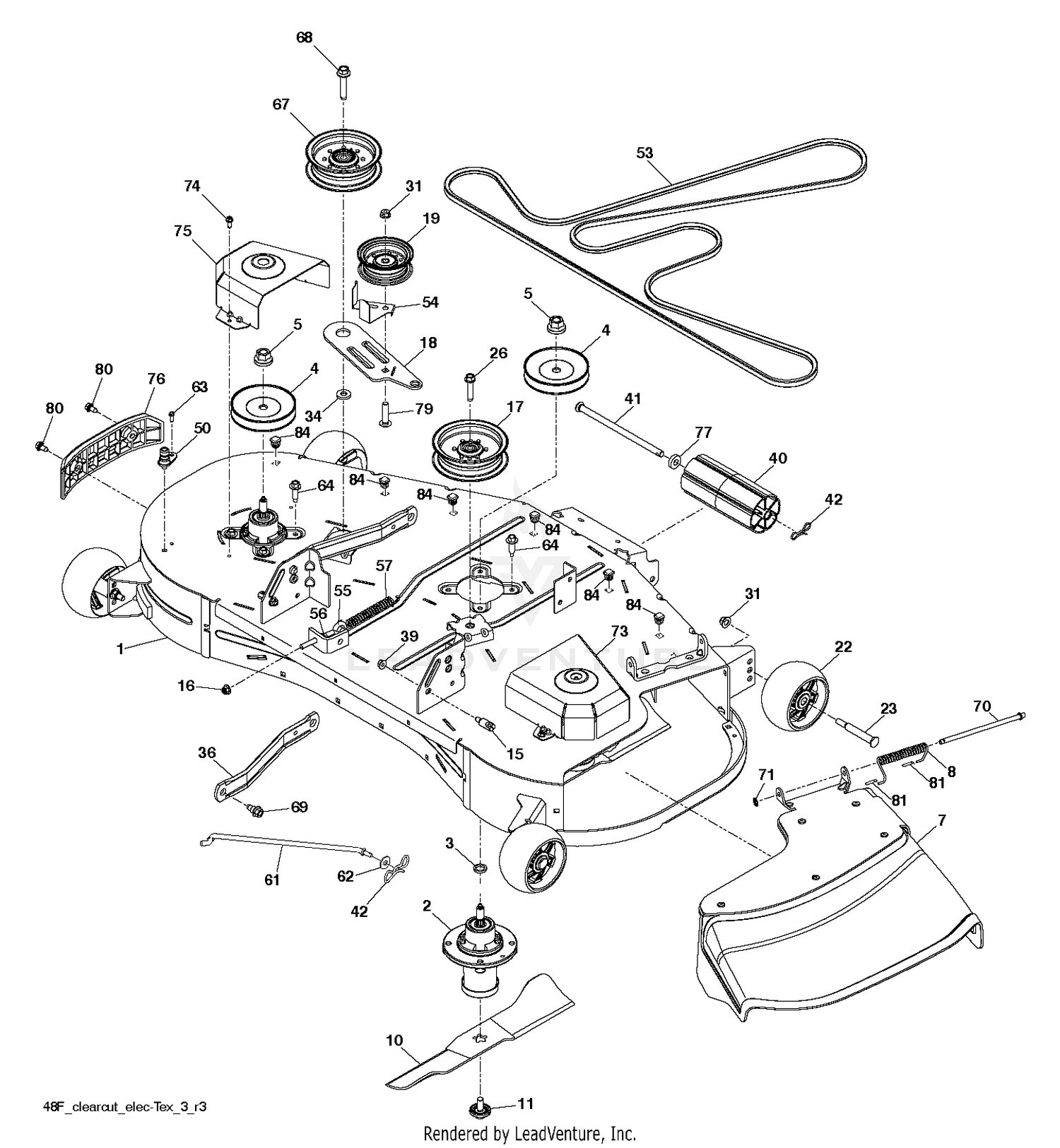

| Ref | Part Number | Description |
|---|
| 1 |
115-0120-03 |
PEDAL-BRAKE Price: $158.58 |
| 1 |
583810001 |
DECK.SVC.48.CC.ASM.668 This part replaces 588788002. Price: $699.99 |
| 2 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 2 |
539131898 |
MANDREL ASM, CAST IRON Price: $69.99 |
| 3 |
104-7179 |
PIVOT-PEDAL Price: $43.97 |
| 3 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 4 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 4 |
532173434 |
MANDREL PULLEY Price: $14.99 |
| 5 |
596134801 |
Nuts Price: $1.00 |
| 5 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 6 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 7 |
593649701 |
GSPW Deflectors Price: $84.99 |
| 8 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 9 |
115-0129 |
ROD-PAWL, BRAKE Price: $29.11 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 10 |
588811002 |
BLADE.BAGGER.RES.CLRCT.48".BLK Price: $29.99 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
99-7214 |
PAWL-BRAKE Price: $28.35 |
| 14 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 15 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 15 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 16 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 16 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 17 |
323-12 |
SCREW-HH Price: $1.14 |
| 17 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 18 |
117-0238 |
DETENT Price: $11.85 |
| 18 |
529470302 |
IDLER ARM This part replaces 588812202. Price: $6.99 |
| 19 |
5-0652 |
SPACER Price: $5.35 |
| 19 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 20 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
117-0106 |
CABLE-BRAKE, RH Price: $117.67 |
| 22 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 23 |
117-0107 |
CABLE-BRAKE, LH Price: $113.33 |
| 23 |
596434404 |
Bolts Price: $4.99 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
110-8982 |
WASHER-SPRING Price: $2.71 |
| 26 |
115-8060 |
CLEVIS-DOUBLE Price: $15.64 |
| 27 |
115-8059 |
YOKE-CABLE Price: $11.28 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 34 |
532178515 |
WASHER Price: $5.99 |
| 36 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 39 |
596135701 |
GSPW Nuts Price: $2.99 |
| 40 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 41 |
594092501 |
Rods Price: $5.99 |
| 42 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 50 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 53 |
599275701 |
Belts Price: $54.99 |
| 54 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 55 |
596240801 |
GSPW Bolts Price: $3.99 |
| 56 |
596039201 |
GSPW Hardware Price: $2.99 |
| 57 |
587358401 |
SPRING.EXTN.42.FCS.TR.DECK.DRV Price: $6.99 |
| 61 |
596274401 |
Rods Price: $9.99 |
| 62 |
596133201 |
Washers Price: $5.99 |
| 63 |
596637301 |
Screws Price: $2.99 |
| 64 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 67 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 68 |
599972501 |
BOLT This part replaces 596564003. Price: $2.99 |
| 69 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 70 |
595297001 |
Rods Price: $4.99 |
| 71 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
588812402 |
COVER.PNT.MANDREL.RH.GREY Price: $34.99 |
| 74 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 75 |
588813102 |
COVER.PNT.MANDREL.LH.TR.GREY Price: $17.99 |
| 76 |
582541103 |
BUMPER 48 CLEARCUT TRIM SIDE A Price: $11.99 |
| 77 |
582360501 |
BUSHING.NOSE.ROLLER Price: $3.99 |
| 79 |
596136201 |
Bolts Price: $3.99 |
| 80 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 81 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 84 |
596952201 |
Plugs Price: $2.99 |
