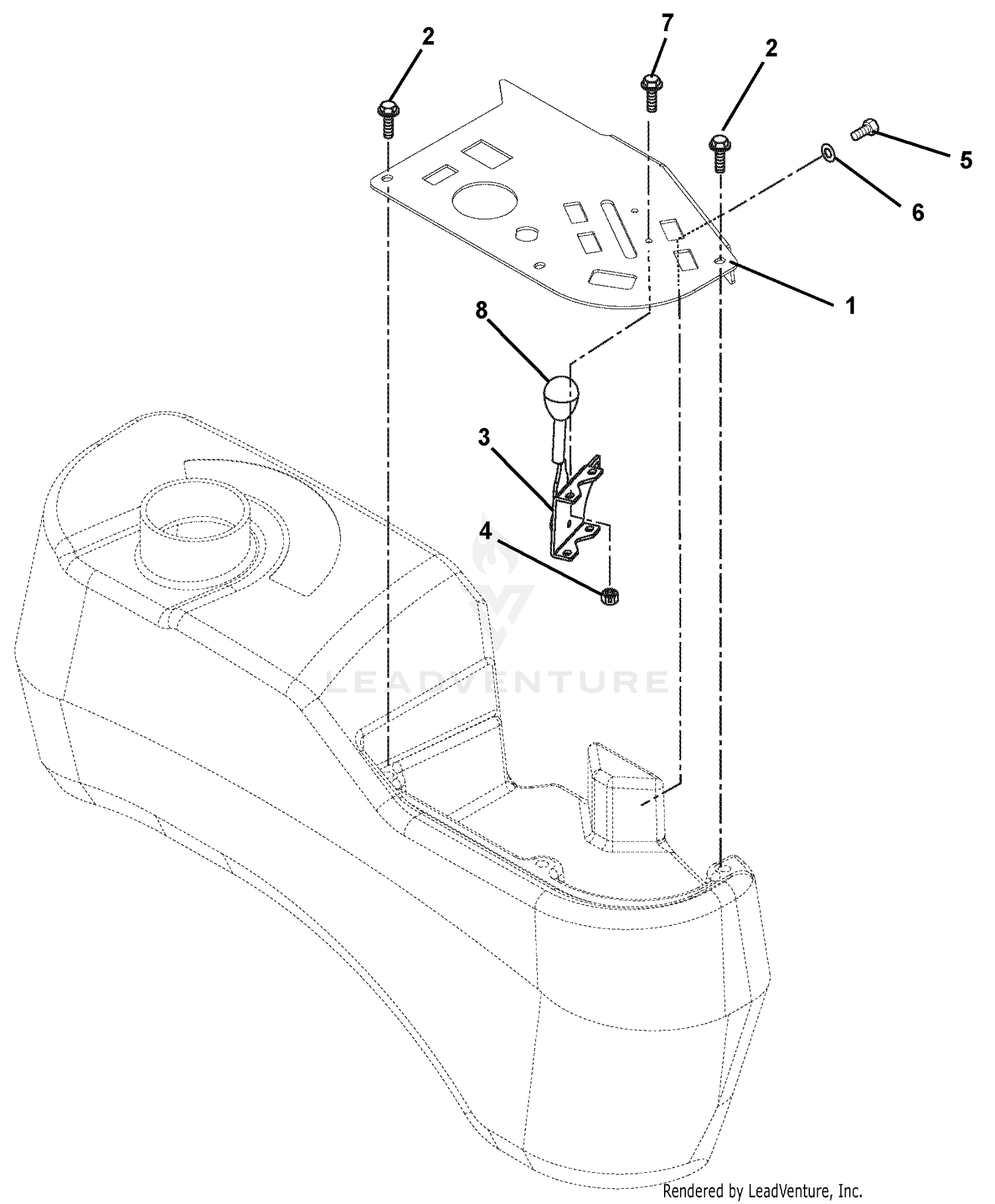

Control Panel
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 04263751 | PANEL-CONTROL PM200 DIESEL Price: $32.95 |
| 2 | 06100211 | SCR-MCH 10-24X.38 HWHSTAINLESS Price: $2.95 |
| 3 | 06900431 | CABLE-THROTTLE 47.37" Price: $54.45 |
| 4 | 06500915 | NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 5 | 05901704 | BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 6 | 06401023 | WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 7 | 05901825 | BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
