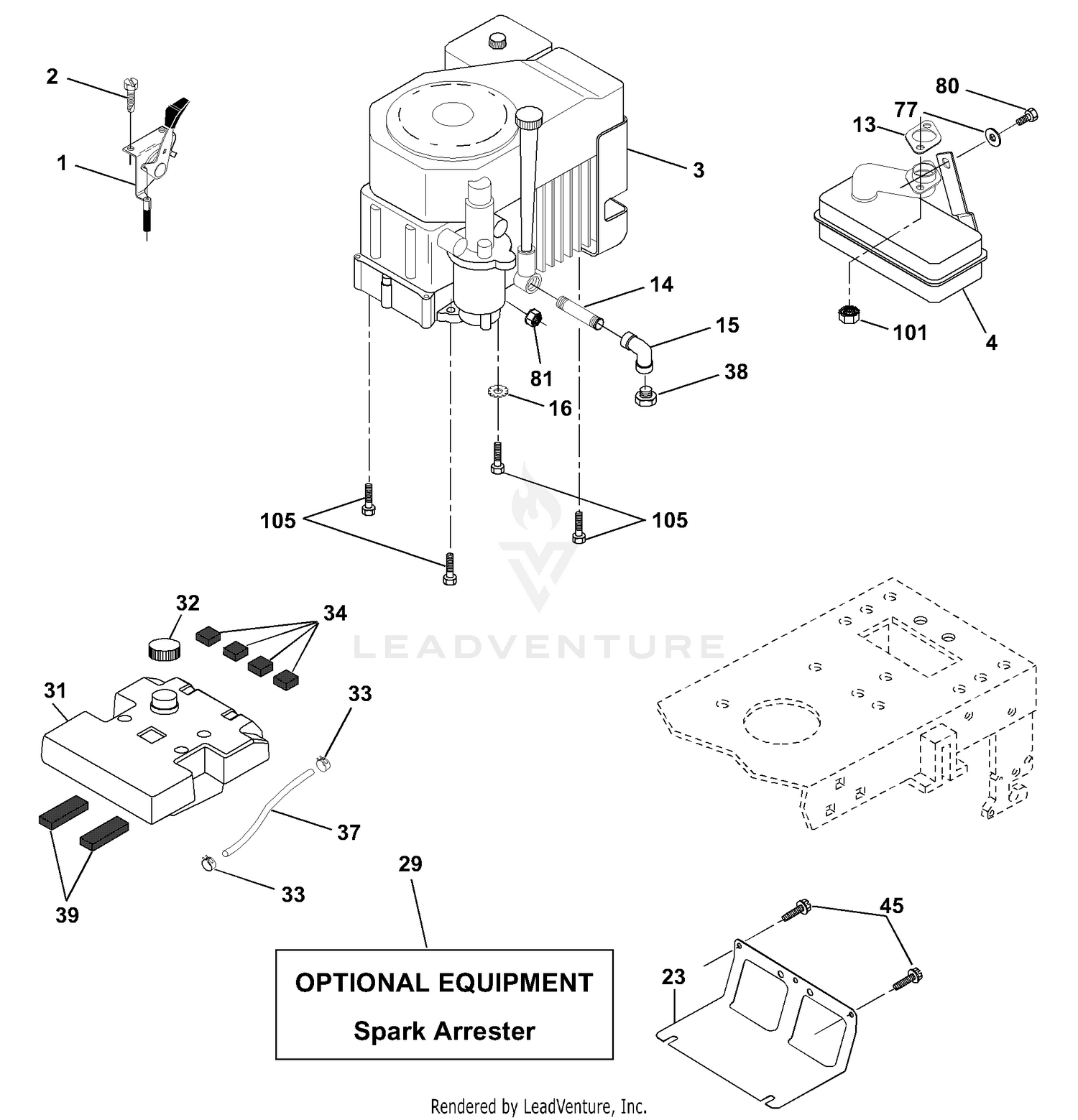

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT This part replaces 532141296. Price: $27.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT Price: $99.99 |
| 13 |
532163831 |
KOHLER GASKET Price: $3.30 |
| 14 |
813280328 |
Nipple Pipe 3/8 Npt X 3-1/2 Price: $4.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 37 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 532124923. Price: $5.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
874760508 |
Bolt Hex Hd. 5/16-18unc x 1/2 Price: $3.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
