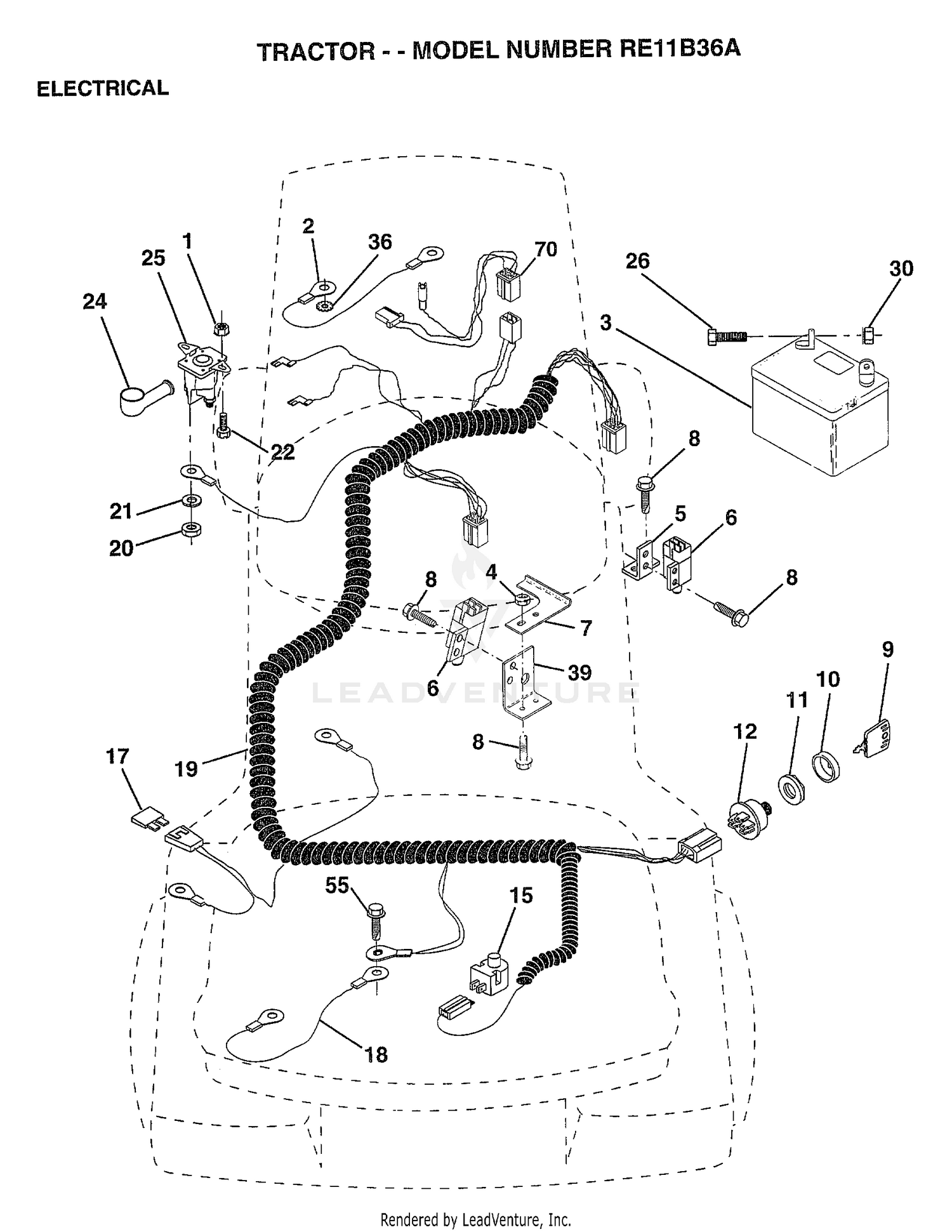

| Ref | Part Number | Description |
|---|
| REFER |
REFER |
TO IMAGE Price: Call Us |
| 1 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 1 |
83-7470 |
SHIM Price: $8.86 |
| 2 |
108423X |
CABLE ASM. Price: Call Us |
| 2 |
99-6976 |
DRIVESHAFT Price: $1,202.84 |
| 3 |
144924 |
SUB= 123899X Price: Call Us |
| 4 |
32151-87 |
RING-RETAINING Price: $1.22 |
| 4 |
69180 |
LOCKNUT Price: Call Us |
| 5 |
108236X |
BRACKET LT Price: Call Us |
| 5 |
71-4590 |
WASHER-THRUST Price: $3.32 |
| 6 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 6 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 7 |
146374 |
KEEPER.ACTUAT.LR. Price: Call Us |
| 7 |
3274-64 |
SCREW-HSH This part replaces 3274-8. Price: $1.02 |
| 8 |
17021008 |
SCREW Price: Call Us |
| 9 |
140401 |
KEY MLD GEN DELTA Price: Call Us |
| 10 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 11 |
140400 |
SUB= 145774 Price: Call Us |
| 12 |
163088 |
SWITCH.IGNITION Price: Call Us |
| 14 |
83-4970-03 |
BRACKET-BEARING Price: $95.44 |
| 15 |
121305X |
SWITCH SEAT Price: Call Us |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
322-8 |
SCREW-HH Price: $1.26 |
| 17 |
108824X |
FUSE HYT Price: Call Us |
| 17 |
76-2460 |
BEARING ASM Price: $67.16 |
| 18 |
128353 |
CABLE ASSY Price: Call Us |
| 18 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 19 |
166143 |
HARNESS.IGNITION Price: Call Us |
| 19 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 20 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
10090400 |
SUB= 10040400 Price: Call Us |
| 21 |
3274-34 |
SCREW-HSFH Price: $3.73 |
| 22 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 22 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 24 |
131563 |
SUB= 154336 Price: Call Us |
| 25 |
145673 |
SUB= 146154 Price: Call Us |
| 26 |
74760412 |
BOLT LT Price: Call Us |
| 30 |
73510400 |
NUT Price: Call Us |
| 36 |
11150400 |
LOCKWASHER Price: Call Us |
| 39 |
141735 |
BRACKET SWT CLUTC Price: Call Us |
| 55 |
17490508 |
SCREW LT Price: Call Us |
