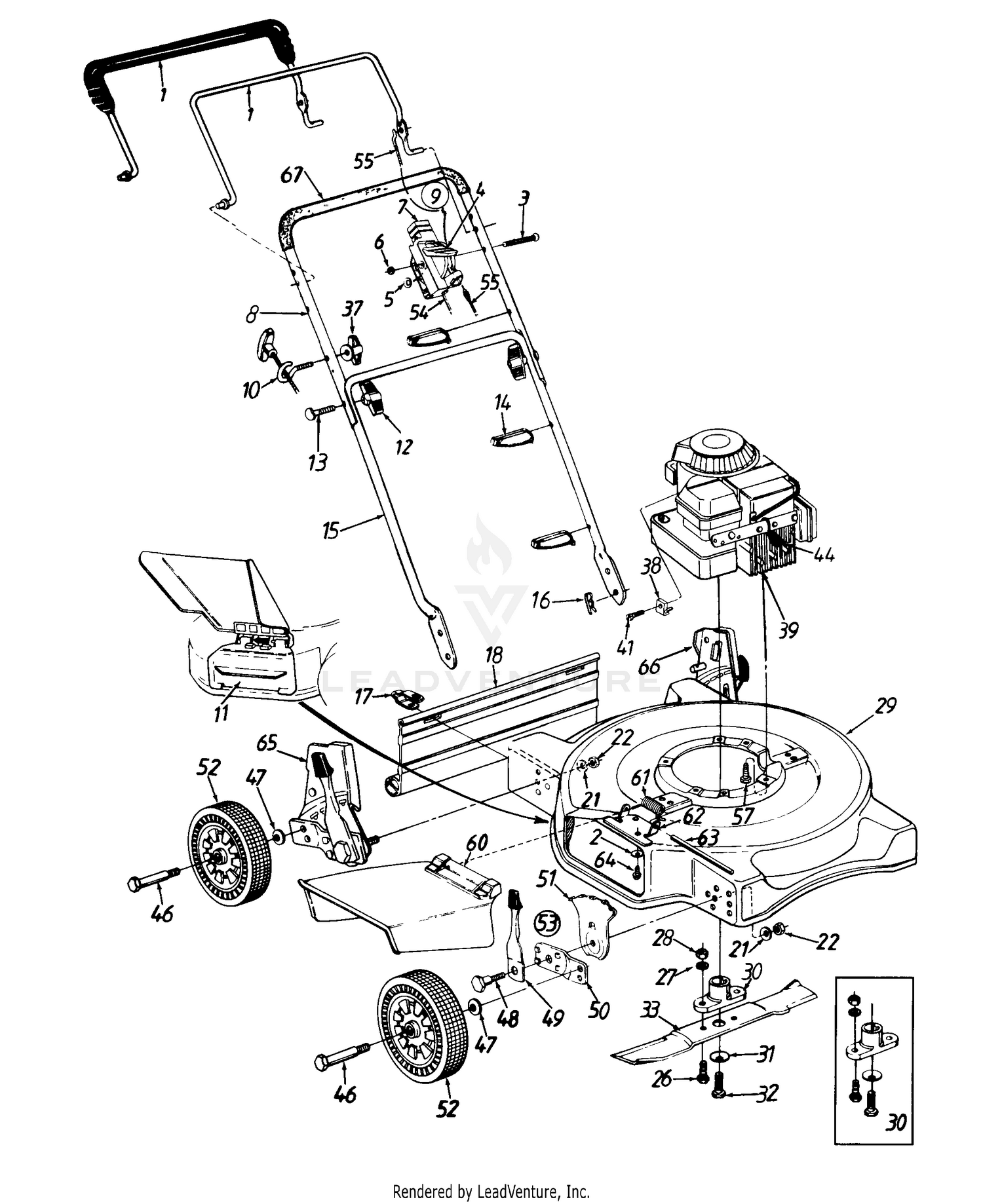

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 2 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 3 |
710-0605 |
Oval C-Sunk Mach. Scr. Price: $3.85 |
| 4 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 5 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 6 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 7 |
946-0875 |
Throttle Body This part replaces 646-0875. Price: $8.64 |
| 8 |
749-0538C |
UPPER HANDLE Not Available Price: |
| 10 |
710-1205 |
Rope Guide This part replaces 747-1205. Price: $3.53 |
| 12 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 13 |
710-1174 |
Curved Hd. Bolt 5/16-18 x 2" Lg. Price: $6.28 |
| 14 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 15 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 16 |
714-0104 |
Hairpin Cotter Price: $3.90 |
| 17 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 18 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872A. Price: |
| 21 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 30 |
753-0484 |
Blade Adapter Kit Price: $21.69 |
| 31 |
736-0452 |
Bell-Wash. .39" I.D. Price: $4.05 |
| 32 |
710-1044 |
Hex Bolt 3/8-24 x 1.5" Lg. Price: $3.48 |
| 37 |
720-0279 |
Wing Nut 1/4-20 Thd. Price: $3.93 |
| 38 |
BS-690798 |
Cable Clamp (B&S) This part replaces 751B213146. Price: $4.88 |
| 39 |
N/A |
Engine |
| 41 |
710-1237 |
Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg. Price: $3.89 |
| 46 |
738-0102 |
Axle Bolt Price: $9.22 |
| 47 |
736-0105 |
Bell-Wash. .400" I.D. x .88" Price: $3.96 |
| 48 |
738-0507B |
Shld. Bolt .50" Dia. x .357" Price: $3.86 |
| 49 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 50 |
15262B |
Pivot Bar Price: $13.59 |
| 51 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 52 |
N/A |
Wheel Ass'y. Comp. |
| 53 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 57 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. Price: $3.75 |
| 60 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
| 61 |
932-0593 |
Torsion Spring This part replaces 732-0593. Price: $4.24 |
| 62 |
17032A |
PLATE-ADAPTER Not Available This part replaces 17032. Price: |
| 63 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 64 |
710-0599 |
Hex Self-Tap Scr. 1/4-20 x .5" Price: $3.86 |
| 65 |
987-02106A |
HANDLE BRACKET ASSEMBLY (RH) Not Available This part replaces 682-3024. Price: |
| 66 |
987-02107A |
BRACKET ASSEMBLY Not Available This part replaces 682-3025. Price: |
