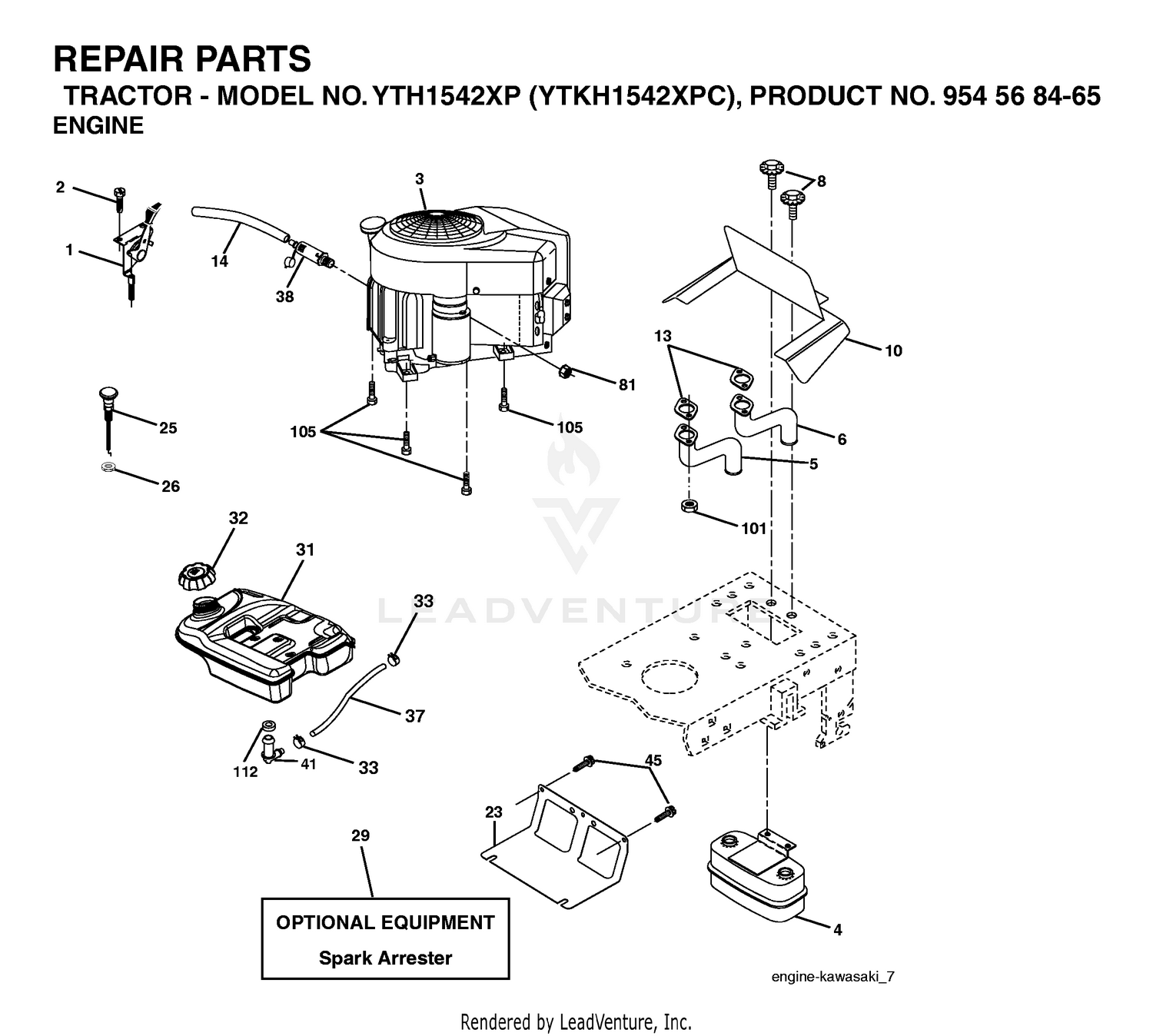

| Ref | Part Number | Description |
|---|
| 1 |
125-7120 |
ALTERNATOR-12V Price: $755.08 |
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
125-7121 |
BOLT-STOPPER Price: $132.38 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
125-7122 |
PIECE-DISTANCE Price: $15.42 |
| 4 |
125-7230 |
NUT Price: $2.81 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
125-6947 |
SPACER Price: $21.65 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
125-7101 |
ADJUSTER-BELT Price: $132.31 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
125-7134 |
BOLT Price: $25.74 |
| 8 |
125-7219 |
BOLT Price: $4.58 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
125-7173 |
RELAY Price: $36.87 |
| 10 |
125-7131 |
WASHER Price: $3.48 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
