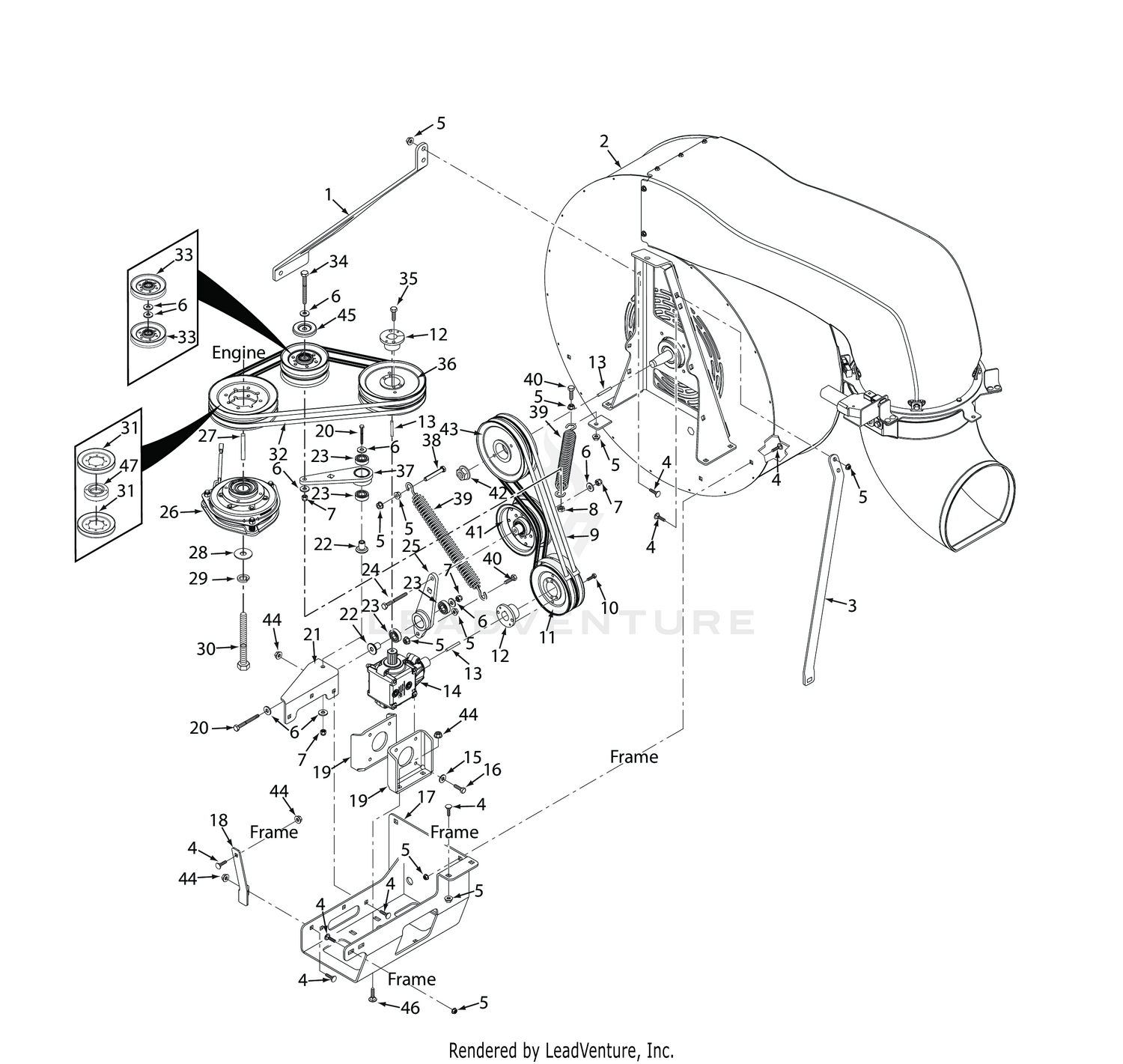

| Ref | Part Number | Description |
|---|
| 1 |
428047 |
LH Support Bar, Blower Price: Call Us |
| 2 |
463312 |
Blower Housing, With Decal Price: Call Us |
| 3 |
427830 |
RH Support Bar, Blower Price: Call Us |
| 4 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 5 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 6 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 7 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 8 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 9 |
486324 |
Pulley, 5.73 OD, Double Groove Price: Call Us |
| 10 |
04001-224 |
Hub, Tapered, 1" Bore Price: Call Us |
| 11 |
483285 |
Pulley, Double Groove Price: Call Us |
| 12 |
48141 |
TAPERED HUB, 1.00" BORE Price: Call Us |
| 13 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 14 |
486380 |
Gearbox Assembly Price: Call Us |
| 15 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 16 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 17 |
427811 |
Mounting Bracket, Gearbox Price: Call Us |
| 18 |
427882 |
Support Strap, Gearbox Price: Call Us |
| 19 |
428002 |
Mounting Plate, Gearbox Price: Call Us |
| 20 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 21 |
427815 |
Idler Arm Bracket, Gearbox Price: Call Us |
| 22 |
43689 |
Pivot, Idler Short Price: Call Us |
| 23 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 24 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 27 |
04063-28 |
Key, 1/4 x 1/4 x 3-1/2" Price: Call Us |
| 29 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 30 |
04102-06 |
Bolt, Hex Head 7/16-20 x 3" w/t Patch Price: Call Us |
| 31 |
486172 |
Pulley, Clutch 7.30 DIA Price: Call Us |
| 32 |
486323 |
Belt, Gearbox Input Price: Call Us |
| 33 |
48181 |
IDLER PULLEY, "V" GROOVE Price: Call Us |
| 34 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 35 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 36 |
486267 |
Pulley, Gearbox Input, 6.95 DIA, Double Groove Price: Call Us |
| 38 |
04001-139 |
Bolt, Hex Head 3/8-16 x 2-1/2" Grade 8 Price: Call Us |
| 39 |
483112 |
Spring, Transmission Drive Price: Call Us |
| 40 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 41 |
483210 |
Pulley, Idler 5" Dia. Price: Call Us |
| 42 |
04112-06 |
Nut, 3/4-16 Spriral Lock Price: Call Us |
| 43 |
486266 |
Pulley, Blower, 6.95 DIA, Double Groove Price: Call Us |
| 44 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 45 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 46 |
04003-49 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
