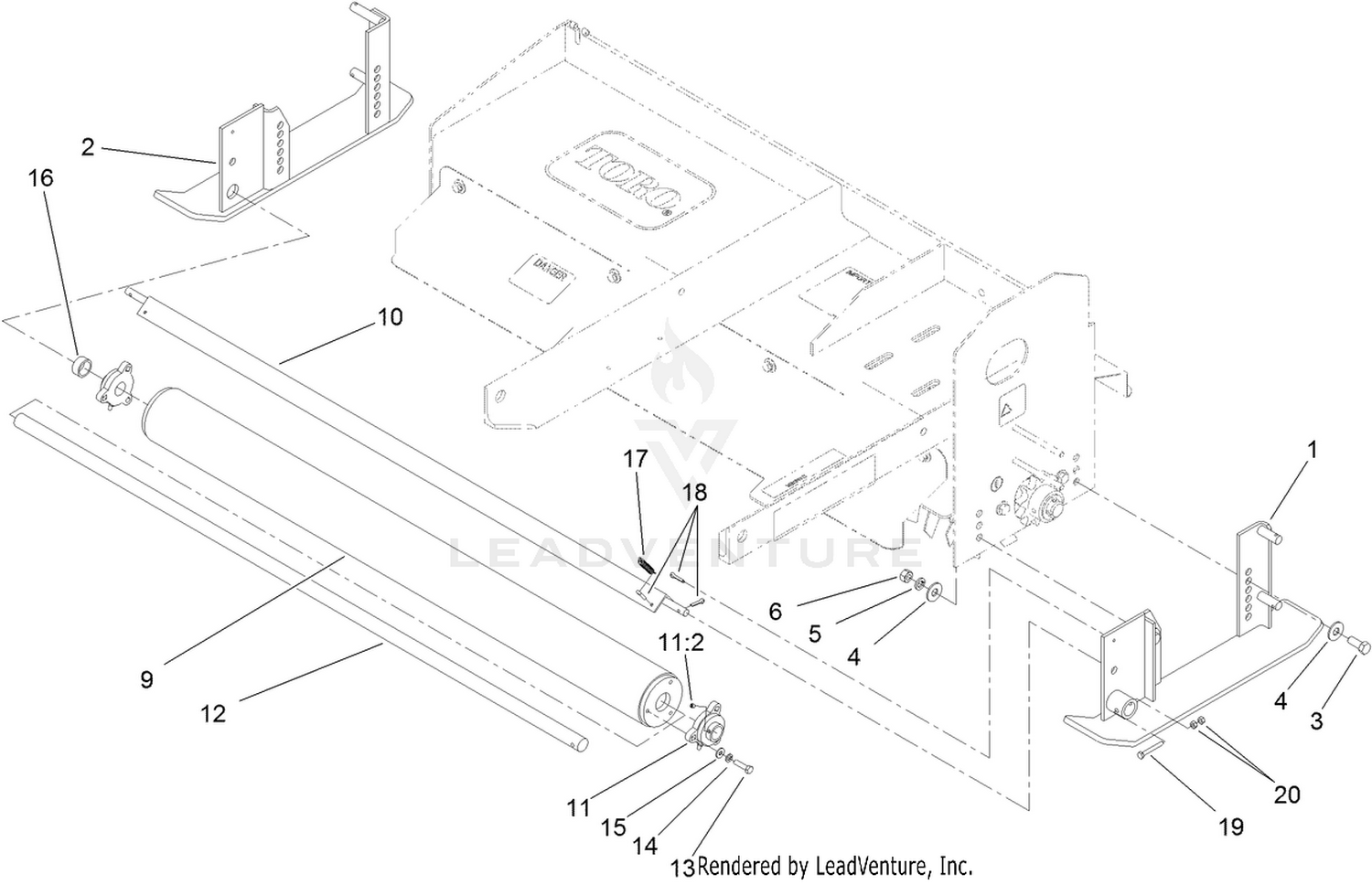

Roller and Scraper Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-2536 | LH SKID ASM Price: $872.24 |
| 2 | 104-2534 | RH SKID ASM Price: $774.08 |
| 3 | 325-6 | SCREW-HH Price: $1.42 |
| 4 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 5 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 6 | 3217-9 | NUT-HH Price: $0.37 |
| 9 | 83-005-0042 | ROLLER ASM Price: $704.80 |
| 10 | 83-005-0072 | ROLLER WIPER ASM Price: $331.65 |
| 11 | 01-100-0260 | BEARING-FLANGE Price: $104.64 |
| 12 | 83-004-0841-01 | SHAFT-ROLLER Price: $336.64 |
| 13 | 322-6 | SCREW-HH Price: $0.45 |
| 14 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 15 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 16 | 83-004-0371 | SPACER-ROLLER Price: $30.62 |
| 17 | 01-261-0130 | SPRING-EXTENSION Price: $11.04 |
| 18 | 3272-48 | PIN-COTTER Price: $0.25 |
| 19 | 321-11 | SCREW-HH Price: $0.36 |
