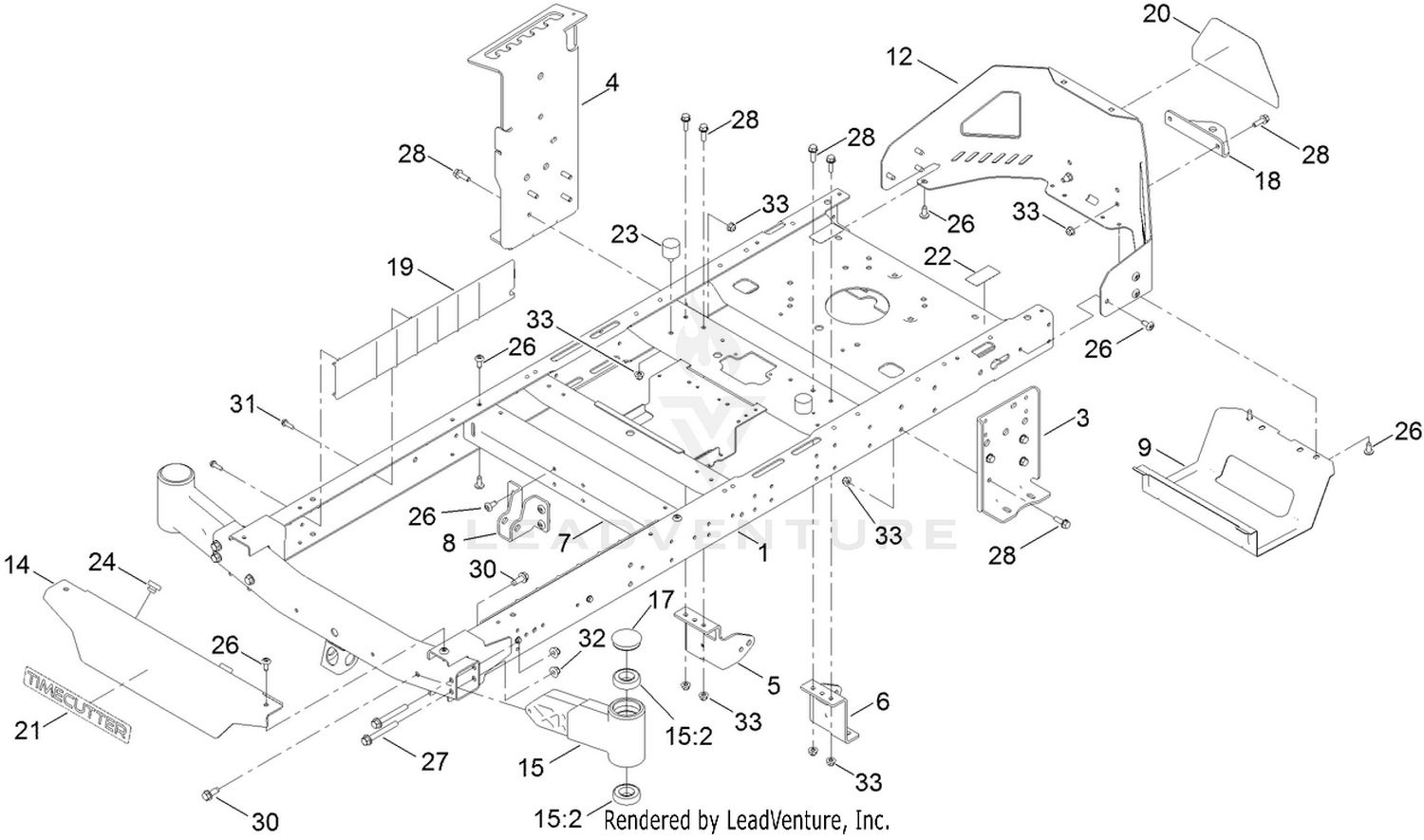

Frame Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-9820-01 | FRAME ASSEMBLY Price: $324.52 |
| 3 | 138-7520-01 | PLATE-MOUNT, HYDRO Price: $16.81 |
| 4 | 139-2352-01 | PLATE-MOUNT HYDRO, RH Price: $38.03 |
| 5 | 137-7020-01 | MOUNT-HYDRO, FRONT (RIGHT) Price: $10.68 |
| 6 | 139-3211-01 | MOUNT-HYDRO, FRONT (LEFT) Price: $10.06 |
| 7 | 138-2527-01 | BRACE-CROSS, LOWER Price: $24.60 |
| 8 | 139-3260-01 | BRACKET-MOUNT DAMPER, LOWER Price: $8.72 |
| 9 | 138-0867-03 | GUARD-MUFFLER Price: $21.25 |
| 12 | 138-9820-03 | GUARD-ENGINE Price: $58.18 |
| 14 | 138-7596-01 | FOOTREST Price: $36.92 |
| 15 | 140-2097 | AXLE STUB ASM Price: $52.58 |
| 17 | 138-7200 | CAP-GREASE Price: $2.38 |
| 18 | 117-1232-03 | BRACKET-HITCH Price: $19.74 |
| 19 | 138-7516 | GUARD-RAIL Price: $9.51 |
| 20 | 139-5890 | DECAL-TIMECUTTER Price: $3.34 |
| 21 | 139-2387 | DECAL-TIMECUTTER Price: $2.24 |
| 22 | 121-2989 | DECAL-BYPASS Price: $2.26 |
| 23 | 137-4803 | BUMPER-RUBBER Price: $2.84 |
| 24 | 140-3460 | BUMPER-RUBBER Price: $0.55 |
| 26 | 138-9753 | SCREW Price: $0.39 |
| 27 | 139-2429 | SCREW-HHF Price: $1.10 |
| 28 | 3234-29 | SCREW-HHF Price: $1.84 |
| 30 | 139-2428 | SCREW-HWH Price: $0.66 |
| 31 | 46-8091 | SCREW-HWH Price: $3.59 |
| 32 | 139-2430 | NUT-HF, NI Price: $0.43 |
