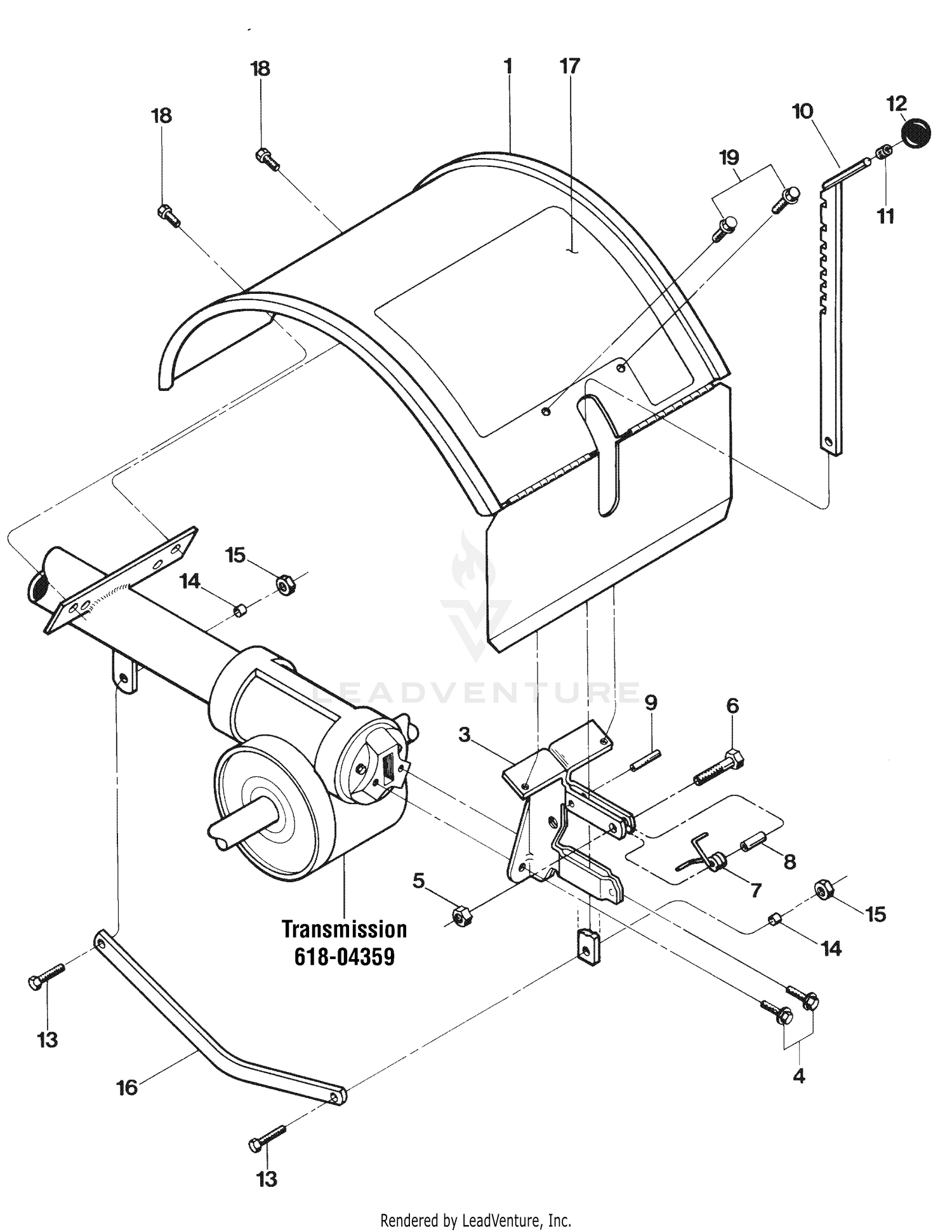

| Ref | Part Number | Description |
|---|
| 1 |
686-04078-0638 |
TINE SHIELD ASSEMBLY (MTD RED) Not Available This part replaces 686-04078. Price: |
| 2 |
711-0577 |
CLEVIS PIN Not Available This part replaces 710-0169. Price: |
| 3 |
GW-1925 |
REAR HOOD Not Available Price: |
| 5 |
712-04064 |
Hex Locknut, 1/4-20 Price: $3.64 |
| 7 |
732-04320 |
Spring Price: $3.85 |
| 8 |
750-04556 |
Spacer Price: $6.01 |
| 9 |
715-04034 |
Roll Pin (spiral), 1/4 x 1 Price: $6.01 |
| 10 |
1900864 |
Depth Regulator This part replaces GW-1117A. Price: $75.79 |
| 11 |
GW-9120 |
Retaining Ring (tolerance ring) Price: $5.94 |
| 12 |
GW-9119 |
Knob, Depth Regulator Price: $10.22 |
| 14 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 15 |
712-04065 |
Hex Nut, 3/8-16 Price: $3.68 |
| 16 |
1916185001 |
DRAG BAR Not Available This part replaces GW-20775. Price: |
| 17 |
777S30649 |
Decal, operating instructions Price: $23.84 |
