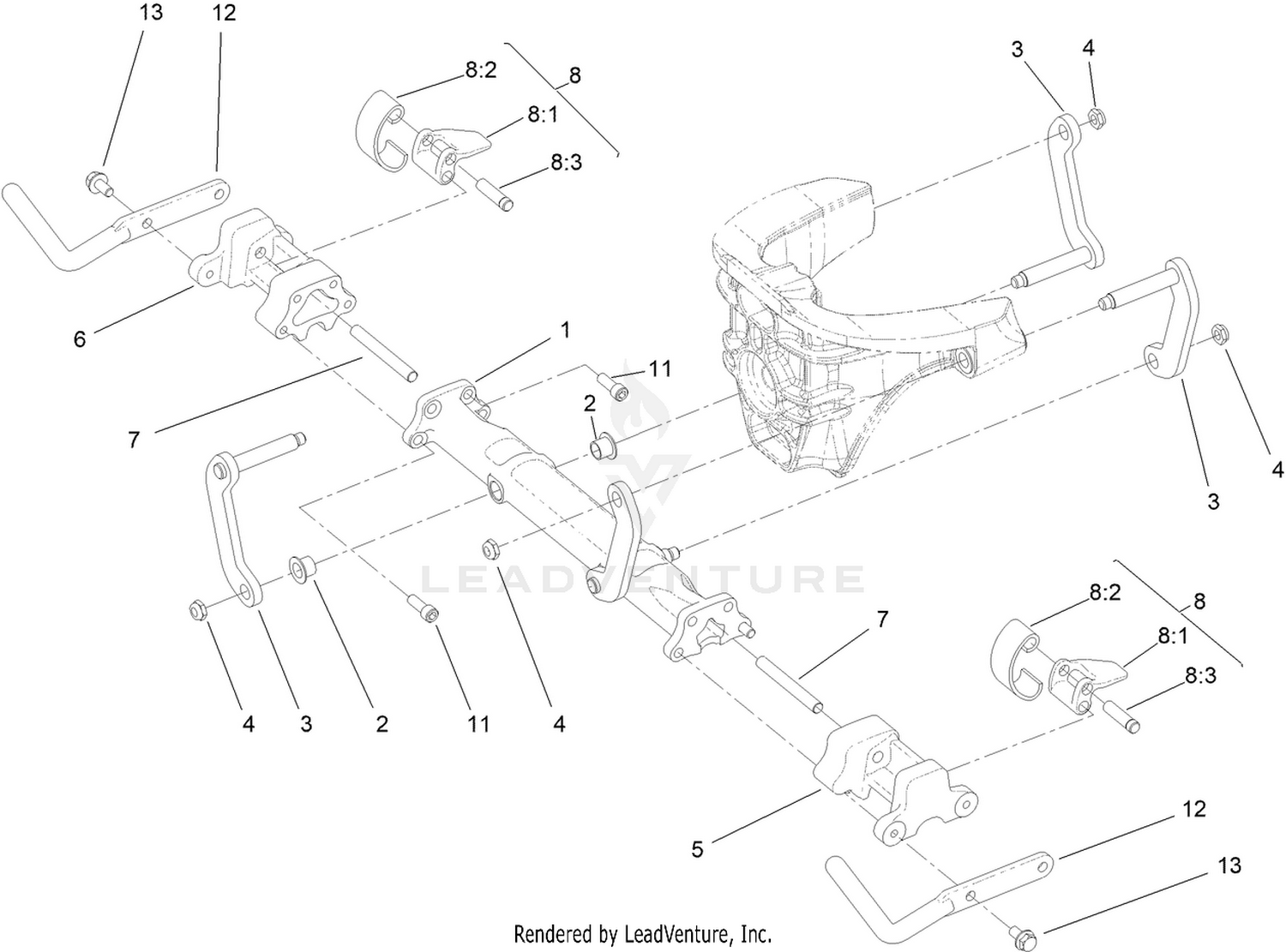

Suspension Crossarm Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-3217 | CROSSARM Price: $206.43 |
| 2 | 125-5239 | BUSHING-FLANGE Price: $4.21 |
| 3 | 117-6654 | LINK Price: $28.80 |
| 4 | 121-4600 | NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 5 | 117-9482 | MOUNT-CROSS ARM, LH Price: $142.86 |
| 6 | 117-9492 | MOUNT-CROSS ARM, RH Price: $142.86 |
| 7 | 114-8051 | PIN-PIVOT Price: $6.86 |
| 8 | 161-4736 | CLAMP-CROSSARM Price: $50.59 |
| 11 | 120-3227 | SCREW-HSH Price: $0.49 |
| 12 | 120-2784-01 | HORN-BASKET Price: $11.39 |
