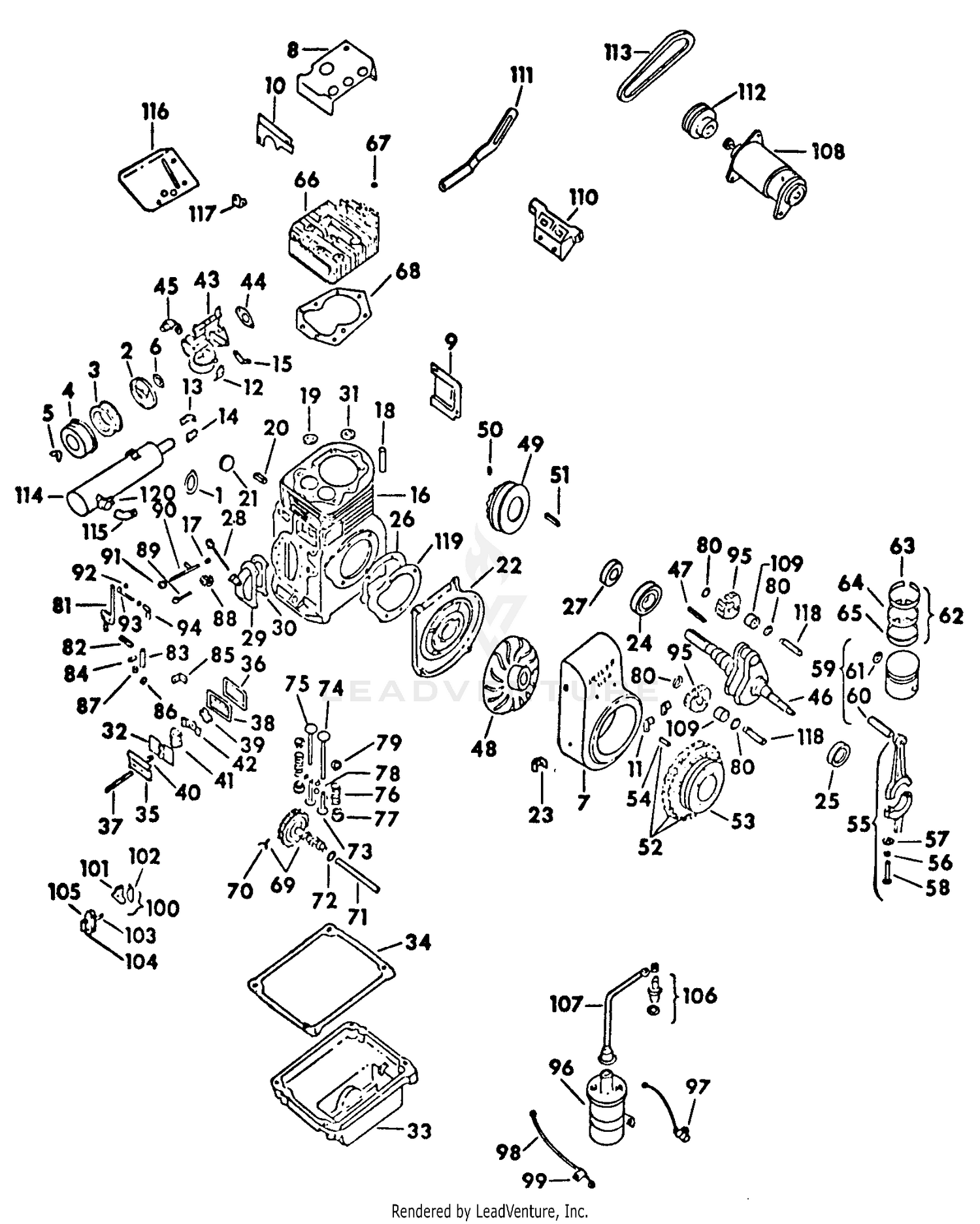

Engine-K341-16 Hp

Engine-K341-16 Hp

Parts (147)

RefPart NumberDescription
1 582460103 SEAT This part replaces 574284601. Price: $1,399.99
1 76-7800 DISCONTINUED Price: $295.33
1 KH-45-100-01-S NUT-EXHAUST ELBOW Not Available This part replaces KH-45-100-01. Price:
2 510039302 PAN, SEAT, BLACK Price: $109.99
2 94-8019 ARM-ROD,TIE This part replaces 76-7940. Price: $1,439.52
2 KH-47-094-02 AIR CLEANER BASE Not Available Price:
3 4588302S1C AIR FILTER/PRE CLE This part replaces 759-3359. Price: $37.09
3 515990602 Bolts This part replaces 515990601. Price: $1.99
3 76-4260 BUSHING Price: $6.38
4 510064102 Rods This part replaces 510064101. Price: $7.99
4 94-5603 BUSHING-METRIC This part replaces 76-7950. Price: $110.04
4 KH-47-082-02 Cover, Air Cleaner Price: Call Us
5 539913847 NUT 3/8 PALNUT RTNG BLK PHOS Price: $3.99
5 76-7820 SHIM - THRUST B Price: $13.73
5 KH-25-100-15-S WING NUT 1/4-20 Not Available This part replaces KH-X-276-7. Price:
6 521996502 GSPW Nuts This part replaces 521996501. Price: $2.99
6 76-8000 DISCONTINUED Price: Call Us
6 KH-275341 GASKET Not Available Price:
7 None Housing Assy, Blower
7 525834202 Screws This part replaces 525834201. Price: $3.99
7 76-8010 WASHER Price: $1.53
8 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
8 76-7710 DISCONTINUED Price: Call Us
8 KH-45-124-01 BAFFLE, CYLINDER HEAD AIR Not Available Price:
9 574182202 LATCH.SEAT.BLACK Price: $219.99
9 76-7720 DISCONTINUED Price: Call Us
9 KH-45-063-01 BAFFLE Not Available Price:
10 520283101 SPRING, TORSION Price: $2.99
10 76-8030 DISCONTINUED Price: Call Us
10 KH-235652 BAFFLE Not Available Price:
11 510283801 BUMPER, RUBBER Price: $19.99
11 93-7783 RING - RETAINING Price: $15.58
11 IH-263515-R91 Clip, Throttle Cable Price: Call Us
12 521996502 GSPW Nuts This part replaces 521996501. Price: $2.99
12 93-7784 DISCONTINUED Price: Call Us
12 KH-235603 CLIP-CHOKE CABLE Not Available Price:
13 593337201 SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99
13 93-7785 NUT Price: $7.86
13 KH-A-237559-S BRACKET Not Available This part replaces KH-A-237559. Price:
14 3272-7 PIN-COTTER Price: $0.25
14 532421062 SWITCH.SNAPMOUNT.NC This part replaces 539119741. Price: $12.99
14 KH-235603 CLIP-CHOKE CABLE Not Available Price:
15 574284602 COVER, BACK Price: $219.99
15 KH-A-236919 BRACKET-CH Not Available Price:
16 574284603 COVER KIT, CUSHION Price: $249.99
16 76-8050 END-ROD, RH Price: $239.29
17 574284604 TRACK KIT Price: $169.99
17 93-7786 DISCONTINUED Price: Call Us
18 KH-235007-S GUIDE Not Available Price:
19 KH-230265 INSERT Not Available Price:
20 KH-235125-S GOVERNOR SHAFT GEA Not Available Price:
21 76-7960 NIPPLE - GREASE Price: $8.57
21 IH-172548 Plug, 1-1/8 Expansion (Crankcase) Price: Call Us
22 76-8020 DISCONTINUED Price: Call Us
22 KH-45-156-03 PLATE-CRAN Not Available Price:
23 76-8060 NUT Price: $2.85
23 IH-370535-R1 CLIP Not Available Price:
24 76-8040 NUT Price: $2.36
24 IH-ST436P BEARING This part replaces IH-ST436. Price: $85.97
25 76-7700 DISCONTINUED Price: Call Us
25 KH-47-032-06 SEAL Not Available Price:
26 KH-235070 GASKET Not Available Price:
27 KH-47-032-07 SEAL Not Available Price:
28 KH-237620 DIPSTICK Not Available Price:
29 KH-237623 COVER Not Available Price:
30 KH-235025-S GASKET Not Available This part replaces KH-235025. Price:
31 KH-230265 INSERT Not Available Price:
32 KH-275144 GASKET Not Available Price:
33 KH-47-199-09 BASE Not Available Price:
34 KH-235353 GASKET Not Available Price:
35 KH-A-235418-S KIT-COVER Not Available Price:
36 KH-235048 GASKET Not Available Price:
37 KH-275220 STUD Not Available Price:
38 KH-235631 PLATE Not Available Price:
39 KH-47-402-01-S BREATHER REED This part replaces KH-235047. Price: $35.99
40 KH-231032 SEAL Not Available Price:
41 KH-235118 FILTER Not Available Price:
42 KH-235117 BAFFLE Not Available Price:
44 KH-271030 GASKET Not Available Price:
45 IH-401967-R1 ELBOW Not Available Price:
46 KH-45-142-25 CRANKSHAFT KIT Not Available Price:
47 KH-X-286-17 KEY Not Available This part replaces IH-532004-R1. Price:
48 KH-237297 FLYWHEEL Not Available Price:
49 KH-231591 Pulley w/Clutch Drive Plate, Flywheel Price: $214.34
50 KH-X-60-50 SCREW, 5/16-18 x 3/8 HEX SOC HD SET (UNIT B) Not Available Price:
51 IH-452779-R2 KEY Not Available This part replaces IH-452779-R1. Price:
52 KH-41-071-03 CUP ASSEMBLY Not Available Price:
53 KH-47-755-17 KIT-SCREEN Not Available Price:
54 IH-385293-R1 PIN Not Available Price:
55 KH-45-067-22 ROD Not Available Price:
57 736-0140 Washer, Connecting Rod Price: $6.20
58 IH-117116-C1 SCREW Not Available Price:
59 KH-45-874-01 PISTON W/RINGS KIT Not Available Price:
61 KH-47-018-01 RETAINER Not Available Price:
62 KH-45-108-06 KIT-PISTON RING Not Available Price:
66 KH-45-015-09 HEAD Not Available Price:
67 KH-270889 WASHER Not Available Price:
68 KH-45-041-17 GASKET Not Available Price:
69 KH-47-010-09 CAMSHAFT Not Available Price:
70 KH-47-089-01 SPRING Not Available Price:
71 KH-47-380-09 PIN-CAMSHAFT Not Available Price:
72 KH-275066 SPACER Not Available Price:
73 KH-D-235327 TAPPET Not Available Price:
74 KH-235582 VALVE Not Available Price:
75 KH-237672 EXHAUST VALVE Not Available Price:
76 KH-235168 SPRING Not Available Price:
77 KH-52-413-01 ROTATOR-VALVE Not Available Price:
79 KH-235011-S Retainer, Spring This part replaces KH-235011. Price: $6.04
80 KH-47-755-01-S KIT-SPACER DYN.BAL Not Available This part replaces KH-47-755-01. Price:
81 KH-A-237653 LEVER Not Available Price:
82 KH-235496 GOVERNOR SPRING Not Available Price:
83 KH-235086 BRACKET Not Available Price:
84 KH-48-755-10 CLAMP Not Available Price:
85 KH-235084 BRACKET, ADJUSTING SCREW Not Available Price:
86 KH-235085-S SPACER Not Available This part replaces KH-235085. Price:
87 KH-275690 WASHER Not Available Price:
88 KH-A-235743-S GEAR Not Available Price:
89 KH-231355-S PIN Not Available This part replaces KH-231355. Price:
90 KH-A-235256-S KIT-SHAFT Not Available Price:
91 KH-235476 BUSHING Not Available Price:
92 KH-235277 ROD Not Available Price:
93 BS-93307 RETAINER Not Available Price:
94 IH-19726-R2 JOINT Not Available This part replaces IH-19726-R1. Price:
96 KH-41-519-21-S COIL-IGNITION This part replaces KH-231281. Price: $145.89
97 KH-230722-S CONDENSER This part replaces IH-62188-C1. Price: $30.51
98 KH-237625 WIRE-LEAD Not Available Price:
99 KH-275303 CLIP Not Available Price:
100 None Not used in this application
101 KH-47-150-03 Bracket & Breaker Assy This part replaces IH-62189-C1. Price: $22.85
102 KH-47-150-03 Bracket, Breaker Point Price: $22.85
103 KH-47-411-04 ROD Not Available Price:
104 KH-232535-S COVER Not Available This part replaces KH-232535. Price:
105 KH-52-041-11-S GASKET Not Available This part replaces KH-52-041-11. Price:
106 759-3333 SPARK PLUG (RH)10C Not Available This part replaces IH-H10C. Price:
107 KH-238057-S KIT-HI TENSION LEA Not Available This part replaces KH-238057. Price:
109 IH-532184-R92 BEARING Not Available This part replaces IH-532184-R91. Price:
110 KH-235373 BRACKET, MOTOR GENERATOR MOUNTING Not Available Price:
111 KH-231273-S BRACE Not Available This part replaces KH-231273. Price:
112 KH-231278-S PULLEY-GENERATOR Not Available This part replaces KH-231278. Price:
113 IH-401960-R1 Belt, Motor Generator Drive Price: $15.79
114 IH-61274-C1 MUFFLER Not Available Price:
115 KH-45-054-04 ELBOW Not Available Price:
116 None Baffle, Heat
117 None Strap, Lifting
118 KH-236559 PIN, CRANKSHAFT Not Available Price:
119 KH-235757 GASKET Not Available Price:
120 726-3016 MUFFLER CLAMP ASSEMBLY Not Available Price:
