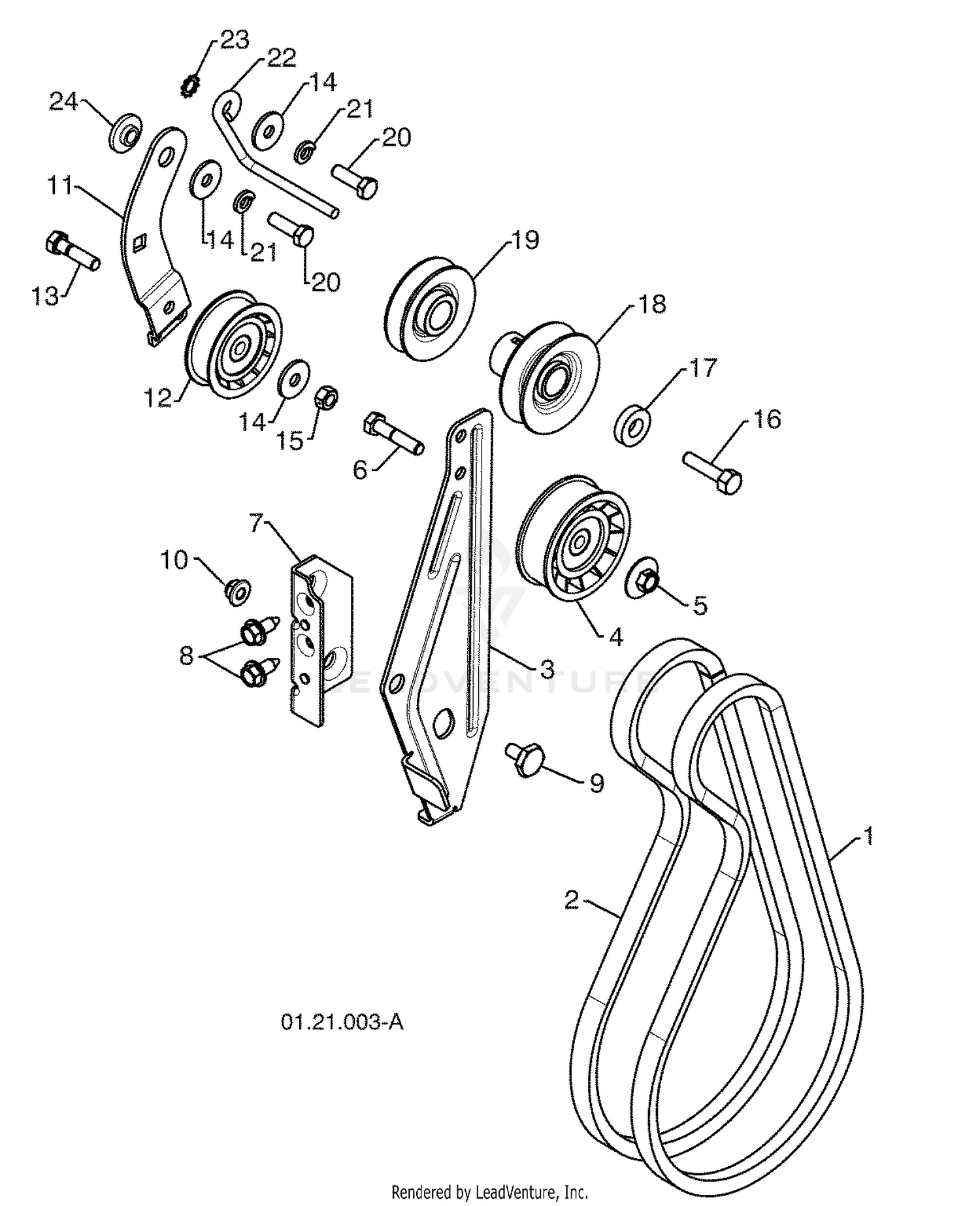

| Ref | Part Number | Description |
|---|
| 1 |
532408007 |
BELT.V.IMPELLER Price: $37.99 |
| 1 |
98-2163 |
HARNESS-WIRE, MAIN Price: $370.20 |
| 2 |
532419744 |
V-BELT TRACTION 34.25 Price: $29.99 |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC This part replaces 532429271. Price: $12.99 |
| 3 |
98-2161 |
CABLE-BATTERY, POSITIVE Price: $29.42 |
| 4 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 4 |
83-2420 |
POSITIVE CABLE ASM Price: $18.41 |
| 5 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 5 |
83-1150 |
ENGINE GROUND WIRE ASM Price: $19.40 |
| 6 |
112-0276 |
WIRE-GROUND, ENGINE This part replaces 98-2165. Price: $24.02 |
| 6 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 7 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 532429270. Price: $4.99 |
| 8 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 9 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 10 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 11 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532187786. Price: $27.99 |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 13 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 14 |
532059289 |
STEEL WASHER Price: $3.99 |
| 15 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 17 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 18 |
532426491 |
PULLEY.IMPELER. Price: $14.99 |
| 19 |
532426490 |
PULLEY.ENG.TRACTION Price: $12.99 |
| 20 |
874610516 |
SCREW Price: $3.99 |
| 21 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 22 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
