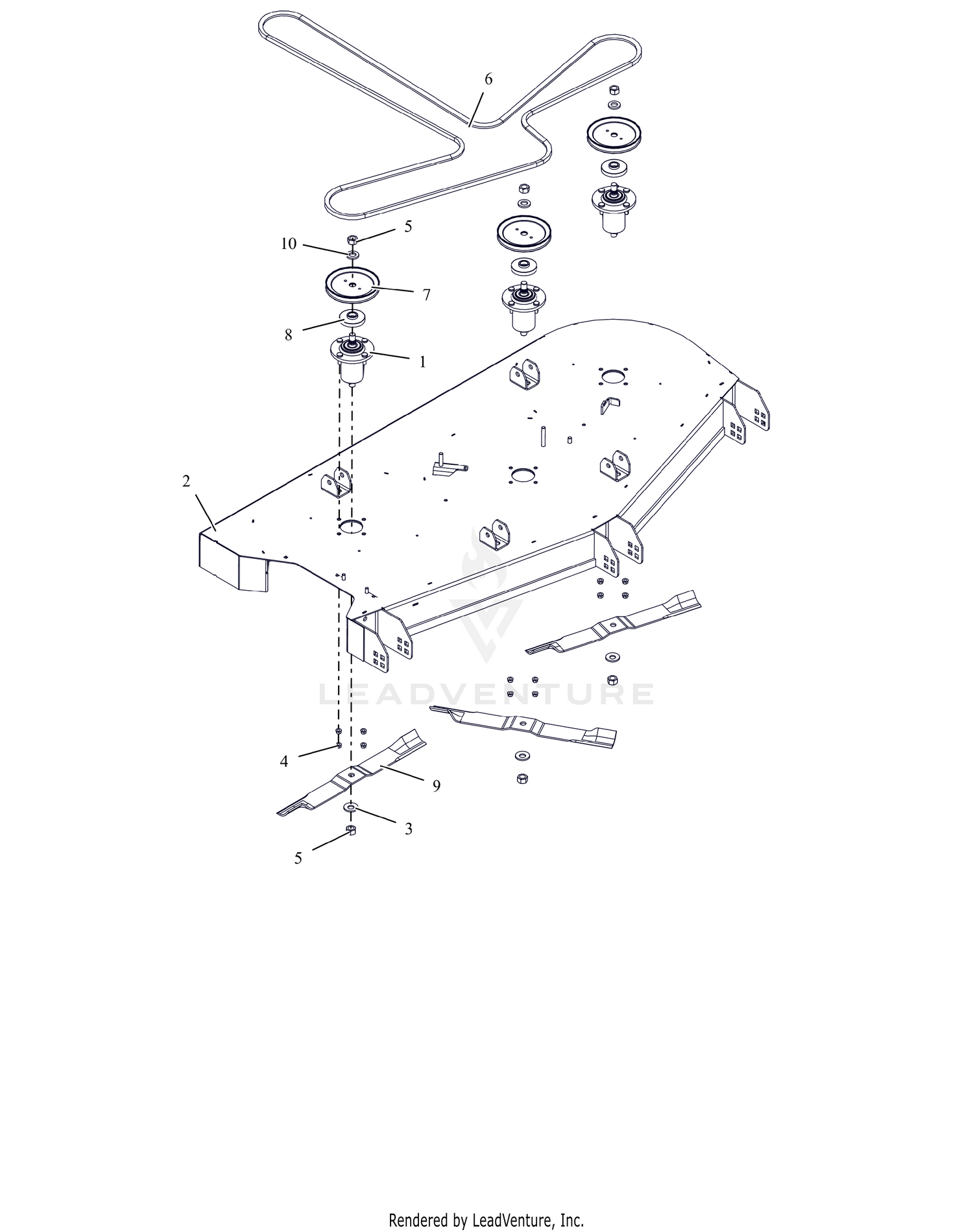

Deck, Belt, Blades and Spindles - 60"
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 30138800 | ASM, ALUMINUM SPINDLE SUB Price: $87.95 |
| 2 | 51800400 | KIT,ARIENS DECK 60" WITH DECALS Price: $611.95 |
| 3 | 06445700 | WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 4 | 06500840 | NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 5 | 06500920 | NUT-STD .625-18 ZCC Price: $1.95 |
| 6 | 07200922 | V-BELT, HA SECTION Price: $100.95 |
| 7 | 07351603 | PULLEY, V-5.75 ODX.625 SPLINE ID Price: $20.45 |
| 8 | 09482000 | SHIELD, DUST Price: $8.45 |
| 9 | 09659200 | BLADE, MOWER 20.5" Price: $24.95 |
