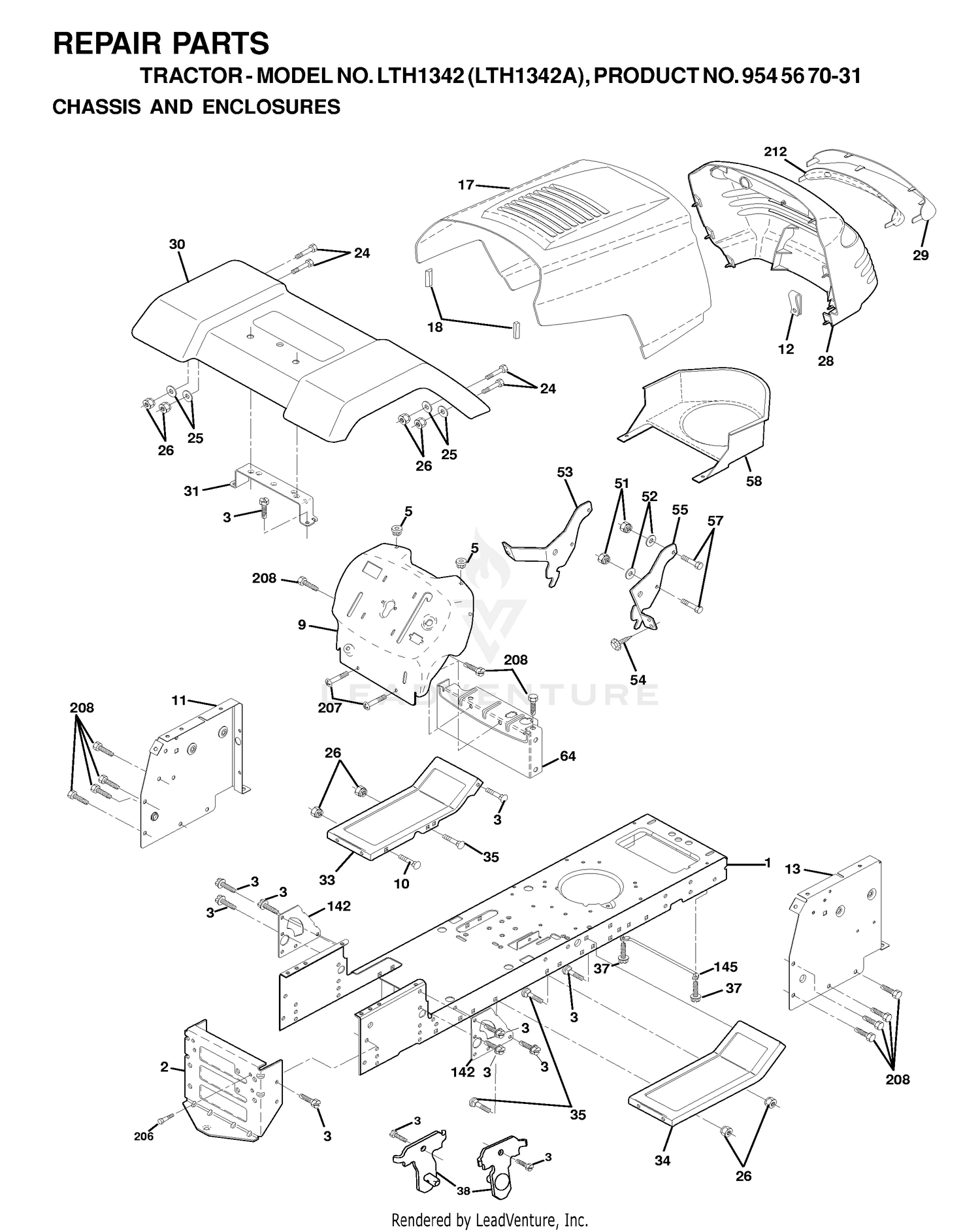

| Ref | Part Number | Description |
|---|
| 1 |
110-4751 |
CASE-AXLE Price: $382.85 |
| 2 |
532176554 |
DRAWBAR, 12GA This part replaces 532169061. Price: $37.99 |
| 2 |
99-7535 |
PLUG Price: $8.15 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 3 |
99-7536 |
WASHER-SEAL Price: $2.58 |
| 4 |
95-7527 |
GEAR-BEVEL, 17 TOOTH Price: $125.54 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
99-7532 |
BEARING-ROLLER, TAPER Price: $45.81 |
| 6 |
100-2560 |
COVER Price: $28.35 |
| 7 |
106-1070 |
O-RING Price: $9.07 |
| 8 |
99-7589 |
PLUG Price: $3.73 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 9 |
99-7590 |
WASHER-SEAL Price: $2.94 |
| 10 |
100-2562 |
BOLT Price: $2.79 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
106-1102 |
BOLT-STOP Price: $22.71 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
532173025 |
PANEL DASH RH Price: $9.92 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532179100 |
GRILL ASSEMBLY This part replaces 532143499. Price: $169.99 |
| 29 |
532140273 |
LENS This part replaces 532168154. Price: $16.99 |
| 30 |
532175274 |
FENDER This part replaces 532176953. Price: $107.99 |
| 31 |
532136619 |
BRACKET FENDER Price: $4.99 |
| 33 |
532147203 |
FOOT REST LH Price: $9.15 |
| 34 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532147202. Price: $9.15 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
